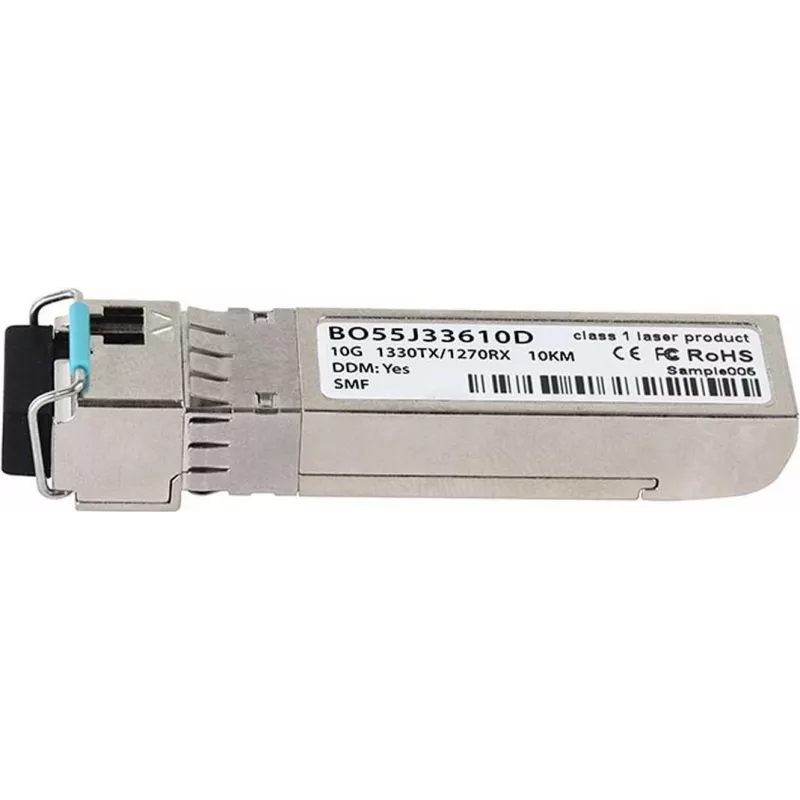

Fiber optic SFP+ transceiver CBO UF-SM-10G-S-1330-BO 10 Gbit/s 1330 nm single-mode

The CBO UF-SM-10G-S-1330-BO is a fiber optic SFP+ transceiver engineered for 10 Gbit/s transmission over single-mode fiber at a 1330 nm wavelength. It offers a compact, hot-pluggable form factor that fits standard SFP+ ports on switches, routers and servers, enabling high-speed optical links for data center uplinks, metro networks and enterprise backbones. The module is intended to provide straightforward installation and consistent optical performance for point-to-point and uplink connections.

Advantages

This SFP+ transceiver supports 10 Gbit/s line rate with single-mode fiber at 1330 nm, delivering stable optical transmission suitable for long-reach links. Its hot-swappable design allows installation or replacement without powering down connected equipment. The compact SFP+ form factor maximizes port density in networking hardware, while compatibility with standard SFP+ interfaces ensures broad interoperability with switches, routers and servers that accept SFP+ modules.

Suitable for

• Data center uplinks and aggregation links
• Enterprise backbone and campus network interconnects
• Metro area fiber links and service provider connections
• High-speed server-to-switch or switch-to-switch links

Key specifications

• Data rate: 10 Gbit/s
• Fiber type: single-mode fiber
• Wavelength: 1330 nm
• Form factor: SFP+ (hot-pluggable)
• Typical application: short to long-reach optical links over single-mode fiber

How to use

Insert the transceiver into an available SFP+ slot on the network device until it clicks into place, then connect the single-mode fiber cable using the appropriate connector. Ensure the connected device recognizes the module and configure link settings on the switch or router as required for 10 Gbit/s operation. When removing the module, power down or logically disable the port if needed, then press the release tab and pull the transceiver straight out to avoid damaging the socket or fiber connectors.

Recommendations

Use low-loss single-mode fiber certified for the target reach and maintain clean optical connectors to ensure reliable performance. Verify compatibility with the host device's SFP+ interface and firmware; consult device documentation for recommended module support. Handle the transceiver by the housing, avoid touching the optical interface, and store dust caps on unused ports.
