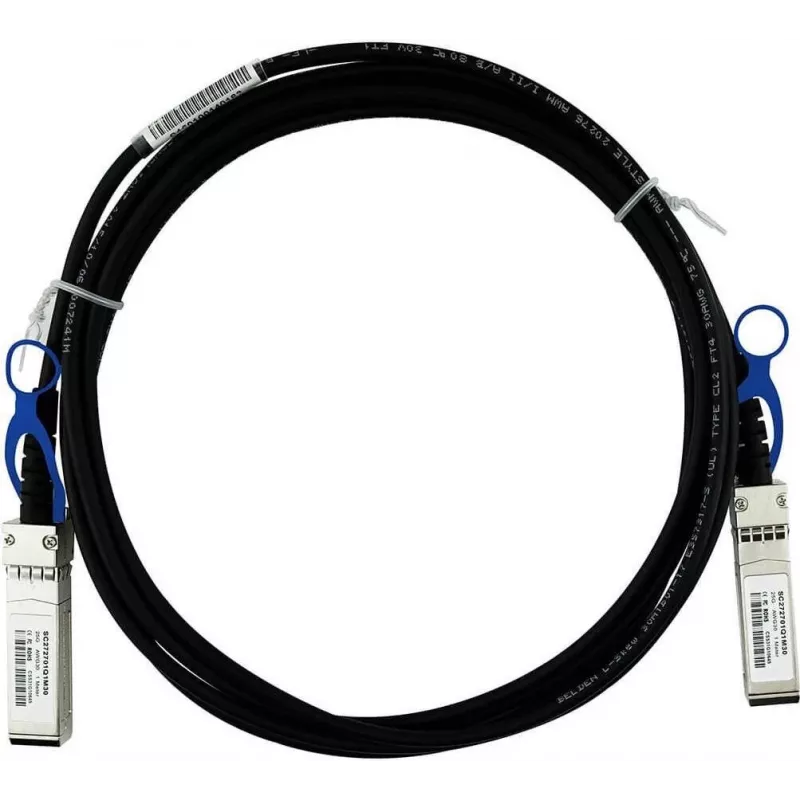

BlueOptics Extreme Networks 10552 Compatible BlueLAN 25GBASE-CR Passive SFP28 to SFP28 Direct Attach Cable, 5m, AWG26 (10552-BL)

The BlueOptics 10552-BL is a high-performance, passive Direct Attach Cable (DAC) designed for 25 Gigabit Ethernet connectivity. It is fully compatible with Extreme Networks 10552 series switches and provides a cost-effective, low-power solution for short-range interconnects in data centers and enterprise networks.

Advantages

This cable offers reliable 25 Gbps data transmission over a 5-meter length with minimal power consumption (<0.1W). Its passive twinax design ensures zero latency and low signal loss, making it ideal for high-density environments. The SFP28 connectors are hot-swappable and compliant with industry standards SFF-8402, SFF-8431, and SFF-8472.

Suitable for

• Data center server-to-switch interconnects
• 25 Gigabit Ethernet networks
• High-performance computing clusters
• Storage area networks (SAN)

Key specifications

• Product Type: Direct Attach Cable (DAC)
• Data Rate: 25 Gbps
• Cable Standard: 25GBASE-CR
• Cable Type: Passive Twinax
• Connector Type: SFP28 to SFP28
• Cable Length: 5 meters (16.4 ft)
• Wire Gauge: AWG26
• Impedance: 100 Ohm
• Operating Temperature: 0°C to 70°C (32°F to 158°F)
• Storage Temperature: -40°C to 85°C (-40°F to 185°F)
• Power Consumption: <0.1W
• Compliance: RoHS

Recommendations

For optimal performance, use this cable with Extreme Networks 10552 compatible SFP28 ports. Ensure proper handling to avoid damage to connectors. This cable is a direct replacement for OEM part 10552.
