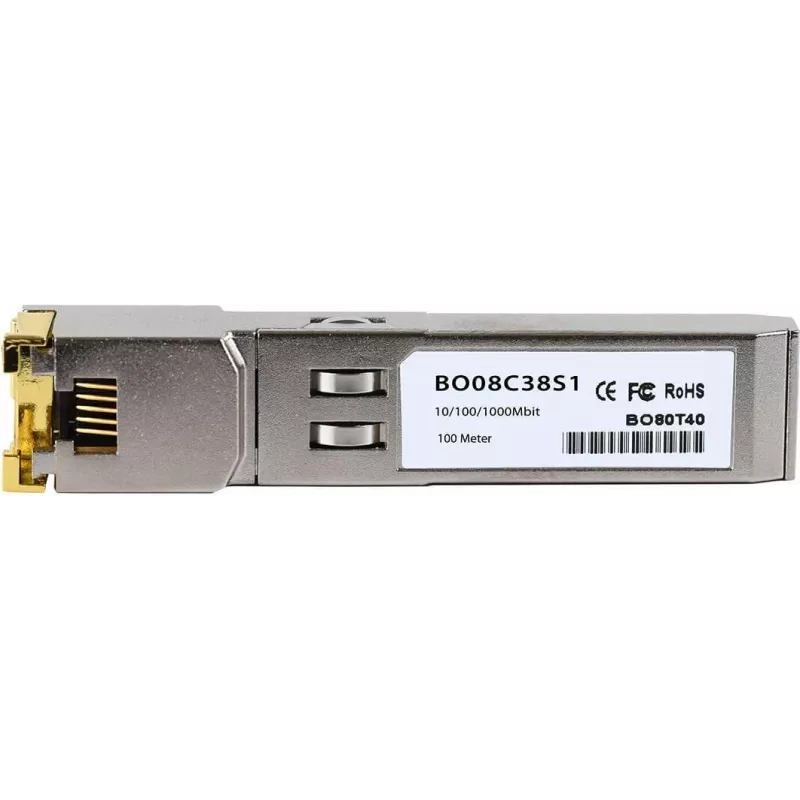

Copper SFP Transceiver CBO ABCU-5731ARZ — SFP module for copper Ethernet connections

CBO ABCU-5731ARZ is a copper SFP transceiver module designed to provide reliable copper Ethernet connectivity through standard SFP ports. The module fits into SFP slots on switches, routers and other network devices, enabling short-distance 10/100/1000 Mbps connections over twisted-pair copper cabling. Its compact SFP form factor makes it suitable for equipment that requires hot-pluggable copper uplinks without modifying existing chassis or port density.

Advantages

The copper SFP transceiver delivers straightforward interoperability with devices that support standard SFP copper modules, simplifying upgrades and network reconfiguration. Its hot-pluggable design allows installation or replacement without powering down compatible equipment. The module supports common Ethernet speeds for short-range links over Cat5e/Cat6 cabling and is optimized for compact network deployments that require flexible port options.

Suitable for

• Short-distance uplinks between switches and routers over copper cabling
• Adding copper ports to devices with available SFP slots
• Temporary or permanent connections in server rooms and network closets
• Environments where hot-swappable SFP modules are required

Key specifications

• Form factor: SFP (small form-factor pluggable)
• Media: 1000BASE-T / 100BASE-TX / 10BASE-T Ethernet over twisted-pair copper
• Interface: RJ45 copper connector for twisted-pair cable
• Supported cabling: Cat5e, Cat6 (short-distance links)
• Data rates: 10/100/1000 Mbps auto-negotiation
• Hot-pluggable: yes
• Typical use range: short-range links within premises (LAN)

How to use

Insert the SFP copper transceiver into an available SFP slot on a compatible switch, router or network device until it engages. Connect a twisted-pair Ethernet cable to the module’s RJ45 port and to the remote device or patch panel. The device should detect the module and negotiate the appropriate Ethernet speed automatically. If necessary, configure port settings from the host device’s management interface to match network policies or VLAN assignments. For module removal, release any retention mechanism and pull the module straight out while the host device supports hot-swap operation.

Recommendations

Use quality Cat5e or Cat6 cabling and proper patching practices to ensure reliable link performance. Verify that the host device supports SFP copper transceivers and check port configuration after installation. For critical connections, test link integrity and monitor for speed/duplex mismatches through the switch or router management interface.
