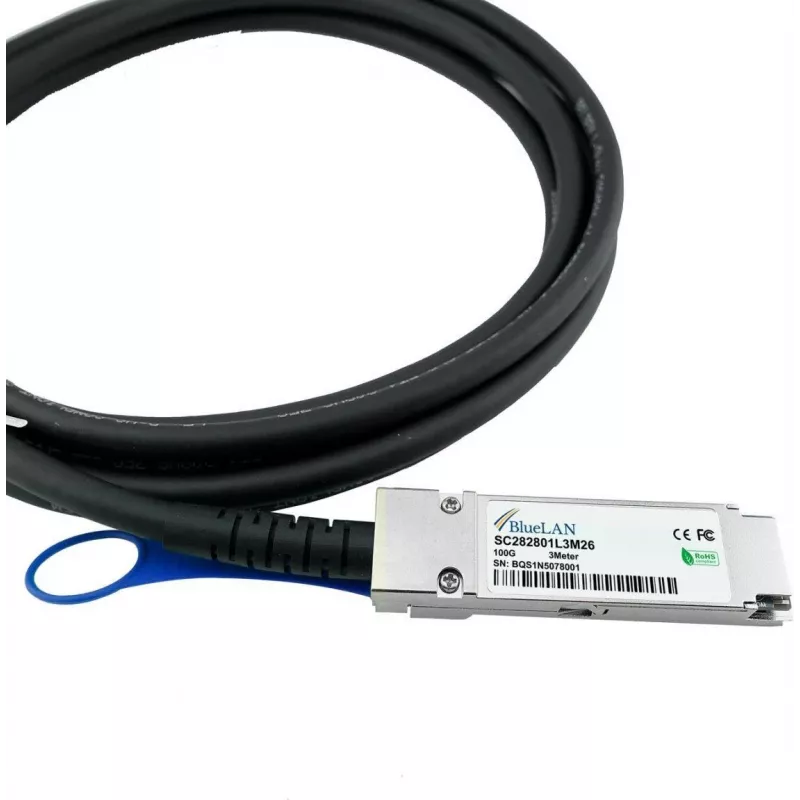

BlueOptics Compatible Palo Alto Networks PAN-QSFP28-DAC-3M BlueLAN SC282801L3M26 QSFP28 Direct Attach Cable, 100GBASE-CR4, Infiniband EDR, 26AWG, 3 Meter (PAN-QSFP28-DAC-3M-BL)

The BlueOptics PAN-QSFP28-DAC-3M-BL is a high-performance, passive direct attach copper cable designed for seamless integration with Palo Alto Networks equipment. This QSFP28 to QSFP28 cable delivers 100 Gbps data rates, supporting 100GBASE-CR4 Ethernet and InfiniBand EDR standards. With a length of 3 meters and 26 AWG wire gauge, it provides reliable, low-latency connectivity for data center and high-performance computing environments.

Advantages

This cable offers cost-effective, low-power connectivity without compromising performance. Its passive design ensures zero power consumption, while MSA compliance guarantees interoperability with standard QSFP28 ports. The hot-swappable form factor simplifies installation and maintenance, making it ideal for high-density deployments.

Suitable for

• Data center interconnects
• High-performance computing (HPC) clusters
• Enterprise networking upgrades
• Palo Alto Networks compatible systems

Key specifications

• Cable Type: Direct Attach Cable (DAC)
• Connector Type: QSFP28 to QSFP28
• Data Rate: 100 Gbps
• Ethernet Standard: 100GBASE-CR4
• InfiniBand Support: EDR
• Cable Length: 3 Meter
• Wire Gauge: 26 AWG
• Compatibility: Palo Alto Networks PAN-QSFP28-DAC-3M
• Product Type: Passive Copper Cable
• MSA Compliant: Yes
• Hot-Swappable: Yes
• Power Consumption: < 0.5W typical
• Impedance: 100 Ohm
• Operating Temperature: 0°C to 70°C
• Storage Temperature: -40°C to 85°C
• Voltage Supply: 3.3 V
• Transmission Medium: Copper
• Form Factor: QSFP28
• RoHS Compliant: Yes

Recommendations

For optimal performance, ensure your network equipment supports QSFP28 ports and 100GBASE-CR4 or InfiniBand EDR. This cable is an ideal choice for upgrading to 100G connectivity in a cost-effective manner.
