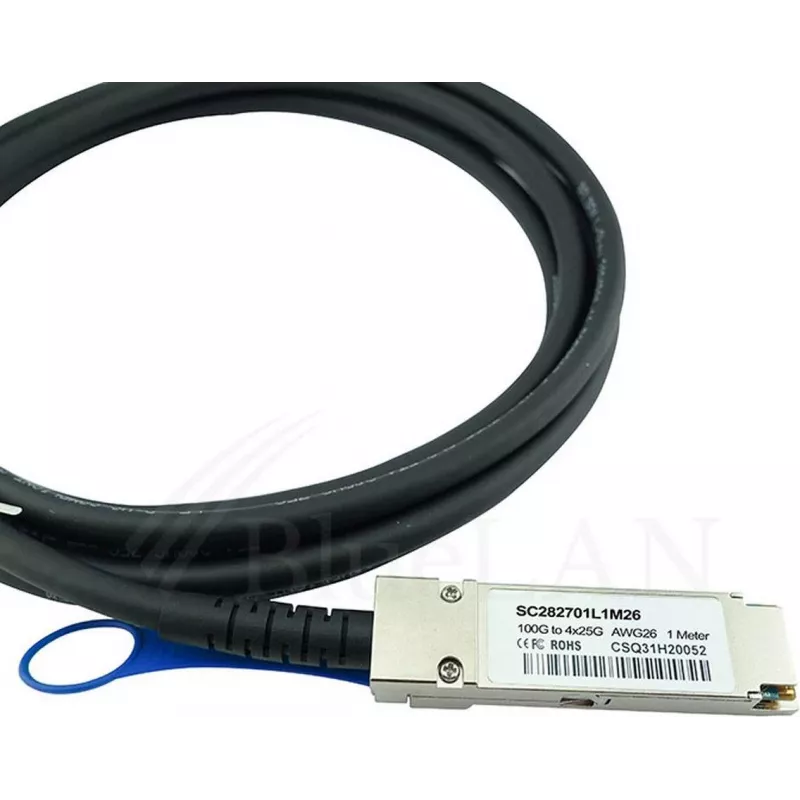

BLUEOPTICS Compatible Dell EMC DAC-QSFP-4SFP-10G-1M BlueLAN Passive 100GBASE-CR4 QSFP28 to 4x25GBASE-CR SFP28 Direct Attach Breakout Cable, 1m, AWG26

The BLUEOPTICS DAC-QSFP-4SFP-10G-1M-BL is a high-performance passive direct attach breakout cable designed for Dell EMC compatible networking environments. It enables seamless connectivity from a QSFP28 port to four SFP28 ports, supporting aggregate data rates of 100 Gbps. Ideal for data centers and high-performance computing, this cable ensures reliable, low-latency transmission.

Advantages

Cost-effective and energy-efficient passive copper design with zero power consumption. Hot-swappable for easy installation and maintenance. Compliant with industry standards SFF-8665 and SFF-8402 for broad compatibility.

Suitable for

• Data center top-of-rack to server connections
• High-performance computing clusters
• Enterprise networking upgrades to 100G

Key specifications

• Product Type: Direct Attach Breakout Cable (DAC)
• Cable Length: 1 Meter
• Wire Gauge: 26 AWG
• Aggregate Data Rate: 100 Gbps
• Per Lane Data Rate: 25 Gbps
• Connector A: QSFP28
• Connector B: 4x SFP28
• Ethernet Standard: 100GBASE-CR4 (End A), 4x 25GBASE-CR (End B)
• Cable Type: Passive Copper
• Compatibility: Dell EMC (Compatible)
• Form Factor: QSFP28 to 4x SFP28
• Application: High-Speed Data Networking, Data Centers, HPC
• Protocol Support: Ethernet
• Hot Swappable: Yes
• Power Consumption: 0W (Passive)
• Industry Standards: SFF-8665 (QSFP28), SFF-8402 (SFP28)

Recommendations

For optimal performance, pair this cable with compatible Dell EMC switches and network adapters. Ensure proper handling to avoid damage to connectors.
