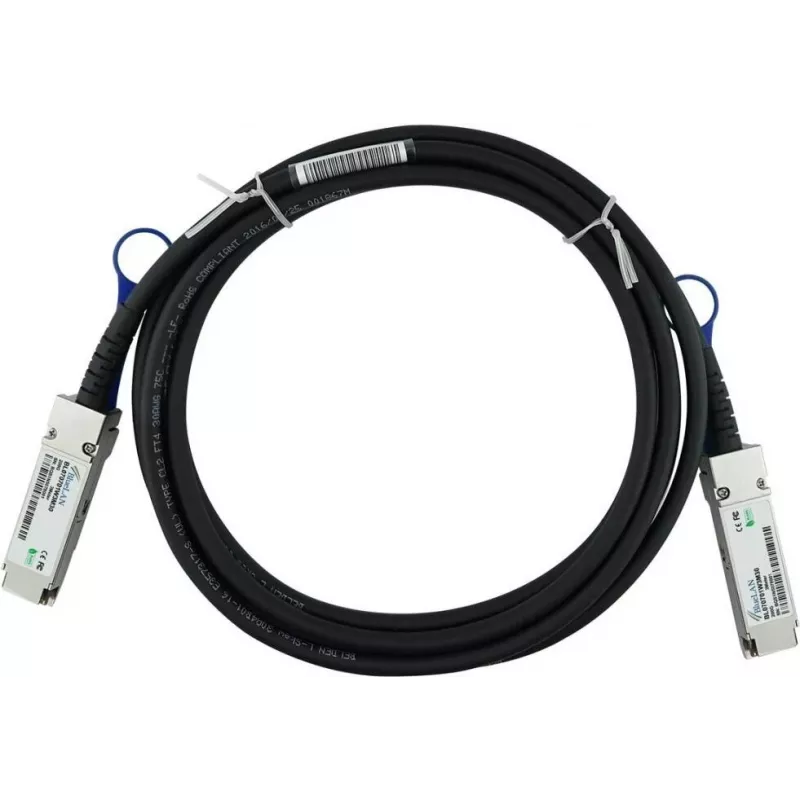

BlueOptics CBL-NTWK-0956-QSFP56-2 Compatible BlueLAN DAC QSFP56 2m 200Gbps Passive Copper Cable

The BlueOptics CBL-NTWK-0956-QSFP56-2 is a high-performance, passive copper Direct Attach Cable (DAC) designed for 200 Gigabit Ethernet connectivity. This cable is compatible with BlueLAN BL070701W2M30 and other QSFP56 MSA compliant devices, making it an ideal solution for data center interconnects and high-performance computing environments.

Advantages

This DAC cable offers a cost-effective and low-power alternative to optical transceivers, with a power consumption of less than 0.1W. It supports hot swapping, ensuring minimal downtime during maintenance or upgrades. The 30 AWG construction provides flexibility and durability for easy cable management.

Suitable for

• Data center interconnects
• High-performance computing (HPC) clusters
• Enterprise networking
• Top-of-rack to server connections

Key specifications

• Product Type: Direct Attach Cable (DAC)
• Cable Type: Copper
• Connector Type (End A): QSFP56
• Connector Type (End B): QSFP56
• Data Rate: 200 Gbps
• Ethernet Standard: 200GBASE-CR4
• Cable Length: 2 meters
• Cable Gauge: 30 AWG
• Cable Configuration: Passive
• Compatibility: BlueLAN BL070701W2M30 and other QSFP56 MSA compliant devices
• Hot Swappable: Yes
• Power Consumption: < 0.1W
• Impedance: 100 Ohm
• MSA Compliance: SFF-8665 (QSFP56 MSA)
• RoHS Compliant: Yes
• Application: Data Center Interconnect, High-Performance Computing (HPC), Enterprise Networking
• Signaling Technology: 4x 50Gbps PAM4

Recommendations

For optimal performance, ensure that both ends of the cable are connected to QSFP56 ports that support 200GBASE-CR4. This cable is ideal for short-reach, high-bandwidth connections within racks or between adjacent racks.
