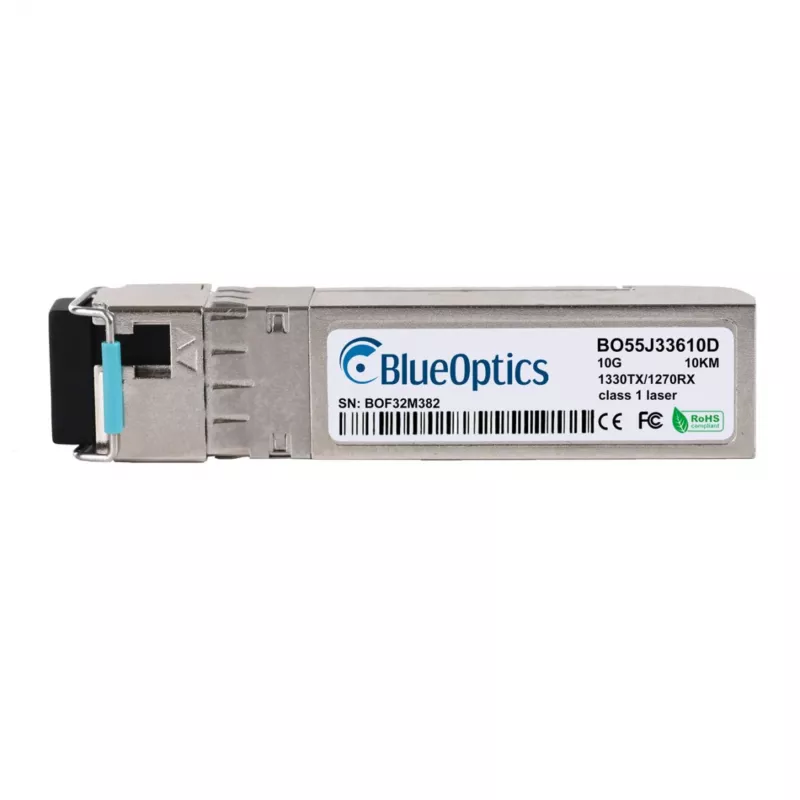

BlueOptics BO55J33610D Compatible Ruckus 10G-SFPP-BXD-S-RU SFP+ Bidi Transceiver, LC Simplex, 10GBASE-BX, 10 km, Single-mode Fiber

The BlueOptics BO55J33610D is a high-performance SFP+ Bi-directional (Bidi) transceiver designed for 10 Gigabit Ethernet networking. It is fully compatible with Ruckus 10G-SFPP-BXD-S-RU equipment, offering a cost-effective and reliable solution for extending network reach over single-mode fiber.

Advantages

This transceiver delivers 10 Gbps data rates over a single LC simplex connector, utilizing 1270 nm transmit and 1330 nm receive wavelengths. With a reach of up to 10 km, it is ideal for long-distance connections in enterprise and data center environments. The hot-swappable design ensures minimal downtime during installation or replacement, while DDM/DOM support provides real-time monitoring of optical parameters.

Suitable for

• 10 Gigabit Ethernet networks requiring Bidi transceivers
• Ruckus switches and routers with SFP+ ports
• Single-mode fiber backbone connections up to 10 km
• Enterprise, data center, and service provider deployments

Key specifications

• Form Factor: SFP+
• Data Rate: 10 Gbps
• Connector Type: LC Simplex
• Fiber Type: Single-mode Fiber (SMF)
• Wavelength: TX 1270 nm / RX 1330 nm
• Max Distance: 10 km
• Protocol: 10GBASE-BX
• DDM/DOM: Yes
• Power Consumption: < 1.0 W
• Operating Temperature: 0°C to 70°C
• Compliance: MSA, RoHS

Recommendations

For optimal performance, pair this transceiver with a compatible Bidi transceiver at the other end (e.g., 1330 nm TX / 1270 nm RX). Ensure your network equipment supports SFP+ Bidi modules and single-mode fiber.
