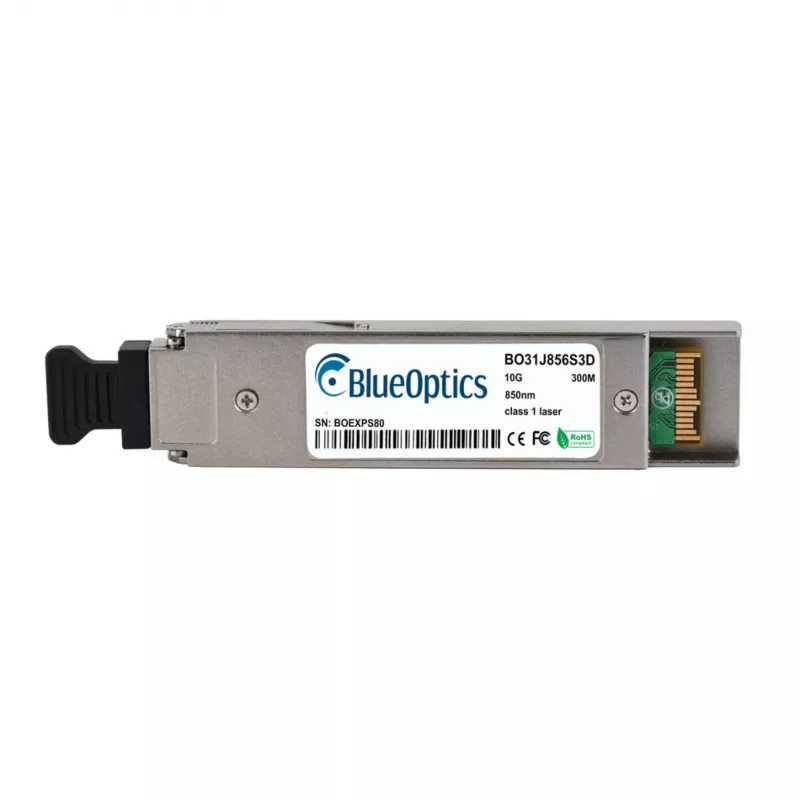

BlueOptics BO31J856S3D Compatible Ruckus 10G-XFP-SR XFP Transceiver, LC Duplex, 10GBASE-SR, Multimode

The BlueOptics BO31J856S3D is a high-performance XFP transceiver designed for 10 Gigabit Ethernet networks. It is fully compatible with Ruckus 10G-XFP-SR equipment, offering a cost-effective solution for expanding your network infrastructure. This transceiver supports 10GBASE-SR over multimode fiber with LC duplex connectors, delivering reliable data transmission at distances up to 300m on OM3 fiber and 400m on OM4 fiber.

Advantages

This BlueOptics transceiver provides seamless compatibility with Ruckus systems, ensuring easy integration and reliable performance. It features Digital Diagnostics Monitoring (DDM) for real-time monitoring of operating parameters, and is hot-swappable for minimal network downtime. With low power consumption under 2.5W and a robust metal housing, it offers durability and efficiency for demanding network environments.

Suitable for

• 10 Gigabit Ethernet connections in data centers and enterprise networks
• Ruckus networking equipment requiring XFP transceivers
• Short-range multimode fiber links up to 400 meters
• High-speed backbone and server connectivity

Key specifications

• Form Factor: XFP
• Data Rate: 10 Gbps
• Wavelength: 850 nm
• Connector Type: LC Duplex
• Fiber Type: Multimode (MMF)
• Max Distance: 300m (OM3), 400m (OM4)
• DDM/DOM Support: Yes
• Hot-Swappable: Yes
• Power Consumption: < 2.5W
• Operating Temperature: 0°C to 70°C
• Standards: IEEE 802.3ae 10GBASE-SR, XFP MSA
• Certifications: CE, FCC, RoHS

Recommendations

For optimal performance, use with OM3 or OM4 multimode fiber cables and ensure proper handling of the LC connectors. This transceiver is a direct replacement for the Ruckus 10G-XFP-SR and is backed by BlueOptics' quality assurance.
