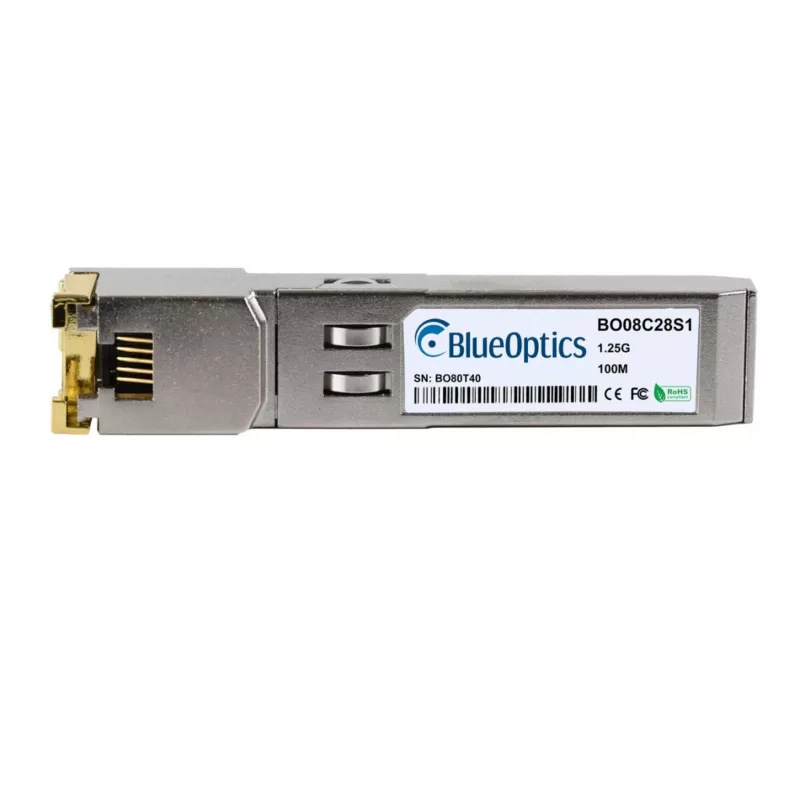

BlueOptics BO08C28S1 SFP Transceiver Module 1Gbps RJ45 100m Compatible with TP-Link TL-SM331T

The BlueOptics BO08C28S1 is a high-performance SFP transceiver module designed for Gigabit Ethernet over copper networks. It is fully compatible with TP-Link TL-SM331T and other multi-vendor switches, routers, and network interface cards. This hot-pluggable module supports 1000BASE-T standard, delivering reliable data transmission up to 100 meters over Cat5e, Cat6, or Cat7 UTP/STP cables.

Advantages

Cost-effective and energy-efficient (<1.0 W power consumption) solution for upgrading or expanding your network infrastructure. With Digital Diagnostic Monitoring (DDM/DOM), you can monitor real-time operating parameters for proactive network management. The module is CE, FCC, and RoHS certified, ensuring compliance with international standards.

Suitable for

• Enterprise and data center networks requiring Gigabit Ethernet connectivity
• Replacing or expanding SFP ports on TP-Link TL-SM331T and compatible switches
• Short-range copper links up to 100 meters
• Applications needing hot-pluggable, low-power transceivers

Key specifications

• Form Factor: SFP
• Data Rate: 1 Gbps
• Interface: 1000BASE-T
• Connector: RJ-45
• Max Distance: 100 m
• Cable: Cat5e, Cat6, Cat7 UTP/STP
• Power Consumption: <1.0 W
• Operating Temperature: 0°C to 70°C
• MTBF: >500,000 hours
• Compliance: IEEE 802.3ab

Recommendations

For optimal performance, use with high-quality Cat6 or Cat7 cables. Ensure the host device supports SFP modules and DDM if monitoring is required. This module is a direct replacement for TP-Link TL-SM331T and is also compatible with Cisco, Juniper, HP, D-Link, and other brands.
