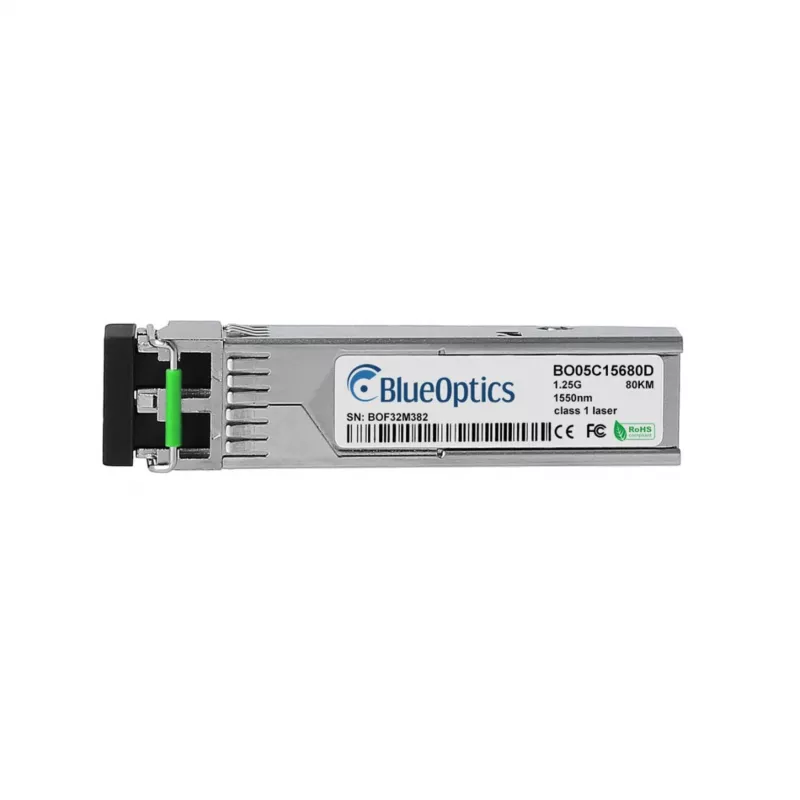

BlueOptics BO05C15680D Compatible Synology SFP-1G-ZX SFP Transceiver, LC Duplex, 1000BASE-ZX, Single-Mode Fiber, 70 km

The BlueOptics BO05C15680D is a high-performance SFP transceiver designed as a compatible replacement for the Synology SFP-1G-ZX module. It delivers reliable Gigabit Ethernet connectivity over single-mode fiber, supporting distances up to 70 km. Ideal for long-reach network links in data centers and enterprise environments.

Advantages

Cost-effective alternative to OEM modules with full compatibility and performance. Hot-swappable design simplifies installation and maintenance. Digital Diagnostic Monitoring (DDM) enables real-time monitoring of optical parameters for proactive network management.

Suitable for

• Long-reach Gigabit Ethernet connections up to 70 km
• Data center interconnects
• Enterprise network backbone links
• Synology NAS systems requiring SFP-1G-ZX compatibility

Key specifications

• Form Factor: SFP
• Data Rate: 1.25 Gbps
• Ethernet Standard: 1000BASE-ZX
• Wavelength: 1550 nm
• Max Distance: 70 km (43.5 miles)
• Fiber Type: Single-Mode Fiber (SMF)
• Connector Type: LC Duplex
• DDM/DOM Support: Yes
• Compatibility: Synology SFP-1G-ZX
• Laser Type: DFB
• Operating Temperature: 0°C to 70°C
• Power Consumption: <1.0 W
• Hot-Swappable: Yes
• Power Supply: 3.3V
• Protocol: Gigabit Ethernet
• Compliance: IEEE 802.3z
• Certifications: CE, FCC, RoHS

Recommendations

For optimal performance, use with single-mode fiber optic cables and ensure proper cleaning of LC connectors. This transceiver is a direct replacement for Synology SFP-1G-ZX and is fully tested for compatibility.
