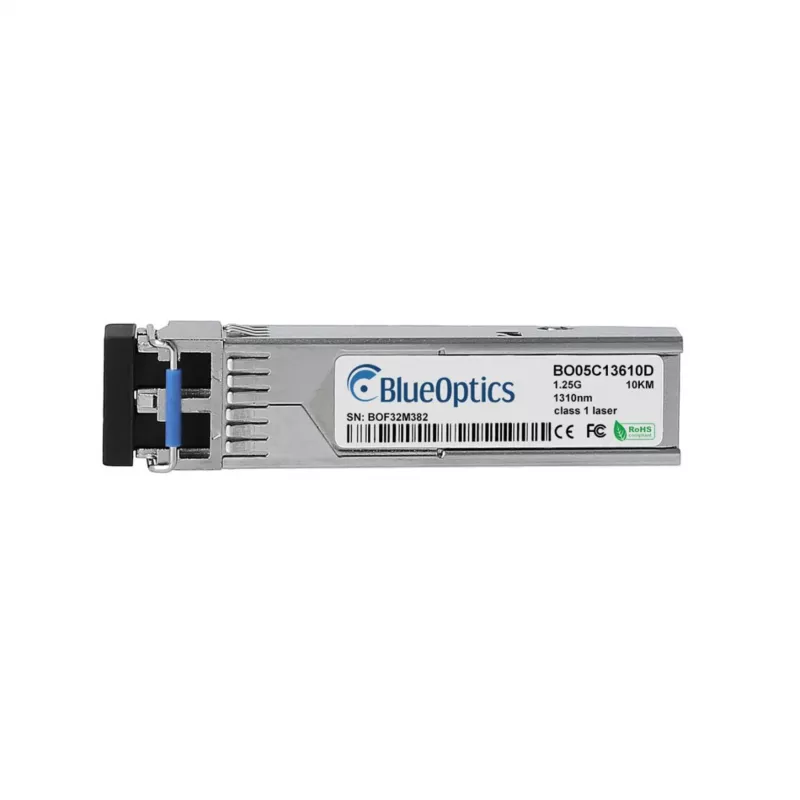

BlueOptics BO05C13610D Compatible Ruckus E1MG-LX-OM-T SFP Transceiver, 1000BASE-LX, LC Duplex, Single-Mode, 10 km

The BlueOptics BO05C13610D SFP transceiver is a high-performance, cost-effective solution designed to be fully compatible with Ruckus E1MG-LX-OM-T equipment. It delivers reliable Gigabit Ethernet connectivity over single-mode fiber, supporting distances up to 10 km. This hot-swappable module features LC duplex connectors and operates at a wavelength of 1310 nm, making it ideal for enterprise and data center networks.

Advantages

This transceiver offers seamless integration with Ruckus switches and routers, ensuring network stability and performance. With Digital Diagnostics Monitoring (DDM) support, real-time monitoring of optical parameters is possible, aiding in proactive network management. The metal housing provides durability and effective heat dissipation, while MSA compliance guarantees interoperability with other SFP slots.

Suitable for

• Gigabit Ethernet connections in enterprise LANs and campus networks
• Fiber-to-the-desk and backbone applications
• Data center interconnects and storage area networks
• Telecommunications and service provider networks

Key specifications

• Form Factor: SFP (Small Form-Factor Pluggable)
• Data Rate: 1.25 Gbps
• Ethernet Standard: 1000BASE-LX
• Connector Type: LC Duplex
• Fiber Type: Single-Mode Fiber (SMF)
• Wavelength: 1310 nm
• Max Cable Distance: 10 km (6.2 miles)
• Digital Diagnostics Monitoring (DDM): Yes
• Hot-Swappable: Yes
• Transmitter Type: DFB Laser
• Receiver Type: PIN Photodiode
• Power Consumption: < 1.0 W
• Operating Temperature: 0°C to 70°C (32°F to 158°F)
• Supply Voltage: 3.3 V
• Compliance: MSA Compliant, RoHS, CE, FCC

Recommendations

For optimal performance, use with single-mode fiber optic cables terminated with LC connectors. Ensure the SFP slot is clean before insertion. This transceiver is a direct replacement for the Ruckus E1MG-LX-OM-T and is backed by BlueOptics' quality assurance.
