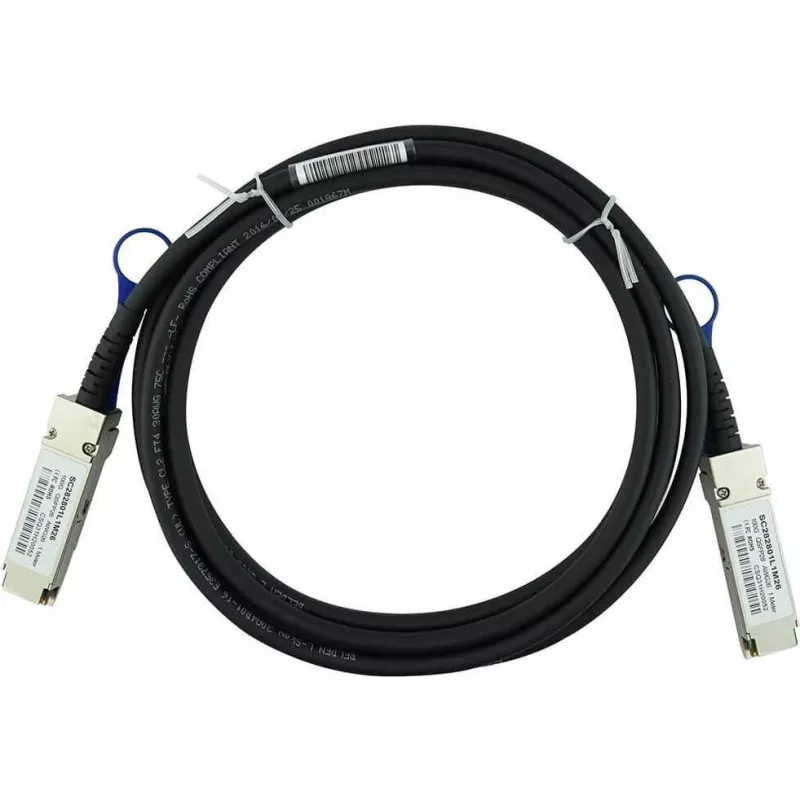

BlueOptics BlueLAN 00MP516-BL Compatible Passive DAC QSFP28 Cable 0.5m Black

The BlueOptics BlueLAN 00MP516-BL is a high-performance passive Direct Attach Copper (DAC) cable designed for 100 Gigabit Ethernet and InfiniBand applications. This 0.5-meter QSFP28 to QSFP28 cable is a cost-effective, compatible alternative to the Lenovo 00MP516, delivering reliable connectivity for data center and enterprise networking environments.

Advantages

This passive DAC cable offers low power consumption (<0.1W), hot-swappable convenience, and MSA compliance, ensuring seamless integration with existing network infrastructure. The 30AWG copper twinax construction provides excellent signal integrity over short distances, while the PVC jacket ensures durability and flexibility for easy cable management.

Suitable for

• Data center interconnects
• High-performance computing (HPC) clusters
• Enterprise networking and server rooms
• Lenovo 00MP516 compatible systems

Key specifications

• Cable Type: Direct Attach Cable (DAC) Passive Copper
• Connector Type: QSFP28 to QSFP28
• Data Rate: 100 Gigabit Ethernet (100GbE)
• Length: 0.5 meters (1.64 ft)
• AWG: 30AWG
• Protocol Support: Ethernet, InfiniBand
• Power Consumption: <0.1W
• Operating Temperature: 0°C to 70°C (32°F to 158°F)
• Jacket Material: PVC
• RoHS Compliant: Yes

Recommendations

For optimal performance, ensure that both connected devices support QSFP28 interfaces and 100GbE standards. This cable is ideal for short-reach, high-speed connections within racks or between adjacent racks.
