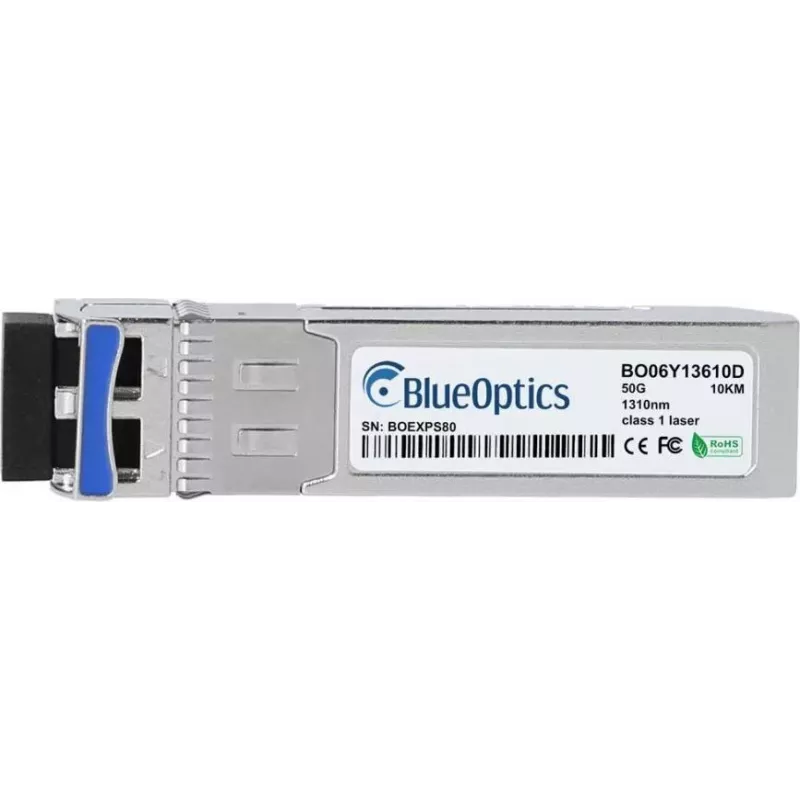

BlueOptics Alcatel-Lucent SFP-50G-LR-S SFP56 Transceiver, LC Duplex, 50GBASE-LR, Singlemode Fiber, 1310nm, 10 km

The BlueOptics SFP-50G-LR-S-AL-BO is a high-performance SFP56 transceiver designed for 50 Gigabit Ethernet applications. It is fully compatible with Alcatel-Lucent equipment and supports 50GBASE-LR over singlemode fiber with a reach of up to 10 km. This transceiver features a hot-pluggable LC duplex interface, digital diagnostic monitoring (DDM), and operates in a temperature range of 0°C to 70°C. Ideal for data center and enterprise network upgrades, it delivers reliable, high-speed connectivity with low power consumption.

Advantages

This transceiver offers seamless integration into existing Alcatel-Lucent networks, ensuring cost-effective scalability to 50 Gbps. With MSA compliance and rigorous testing, it guarantees interoperability and performance. The DDM function allows real-time monitoring of optical parameters for proactive network management.

Suitable for

• Data center interconnects
• Enterprise network backbone
• Telecommunications infrastructure
• High-speed storage area networks

Key specifications

• Form Factor: SFP56
• Data Rate: 50 Gbps
• Ethernet Standard: 50GBASE-LR
• Wavelength: 1310 nm
• Max Reach: 10 km (6.2 miles)
• Fiber Type: Singlemode Fiber (SMF)
• Connector Type: LC Duplex
• Compatibility: Alcatel-Lucent (OEM SFP-50G-LR-S)
• Operating Temperature: 0°C to 70°C (32°F to 158°F)
• DDM/DOM Support: Yes
• Hot-Swappable: Yes
• Compliance: MSA Compliant
• Power Consumption: < 1.5W (Typical)
• Voltage: 3.3V
• Laser Type: DFB Laser

Recommendations

For optimal performance, use with singlemode fiber patch cables (OS2) and ensure proper cleaning of optical connectors. This transceiver is a direct replacement for Alcatel-Lucent SFP-50G-LR-S modules.
