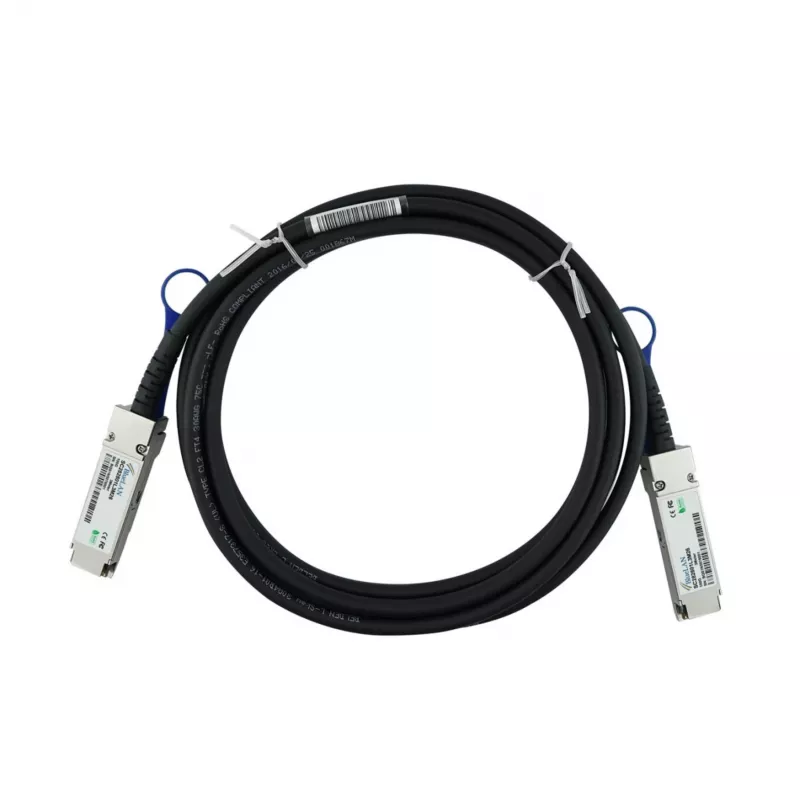

BLUELAN Compatible Synology QSFP28-DAC-3M Direct Attach Copper Cable, 100GBASE-CR4, Infiniband EDR, 26AWG, 3 metres

The BLUELAN QSFP28-DAC-3M-SG-BL is a high-performance, passive Direct Attach Copper (DAC) cable designed for 100 Gigabit Ethernet and InfiniBand EDR applications. This 3-metre cable is fully compatible with Synology and other QSFP28-enabled devices, providing a cost-effective and reliable interconnect solution for data centres and high-performance computing environments.

Advantages

This DAC cable offers low power consumption (<0.5W), hot-swappable capability, and a durable PVC jacket. It supports 100GBASE-CR4 and InfiniBand EDR standards, ensuring high-speed data transfer with minimal latency. The 26 AWG construction guarantees signal integrity over the 3-metre length.

Suitable for

• Data centre top-of-rack to server/storage connections
• High-performance computing clusters
• Synology NAS systems with QSFP28 ports
• 100GbE network infrastructure

Key specifications

• Cable Type: Direct Attach Copper (DAC) Passive
• Connectors: QSFP28 to QSFP28
• Data Rate: 100 Gbps
• Ethernet Standard: 100GBASE-CR4
• InfiniBand: EDR (Enhanced Data Rate)
• Length: 3 metres (9.8 feet)
• Wire Gauge: 26 AWG
• Jacket Material: PVC
• Power Consumption: <0.5W
• Operating Temperature: 0°C to 70°C
• Storage Temperature: -40°C to 85°C
• Certifications: RoHS, CE, FCC
• Colour: Black

Recommendations

For optimal performance, ensure your device supports QSFP28 modules and 100GBASE-CR4 or InfiniBand EDR. This cable is a direct replacement for Synology DAC cables and is backed by BLUELAN's compatibility guarantee.
