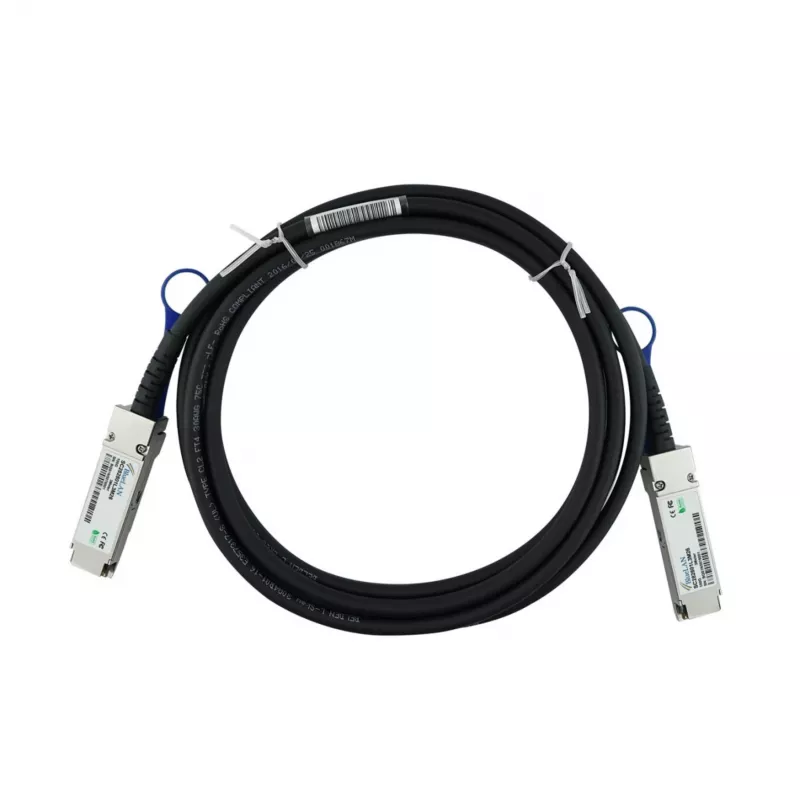

BlueLAN Compatible NVIDIA 980-9I627-00E02A QSFP28 Direct Attach Cable, 100GBASE-CR4, 3m, Passive, 26 AWG

The BlueLAN 980-9I627-00E02A-BL is a high-performance QSFP28 Direct Attach Copper (DAC) cable designed for 100 Gigabit Ethernet and InfiniBand EDR applications. It is fully compatible with NVIDIA/Mellanox systems and offers a cost-effective, reliable interconnect solution for data centers and high-performance computing environments.

Advantages

This passive DAC cable provides low power consumption (<0.5W per end), low latency, and excellent signal integrity over a 3-meter length. It is hot-swappable and requires no configuration, making it easy to deploy. The 26 AWG copper construction ensures durability and flexibility for cable management.

Suitable for

• Data center interconnects
• High-performance computing (HPC) clusters
• Enterprise networking
• Top-of-rack to server connections

Key specifications

• Data Rate: 100 Gbps
• Connector Type: QSFP28 to QSFP28
• Standard: 100GBASE-CR4
• Cable Length: 3 meters
• Wire Gauge: 26 AWG
• Cable Material: Copper
• Passive/Active: Passive
• Impedance: 100 Ohm
• Jacket Material: PVC
• Operating Temperature: 0°C to 70°C
• Storage Temperature: -40°C to 85°C
• Compliance: RoHS, CE, FCC

Recommendations

For optimal performance, use with compatible NVIDIA/Mellanox switches and adapters. Ensure proper cable management to maintain airflow and signal quality.
