Blind rivet GESIPA 1432060 Stainless steel Grey 6.5mm head 3.2mm tail 8mm length

Blind rivet GESIPA 1432060 is a stainless steel PolyGrip blind rivet designed for demanding fastening tasks. It has a head diameter of 6.5 mm, a shank (tail) diameter of 3.2 mm and an overall length of 8 mm. Supplied in a mini-pack of 100 pieces, this grey-coloured rivet is suitable for indoor and outdoor applications where corrosion resistance, strong clamp force and reliable hole-filling performance are required.

Advantages

The GESIPA PolyGrip design provides an extended clamping range so a single rivet size can replace several standard blind rivet sizes. Radial deformation of the shank during installation ensures excellent hole-filling and allows compensation for bore tolerances, centre offset and diameter differences, creating a tight connection with minimal clearance. The spent mandrel locks securely to prevent rattling or loss, and the installed rivet forms a wide closing head that delivers high tensile strength. Under certain conditions the rivet assembly is splash-proof, making it an economical alternative to closed blind rivets.

Suitable for

• General sheet-metal assembly and repair work
• Outdoor installations and corrosion-prone environments
• Applications with variable hole sizes or imperfect bore alignment
• Small professional and DIY riveting projects

Key specifications

• Brand: GESIPA
• MPN: 1432060
• EAN: 4007081013031
• Material: A2 stainless steel
• Head diameter: 6.5 mm
• Shank (tail) diameter: 3.2 mm
• Length: 8 mm

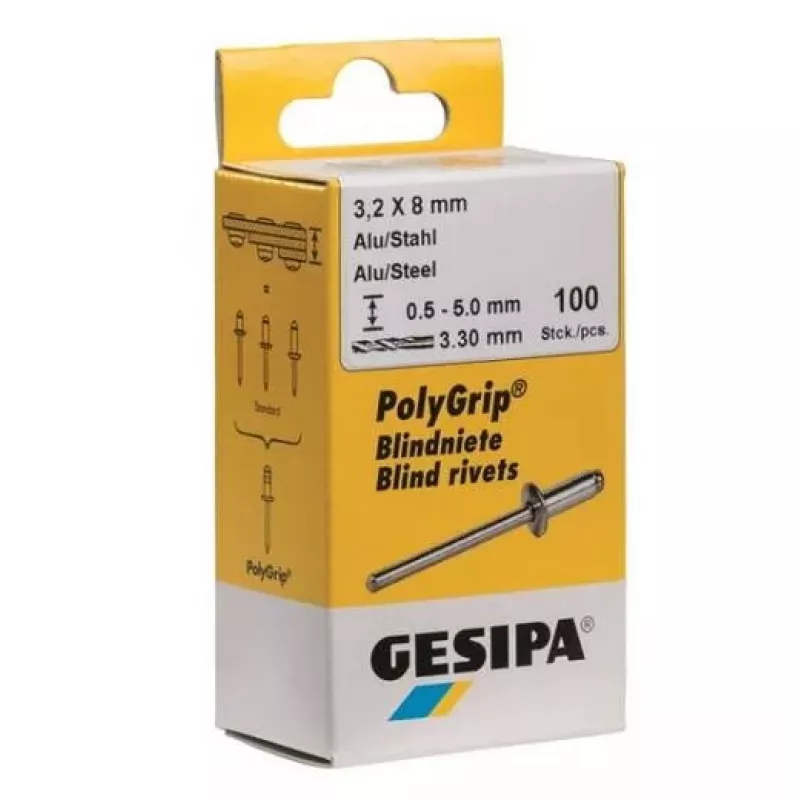

• Pack quantity: 100 pieces (mini-pack)

How to use

Drill or prepare the hole to the appropriate diameter for the rivet shank. Insert the GESIPA PolyGrip rivet through the components to be joined so the head bears against the surface. Place the mandrel in a compatible blind-riveting tool and pull the mandrel until the rivet deforms and the wide closing head forms on the blind side. Continue pulling until the mandrel breaks and locks into the spent-mandrel position. Inspect the joint to ensure the head is flush and the tail has formed a secure bulge without excessive clearance.

Recommendations

For best results use a rivet tool rated for 3.2 mm mandrels and follow tool manufacturer instructions. Select hole diameters and surface preparation appropriate for stainless steel to avoid galling. Where environmental sealing is required, assess compatibility with any sealants or washers; PolyGrip rivets offer good hole filling and splash protection but may not replace fully closed rivets in all fluid-tight applications.
