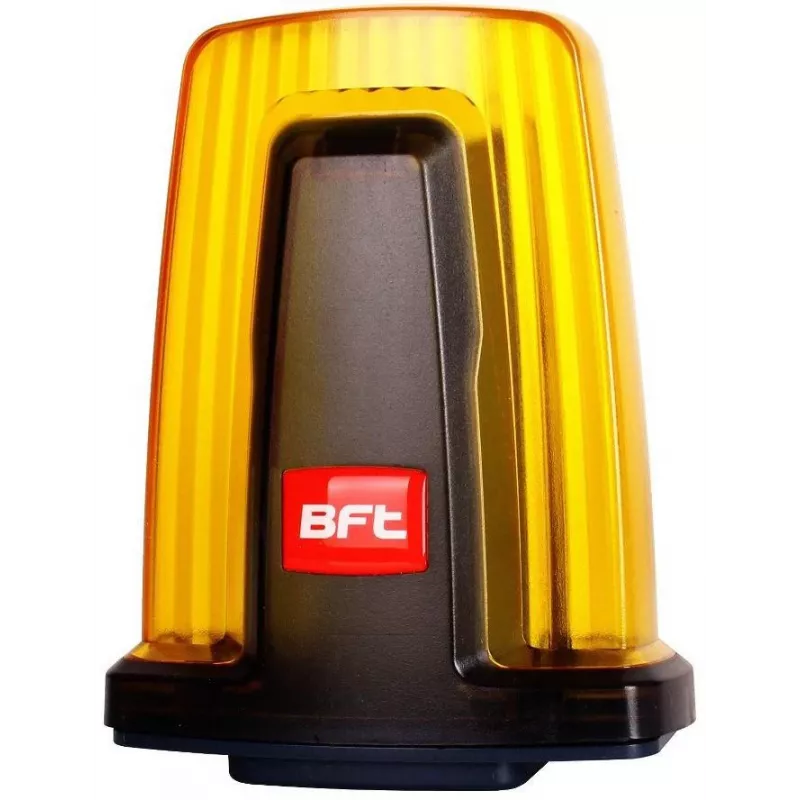

BFT Radius LED BT A R1 24V Flashing Warning Light with Antenna (D114093 00003)

The BFT Radius LED BT A R1 is a high-performance flashing warning light designed for BFT gate automation systems. Featuring an integrated antenna for 433.92 MHz frequency, this 24V AC/DC LED beacon ensures reliable signaling and communication. Its robust polycarbonate housing with IP44 protection makes it suitable for both indoor and outdoor use, providing clear amber/orange light output.

Advantages

Integrated antenna eliminates the need for external wiring, simplifying installation. Energy-efficient LED technology ensures long life and low power consumption. Compact design allows flexible mounting in vertical or horizontal orientation.

Suitable for

• BFT gate automation systems requiring visual warning and radio communication
• Industrial and residential access control applications
• Outdoor installations where weather resistance is needed

Key specifications

• Product Type: Flashing Warning Light
• Light Source: LED
• Operating Voltage: 24V AC/DC
• Integrated Antenna: Yes (433.92 MHz)
• Protection Rating: IP44
• Light Color: Amber / Orange
• Current Consumption: 0.1 A (approx.)
• Operating Temperature: -20°C to +60°C
• Housing Material: Polycarbonate
• Mounting: Surface mount, vertical or horizontal
• Certifications: CE

Recommendations

For optimal performance, ensure compatibility with BFT control units. Professional installation recommended.
