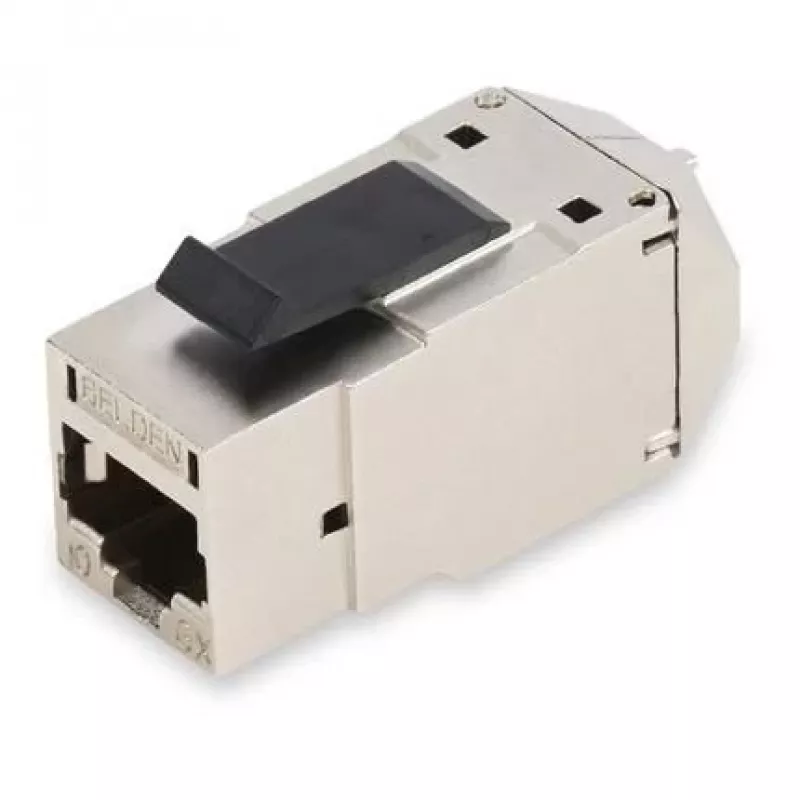

Belden REVConnect 10GX STP Modular RJ45 Keystone Jack CAT6A Shielded White

High-performance shielded RJ45 keystone jack engineered for Category 6A cabling systems, delivering outstanding 10GBASE-T transmission capacity for data centers, enterprise networks, and commercial installations. The tool-less REVConnect termination system drastically simplifies field termination while ensuring reliable, repeatable performance.

Advantages

REVConnect technology offers a universal termination method that supports both solid and stranded conductors from 22–26 AWG, reducing inventory and training complexity. The 50 micro-inch gold-plated contacts ensure superior conductivity and corrosion resistance, while the flame-retardant housing provides safety in plenum and riser spaces. Compatible with PoE, PoE+, and UPoE (Types 1–4), this jack is ready to power IP cameras, wireless access points, and other higher-wattage devices. The universal T568A/T568B wiring scheme allows straightforward integration into existing structured cabling infrastructure.

Suitable for

• Data center patching and equipment interconnects
• Enterprise LAN and structured cabling systems
• Commercial building networks, including PoE deployments
• High-density patching applications

Key specifications

• Connector: RJ45 keystone, shielded (STP)
• Category: 6A / Class EA
• Termination: REVConnect tool-less or with REVConnect tool
• Data rate: 10GBASE-T
• Wire gauge: 22–26 AWG solid or stranded
• Wiring scheme: T568A/T568B universal
• Contact plating: 50 micro-inches gold over nickel
• Housing material: high-impact, flame-retardant plastic, UL 94V-0
• Operating temperature: -10°C to +60°C (14°F to 140°F)
• Durability: 750 mating cycles
• Standards compliance: TIA/EIA-568-C.2, ISO/IEC 11801 Class EA, RoHS

Recommendations

For reliable 10G performance in shielded environments, pair with Belden 10GX STP patch cords and REVConnect termination tool for consistent, high-quality installations.
