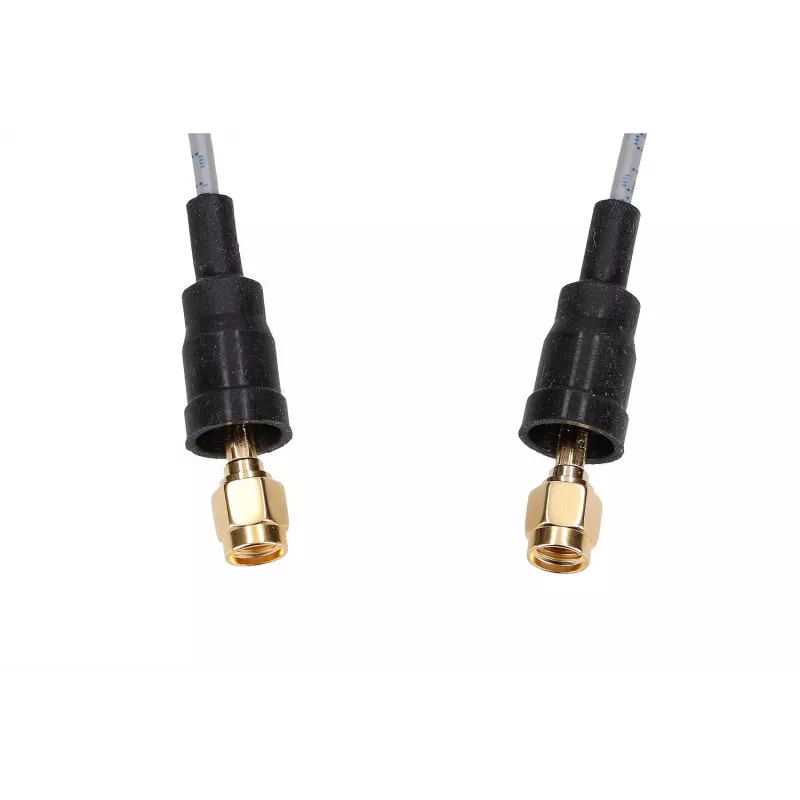

Belden RP-SMA/RP-SMA 50cm RF100LL Coaxial Pigtail Cable, 50 Ohm, Black

For RF installations where every decibel counts, the Belden RP-SMA/RP-SMA 50cm RF100LL pigtail stands apart from generic pigtails. Its low-loss RF100LL coaxial core and gold-plated RP-SMA connectors deliver clean signal transfer up to 6 GHz, while the 50 cm length keeps cable clutter to a minimum. Whether linking an access point to an antenna or bridging a router to an external radio, this pigtail maintains a VSWR below 1.5:1 across the entire band.

Highlights

• Reverse polarity SMA male to reverse polarity SMA female connectors
• 50 Ohm impedance with low insertion loss for Wi-Fi and WLAN
• Flexible RG-style RF100LL coax with braided copper shielding
• Gold-plated brass connectors resist corrosion and wear
• Wide frequency range: DC to 6 GHz
• Compact 50 cm length for tidy equipment connections

In daily use

The 2.8 mm diameter cable bends easily around tight corners without kinking, and the PVC jacket shrugs off daily handling. Installers will appreciate the secure RP-SMA coupling that prevents accidental disconnects in vibration-prone environments. From -20°C to +70°C, the pigtail holds its electrical characteristics, making it suitable for both indoor and protected outdoor enclosures.

Full specifications

• Connector 1: RP-SMA male
• Connector 2: RP-SMA female
• Cable type: RF100LL coaxial
• Impedance: 50 Ohm
• Length: 50 cm
• Frequency range: DC – 6 GHz
• VSWR: < 1.5:1
• Cable diameter: 2.8 mm
• Jacket material: PVC
• Jacket colour: black
• Conductor material: copper
• Dielectric: foamed polyethylene (FPE)
• Shielding: braided copper
• Connector plating: gold-plated brass

Final note

Engineered for reliability, this pigtail ensures your RF connections stay strong and stable in demanding environments.
