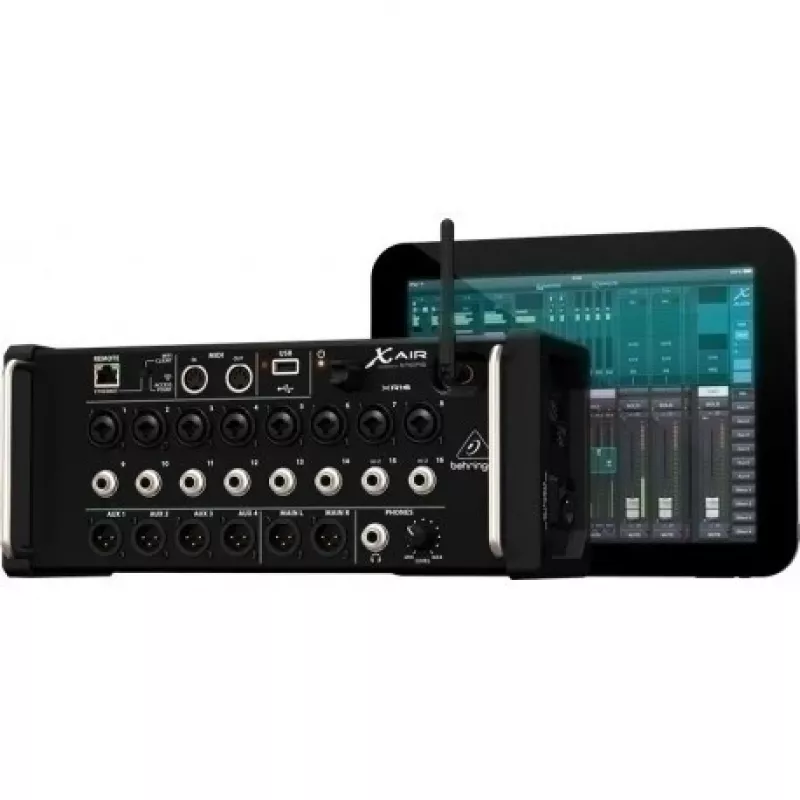

Behringer XR16 16-Channel Digital Mixer with Wi-Fi Control

The Behringer XR16 redefines compact digital mixing by packing a full 16-channel mixer into a 4U rack-mountable chassis that you can control wirelessly from anywhere in the venue. Unlike traditional consoles that tie you to a fixed position, the XR16 lets you adjust monitors from the stage, tweak the main mix from the audience, or even set up a tablet as a dedicated personal monitor mixer for each musician.

Highlights

• 16 input channels: 8 Midas-designed mic preamps on XLR/TRS combo jacks plus 8 balanced TRS line inputs
• 4 true-stereo FX engines with world-class effects including reverb, delay, chorus, and more
• Integrated tri-mode Wi-Fi: access point, client, or Ethernet for reliable control from iOS, Android, PC, Mac, or Linux
• 2x2 USB audio interface for direct recording and playback to/from a computer
• 100-band Real Time Analyzer on every channel and bus EQ for precise room tuning
• ULTRANET port for seamless integration with Behringer P16 personal monitoring system
• 40-bit floating-point DSP and high-quality Cirrus Logic converters for pristine sound

In daily use

On stage, the XR16 becomes the invisible engineer. Each performer can connect a smartphone or tablet and adjust their own monitor mix without touching the main console. The Midas-designed preamps deliver transparent gain with plenty of headroom, while the compressor and gate on every channel keep vocals and drums under control. The four FX engines offer studio-grade reverbs and delays that rival outboard processors costing much more.

In the studio, the XR16 serves as a capable audio interface. Record the main mix or a stereo subgroup directly to your DAW via USB, then play back reference tracks through the same system. The parametric EQ on all channels and buses, combined with the RTA, makes it easy to identify and notch out feedback frequencies in live sound or correct room anomalies.

Full specifications

• Input channels: 16 total (8 XLR/TRS combo with Midas preamps, 8 TRS line)
• Outputs: Main L/R XLR, 6 TRS aux sends, headphone output with level control
• FX engines: 4 true-stereo internal effects processors
• Connectivity: Integrated tri-mode Wi-Fi (access point, client, Ethernet), Ethernet port, USB 2.0 (2x2 audio)
• AD/DA conversion: High-quality Cirrus Logic converters
• Processing: 40-bit floating-point DSP
• Phantom power: +48V switchable per channel
• EQ: Parametric EQ on all channels and buses
• Dynamics: Compressor and gate on all channels
• RTA: 100-band Real Time Analyzer on all channel and bus EQs
• ULTRANET port: Yes (for P16 personal monitoring)
• MIDI I/O: MIDI In and Out
• Rack mountable: Yes, 4U with included rack ears
• Control: Remote operation via PC, Mac, Linux, iOS, Android apps

Final note

The XR16 delivers the sound quality and flexibility of a much larger digital console in a compact, affordable package. Whether you're mixing a live band, managing a house of worship sound system, or recording a podcast, this mixer gives you professional control without the bulk.
