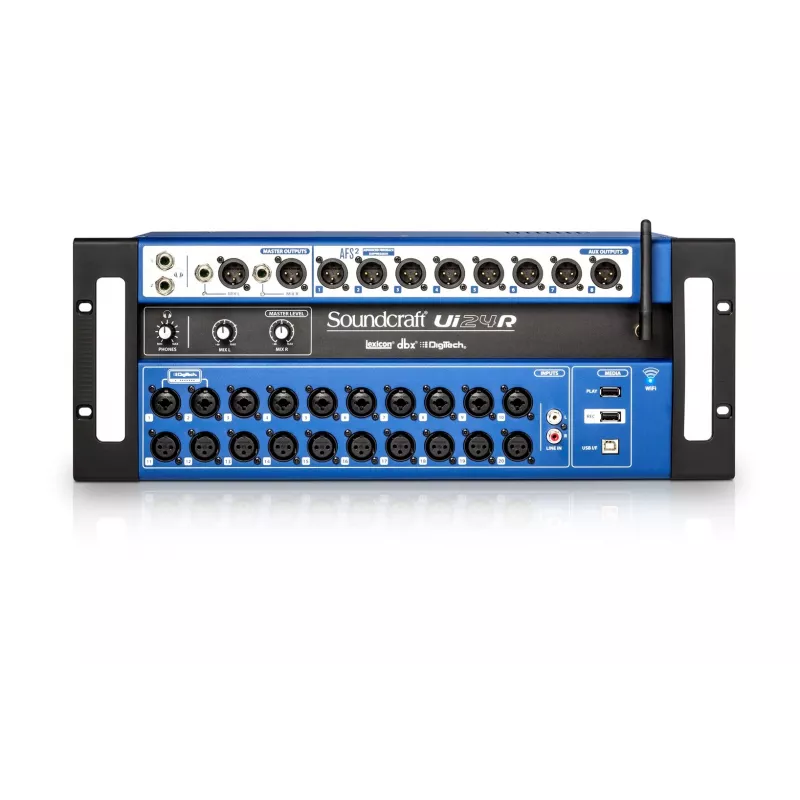

Ui24R Digital Network Mixer

The Ui24R Digital Network Mixer is a powerful, rack-mountable mixing solution designed for live sound and installation applications. With 24 input channels, Studer-designed preamps, and built-in dual-band Wi-Fi, it offers flexible control via any HTML5 browser on iOS, Android, Windows, Mac, or Linux devices. The mixer features comprehensive effects processing from Lexicon, dbx, and DigiTech, plus a 32-in/32-out USB audio interface for recording and playback.

Advantages

Ultra-low latency and recallable gain make the Ui24R ideal for both live performances and studio use. The built-in Wi-Fi eliminates the need for external routers, while the 4U rack-mountable design saves space. With 24-bit/48 kHz audio quality and a full suite of dynamics and EQ on every channel, this mixer delivers professional-grade sound in a compact package.

Suitable for

• Live sound reinforcement for bands, theaters, and houses of worship
• Installation in conference rooms, auditoriums, and multi-purpose venues
• Recording studios requiring a portable, network-controlled mixer
• Broadcast and streaming applications

Key specifications

• 24 input channels with 10 XLR/TRS combo, 10 XLR, and 2 RCA analog inputs
• 8 XLR Aux outputs plus 2 XLR Main L/R and 2 TRS headphone outputs
• Built-in dual-band Wi-Fi (2.4 GHz/5 GHz) for wireless control
• 32-in/32-out USB audio interface for multitrack recording
• Lexicon reverb/delay/chorus, dbx AFS2 feedback suppression, DigiTech amp modeling
• 4-band parametric EQ, compressor, gate, and de-esser on all input channels
• +48V phantom power on all mic inputs
• Sampling rate: 48 kHz, bit depth: 24-bit
• Rack mountable (4U) with Ethernet port for wired connection

Recommendations

The Ui24R is an excellent choice for sound engineers seeking a versatile, network-controlled mixer with high-quality preamps and effects. Its browser-based control surface works seamlessly across all major platforms, making it easy to mix from anywhere in the venue. For best performance, use a dedicated tablet or laptop with a modern browser.
