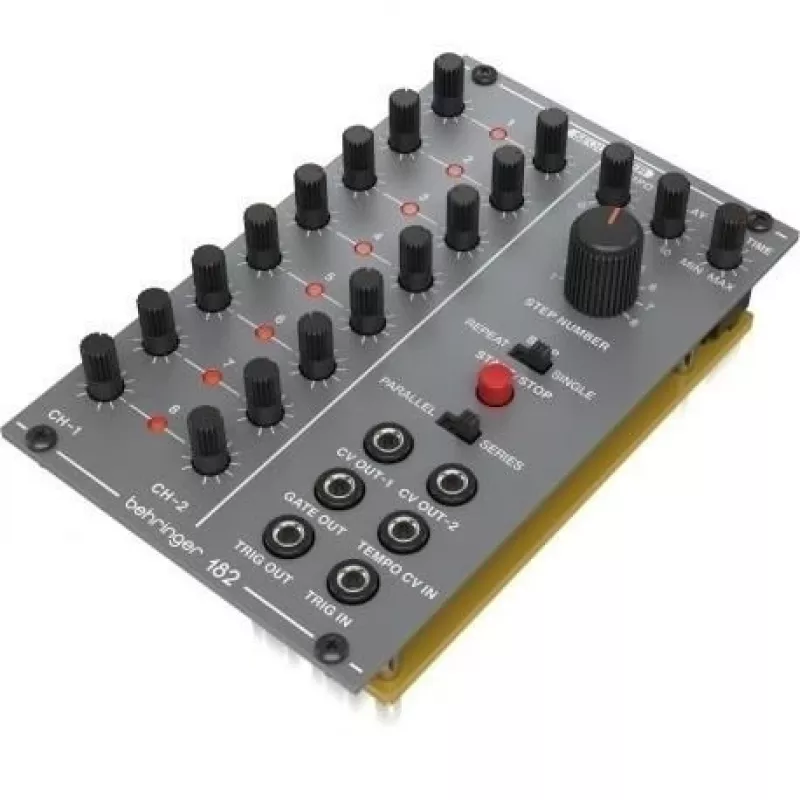

Behringer 182 SEQUENCER Eurorack Analog Sequencer Module, 2x8 Steps, Dual CV/Gate Outputs, Authentic Roland System 100M Reproduction

Dual 8-step analog sequencers with individual voltage control per step, delivering authentic Roland System 100M 182 behavior in a compact 16 HP Eurorack module. Each channel offers independent CV (0V to +8V) and Gate (0V to +10V) outputs, plus manual step, reset, skip, and start/stop controls for expressive sequencing.

Overview

The Behringer 182 SEQUENCER brings the classic analog sequencing workflow of the Roland System 100M to your Eurorack system. Featuring two independent 8-step sequencers, you can create complex melodic and rhythmic patterns with ease. The module's straightforward interface—one potentiometer and one switch per step—invites hands-on tweaking and live performance. A built-in clock with rate control drives both sequencers, while external clock input and output allow synchronization with other modules.

What stands out

• Authentic reproduction of the Roland System 100M 182 sequencer circuitry
• Two independent 8-step sequencers (16 steps total when chained)
• Individual voltage control per step via dedicated potentiometers
• Separate CV and Gate outputs for each sequencer (0–8V CV, 0–10V Gate)
• Manual step, reset, skip, and start/stop functions per channel
• Internal clock with rate knob plus external clock input and output
• Compact 16 HP width, 40 mm depth, low power consumption (50 mA +12V, 10 mA -12V)

Technical details

• Module type: Analog sequencer
• Format: Eurorack
• Number of sequencers: 2 (independent)
• Steps per sequencer: 8
• Total steps: 16 (2x8)
• CV outputs: 2 (0V to +8V)
• Gate outputs: 2 (0V to +10V)
• Clock input: Yes (3.5mm TS)
• Clock output: Yes (3.5mm TS)
• Step controls: Manual step, reset, skip, start/stop per channel
• Connectors: 3.5mm TS jacks
• Rack width: 16 HP
• Module depth: 40 mm
• Power consumption: +12V: 50 mA, -12V: 10 mA
• Original circuitry: Authentic reproduction of Roland System 100M 182

Our verdict

The Behringer 182 SEQUENCER is a faithful and affordable way to add classic analog sequencing to your Eurorack. Its dual channels, per-step voltage control, and solid build make it a powerful tool for both studio and live use.
