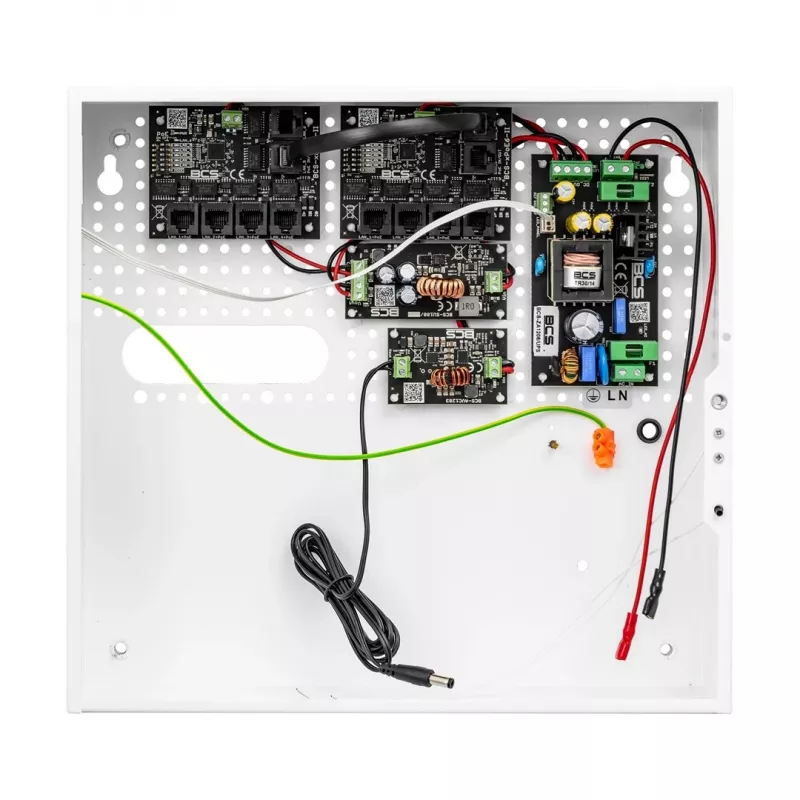

BCS UPS/IP8/E-S Uninterruptible Power Supply for IP Cameras, 8 PoE Ports, 120W PoE Budget, 2x 12V/7Ah Battery

The BCS UPS/IP8/E-S is a specialized uninterruptible power supply (UPS) designed for IP camera systems, providing reliable backup power and PoE switching in one compact unit. Ideal for security installations where continuous operation is critical, this device ensures your cameras stay online during power outages.

Advantages

Integrated 8-port PoE switch with 120W total power budget eliminates the need for separate switches. Dual 12V/7Ah sealed lead-acid batteries provide extended runtime. Comprehensive protections (overload, short circuit, surge) safeguard connected equipment. Wall-mountable design saves space.

Suitable for

• IP camera surveillance systems
• Security installations requiring uninterrupted power
• Small to medium-sized PoE networks
• Remote or outdoor monitoring stations

Key specifications

• Product Type: Uninterruptible Power Supply (UPS) for IP Cameras
• PoE Ports: 8x RJ45 (10/100 Mbps) with IEEE 802.3af/at
• Uplink Ports: 2x RJ45 (10/100 Mbps)
• Total PoE Power Budget: 120W (max 30W per port)
• Internal Power Supply: 150W
• Battery: 2x 12V/7Ah Sealed Lead-Acid
• Input Voltage: 230V AC, 50Hz
• Output Voltage (PoE): 48V DC
• Housing Material: Metal
• Mounting: Wall-mountable / Desktop
• LED Indicators: Power, UPS Status, PoE Status, Link/Act

Recommendations

For optimal performance, use with BCS IP cameras and ensure proper ventilation. Batteries should be replaced every 3-5 years depending on usage.
