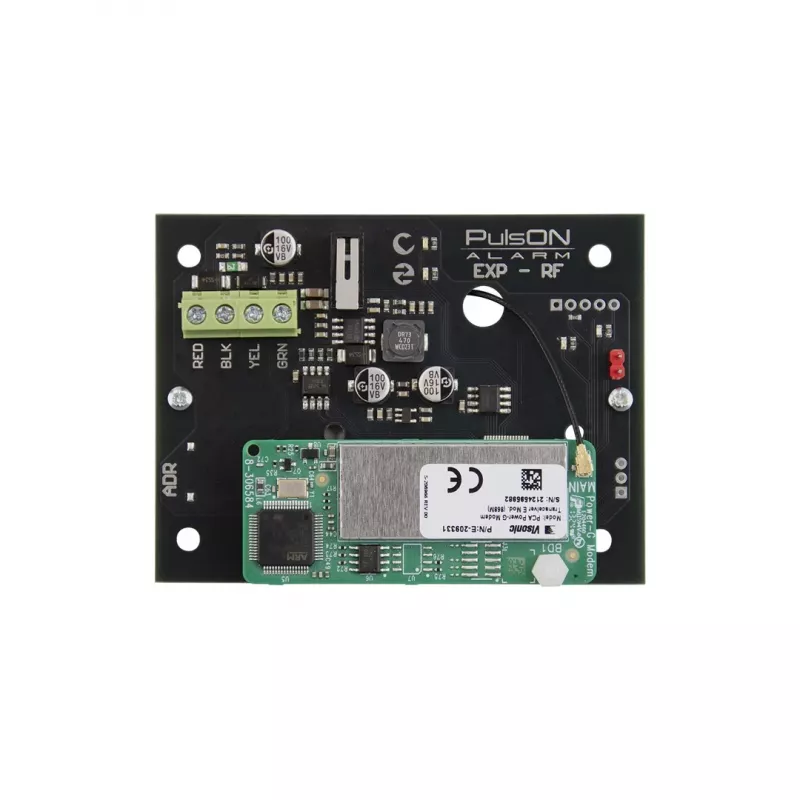

BCS PulsON EXP-RF(PowerG) Wireless Range Extender / Repeater, 868 MHz, PowerG, White

The BCS PulsON EXP-RF(PowerG) is a wireless range extender and repeater designed to enhance the coverage of Visonic PowerMaster security systems. Utilizing PowerG frequency hopping spread spectrum technology at 868 MHz, it ensures reliable and secure communication with 128-bit AES encryption. This device extends the wireless range up to 2000 meters line of sight, making it ideal for large premises or areas with signal obstacles.

Advantages

Extends the range of your PowerMaster security system, ensuring all sensors and devices maintain a strong connection. The PowerG technology provides interference-free operation and robust security. Easy wall-mount installation with tamper protection for both wall and cover.

Suitable for

• Large homes and buildings requiring extended wireless coverage
• Commercial properties with multiple zones
• Integration with Visonic PowerMaster alarm systems

Key specifications

• Wireless Technology: PowerG (Frequency Hopping Spread Spectrum)
• Operating Frequency: 868 MHz
• Compatibility: Visonic PowerMaster Security Systems
• Function: Wireless Range Extender / Repeater
• Encryption: 128-bit AES
• Power Supply: 5VDC via AC Adapter (100-240 VAC, 50/60 Hz)
• Backup Battery: Rechargeable NiMH 4.8V, 1.3Ah
• Wireless Range (Line of Sight): Up to 2000m (6500ft)
• Tamper Protection: Wall and Cover
• Status Indicators: Power, RF, Trouble LEDs
• Operating Temperature: -10°C to 55°C (14°F to 131°F)
• Operating Humidity: 5% to 93% non-condensing
• Mounting Type: Wall Mount
• Certifications: CE, EN50131 Grade 2 Class II
• Color: White

Recommendations

For optimal performance, place the range extender in a central location between the control panel and the furthest device. Ensure the adapter is connected to a stable power source. The backup battery provides continued operation during power outages.
