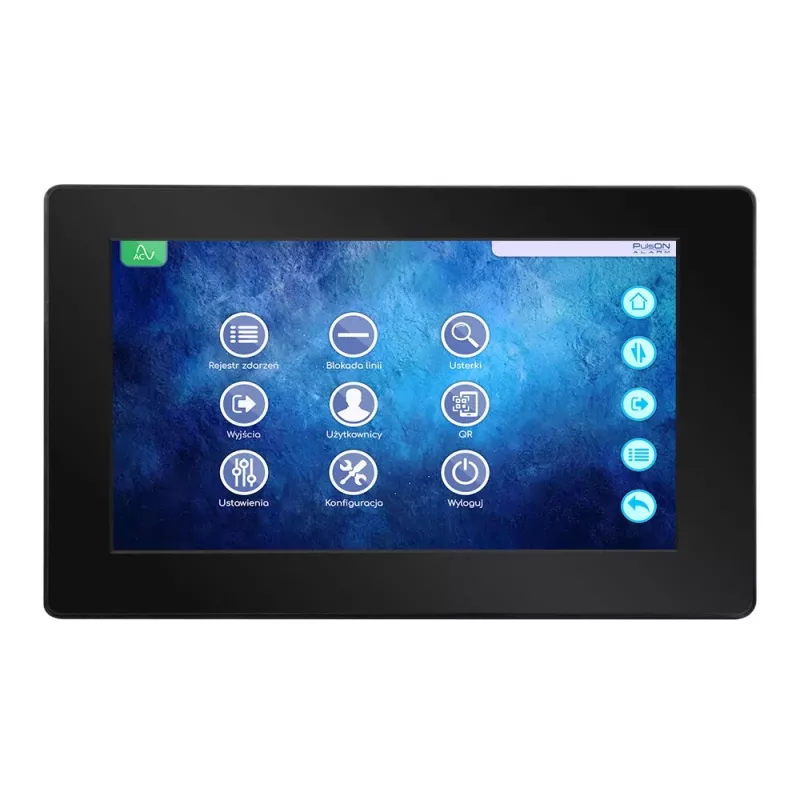

BCS PulsON Alarm Touch BUS 7" - BL

The BCS PulsON Alarm Touch BUS 7" - BL redefines alarm system control by integrating a large 7-inch capacitive touchscreen with native PulsON Alarm BUS communication. Unlike conventional keypads that require separate power supplies and complex wiring, this panel draws power directly from the BUS, simplifying installation and reducing cable clutter. The sleek black ABS housing blends discreetly into modern interiors while providing robust tamper protection.

Highlights

• 7-inch capacitive touchscreen with high-quality black panel for clear, responsive control
• Native PulsON Alarm BUS protocol for seamless integration with PulsON Alarm 2, 4, and newer control panels
• Powered directly via 12V DC from the BUS, simplifying installation and reducing cable clutter
• Intuitive GUI supports arming/disarming, zone status, event log review, user management, and system configuration
• Built-in speaker for acoustic signaling of alarms and system events
• Tamper protection and robust ABS plastic housing for long-term reliability

In daily use

Mounted on a wall or flush surface, the PulsON Alarm Touch BUS 7" - BL becomes the central command point for your security system. The capacitive touchscreen responds to light taps and swipes, allowing you to arm or disarm the system quickly, check the status of individual zones, and scroll through event logs without navigating cumbersome menus. The built-in speaker provides clear acoustic alerts, ensuring you never miss an important event.

Full specifications

• Display Size: 7 inches
• Display Type: Capacitive Touchscreen
• Panel Color: Black
• Communication Protocol: PulsON Alarm BUS
• System Compatibility: PulsON Alarm 2, PulsON Alarm 4 (and newer PulsON Alarm control panels)
• Power Supply: 12V DC (via BUS)
• Mounting Type: Surface Mount
• Operating Temperature: -10°C to +55°C
• Operating Humidity: 10% - 90% RH (non-condensing)
• User Interface: Intuitive Graphical User Interface (GUI)
• Key Functions: Arming/Disarming, Zone Status Display, Event Log Review, User Management, System Configuration
• Security Features: Tamper Protection
• Audio Features: Built-in Speaker for acoustic signaling
• Housing Material: High-quality ABS Plastic

Final note

The BCS PulsON Alarm Touch BUS 7" - BL is the ideal choice for users seeking a modern, intuitive, and reliable security system interface that integrates seamlessly with the PulsON Alarm ecosystem.
