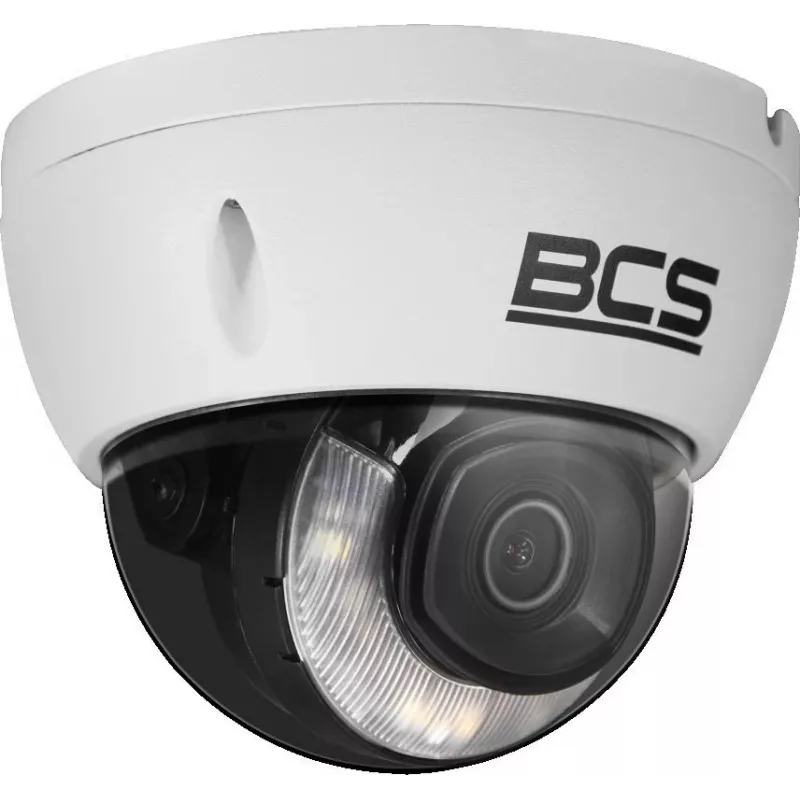

BCS IP Dome Camera 4MP BCS-L-DIP14FCR3L3-Ai1

The BCS-L-DIP14FCR3L3-Ai1 is a high-performance 4MP IP dome camera designed for professional surveillance. Featuring a 1/2.9" Progressive Scan CMOS sensor, it delivers crisp 2560x1440 resolution at 20fps. With 120dB True WDR, Smart IR up to 30m, and built-in AI analytics (Perimeter Protection, SMD Plus), this camera ensures reliable security in challenging conditions. Its IP67 and IK10 ratings make it suitable for outdoor and vandal-resistant installations.

Advantages

Advanced AI detection reduces false alarms by distinguishing humans and vehicles. True WDR 120dB handles high-contrast scenes, while Smart IR provides uniform night illumination. The compact dome design with IK10 vandal resistance ensures durability in public areas.

Suitable for

• Retail stores and shopping centers
• Office buildings and warehouses
• Parking lots and perimeter security
• Schools and public facilities

Key specifications

• Image Sensor: 1/2.9" 4MP Progressive Scan CMOS
• Max Resolution: 2560x1440 (4MP)
• Lens: 2.8mm fixed, 98° HFOV
• IR Range: Up to 30m (Smart IR)
• Video Compression: H.265+/H.265/H.264+/H.264/MJPEG
• Power: 12V DC, PoE (802.3af)
• Ingress Protection: IP67
• Vandal Resistance: IK10
• Audio: Built-in microphone
• Local Storage: MicroSD up to 256GB
• AI Features: Perimeter Protection (Intrusion, Tripwire), SMD Plus
• WDR: 120dB True WDR
• Min. Illumination: 0.005 Lux (Color), 0 Lux (IR)
• Network: 1x RJ-45 10/100Mbps

Recommendations

For optimal performance, use a PoE switch or 12V DC power supply. Ensure the microSD card is Class 10 or higher. The camera supports ONVIF for integration with third-party NVRs.
