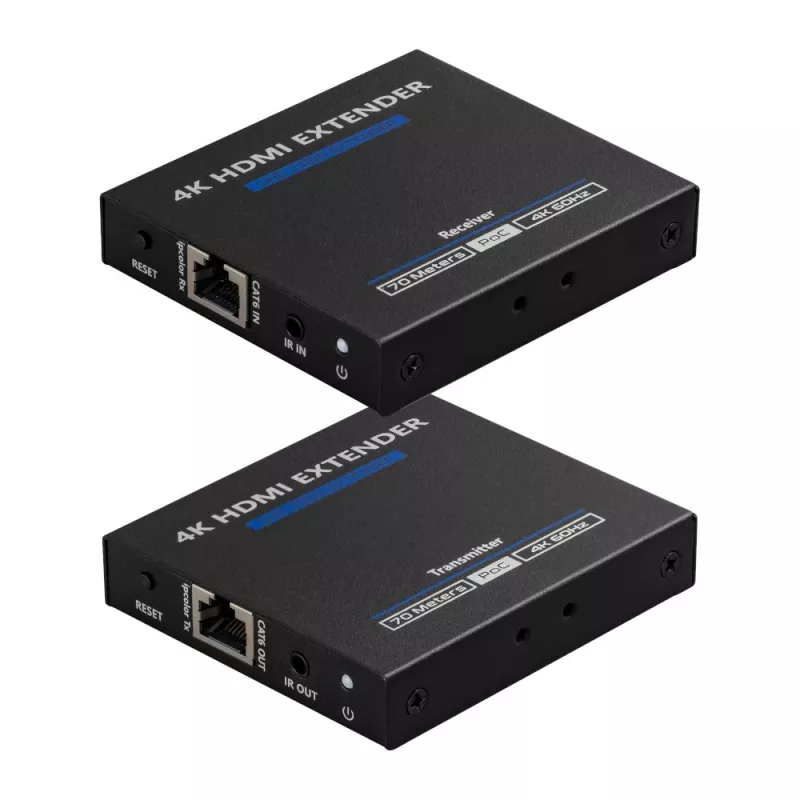

BCS BCS-UTP-HDMI-4K-SET(2) HDMI Extender Set 4K 30m Transmitter & Receiver

The BCS BCS-UTP-HDMI-4K-SET(2) is a professional HDMI extender set comprising a transmitter and receiver, designed to extend HDMI signals over UTP cable (Cat.5e/6/6a) up to 30 meters at 4K resolution or 70 meters at Full HD. Ideal for digital signage, conference rooms, and home theater installations, this metal-housed extender supports HDCP 1.4, bi-directional IR pass-through, and HDMI loop-out on the transmitter for local monitoring.

Advantages

Reliable and cost-effective solution for extending HDMI signals over long distances using standard network cables. The metal housing ensures durability and heat dissipation. Bi-directional IR allows remote control from either end. HDMI loop-out enables connection of a local display without additional splitters.

Suitable for

• Digital signage installations
• Conference room AV systems
• Home theater setups
• Education and corporate environments

Key specifications

• Max Resolution: 3840x2160 @ 30Hz (4K) / 1920x1080 @ 60Hz (Full HD)
• Max Distance: 30m (4K) / 70m (Full HD) over Cat.6/6a
• HDMI Bandwidth: 10.2 Gbps
• HDCP Support: HDCP 1.4
• IR Pass-through: Bi-directional
• HDMI Loop-out: Yes (on transmitter)
• EDID Management: Yes
• Power Supply: DC 5V/1A (2 adapters included)
• Housing Material: Metal
• Operating Temperature: -10°C to +50°C

Recommendations

For optimal performance, use Cat.6 or Cat.6a UTP cable. Ensure proper termination of RJ45 connectors. This extender is not compatible with PoE; use the included power adapters.
