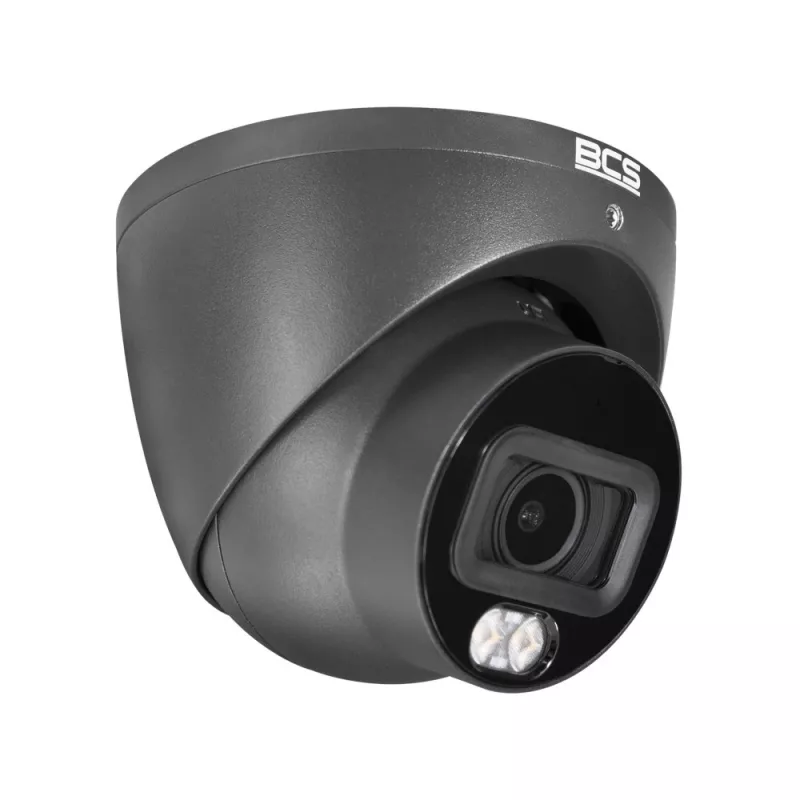

BCS 6MP IP Dome Camera BCS-L-EIP26FCR3L3-AI1-G(2) 2.8mm

The BCS-L-EIP26FCR3L3-AI1-G(2) is a high-performance 6 Megapixel IP dome camera designed for professional surveillance. Featuring a 1/2.7" Progressive Scan CMOS sensor, it delivers crisp 3072x2048 resolution at 20fps. Equipped with a 2.8mm fixed lens providing a 106° horizontal field of view, this camera is ideal for monitoring wide areas such as retail stores, offices, and warehouses. With advanced AI capabilities including perimeter protection (intrusion and tripwire), face detection, and SMD Plus, it ensures intelligent and reliable security. The camera supports H.265+ compression for efficient bandwidth and storage, and offers 120dB True WDR for clear imaging in challenging lighting conditions. Built with an IP67-rated metal and plastic housing and IK10 vandal resistance, it withstands harsh environments. Power via 12V DC or PoE (802.3af) simplifies installation.

Advantages

6MP high-resolution imaging with 2.8mm wide-angle lens; AI-powered analytics reduce false alarms; 120dB WDR handles backlight and shadows; IP67/IK10 durability for outdoor use; H.265+ compression saves up to 70% bandwidth; built-in microphone for audio recording; supports up to 256GB microSD card for local storage.

Suitable for

• Retail stores and shopping centers
• Office buildings and corporate campuses
• Warehouses and logistics centers
• Parking lots and perimeter areas
• Schools and public facilities

Key specifications

• Resolution: 6 MP (3072x2048)
• Sensor: 1/2.7" Progressive Scan CMOS
• Lens: 2.8mm fixed focal
• Horizontal angle: 106°
• IR range: up to 30m
• Video compression: H.265+, H.265, H.264+, H.264, MJPEG
• WDR: 120dB True WDR
• Noise reduction: 3D DNR
• AI features: Perimeter protection, face detection, SMD Plus
• Audio: Built-in microphone
• Local storage: microSD slot up to 256GB
• Network: 1x RJ-45 10/100Mbps
• Power: 12V DC, PoE (802.3af)
• Ingress protection: IP67
• Vandal resistance: IK10
• Operating temperature: -30°C to +60°C
• Housing: Metal + plastic

Recommendations

For optimal performance, use a PoE switch or injector compliant with IEEE 802.3af. Ensure the microSD card is high endurance and formatted in the camera before use. Position the camera at a height of 2.5-3m for best coverage. Regularly clean the dome to maintain image clarity.
