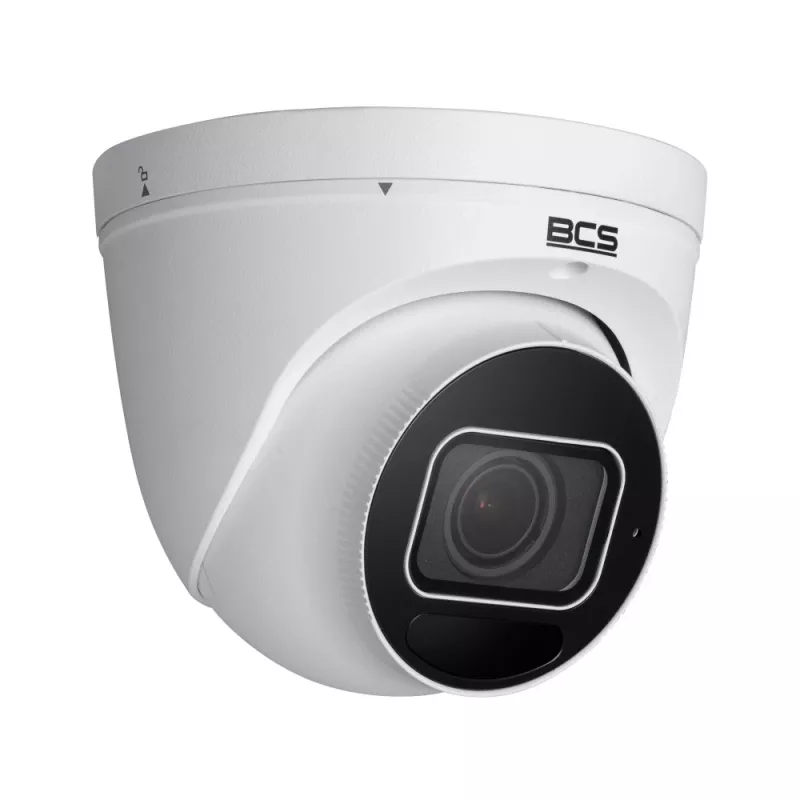

BCS 5MP IP Dome Camera BCS-P-EIP45VSR4-Ai with Motorized Varifocal Lens, Smart IR, AI Functions

The BCS-P-EIP45VSR4-Ai is a high-performance 5MP IP dome camera designed for professional surveillance. Featuring a 1/2.7" progressive CMOS sensor, it delivers crisp 2592x1944 resolution at 25/30 fps. The motorized varifocal lens (2.7-13.5mm) provides a wide horizontal angle of view from 104° to 29°, making it suitable for various monitoring scenarios. With Smart IR technology, the camera offers up to 40m night vision range. True 120dB WDR ensures clear images in challenging lighting conditions. The camera supports H.265+/H.265/H.264+/H.264/MJPEG compression for efficient bandwidth and storage. AI functions include perimeter protection (tripwire, intrusion), SMD Plus, and face detection. Built-in microphone and audio input/output enable two-way audio. The camera is rated IP67 and IK10 for outdoor and vandal-resistant installations. Power options include DC 12V and PoE (802.3af), with max consumption of 7.8W. Local storage via microSD card up to 256GB is supported.

Advantages

High 5MP resolution with motorized varifocal lens for flexible framing. Smart IR for clear night vision up to 40m. True WDR 120dB for balanced exposure in high-contrast scenes. AI-powered analytics reduce false alarms. Rugged IP67/IK10 design ensures durability. PoE simplifies installation.

Suitable for

• Perimeter surveillance of commercial and industrial sites
• Retail stores, warehouses, and parking lots
• Critical infrastructure requiring AI detection
• Outdoor areas with harsh weather conditions

Key specifications

• Sensor: 1/2.7" 5MP Progressive CMOS
• Resolution: 2592x1944 @ 25/30fps
• Lens: Motorized Varifocal 2.7-13.5mm, F1.4
• Angle of View: H: 104°-29°
• IR Range: Up to 40m (Smart IR)
• Video Compression: H.265+/H.265/H.264+/H.264/MJPEG
• WDR: 120dB True WDR
• Audio: Built-in mic, 1x Audio In, 1x Audio Out
• Alarm: 1x In, 1x Out
• Storage: microSD up to 256GB
• Network: 1x RJ-45 10/100Mbps
• Power: DC 12V, PoE (802.3af), max 7.8W
• Protection: IP67, IK10
• AI: Perimeter Protection, SMD Plus, Face Detection
• Operating Temperature: -30°C to +60°C
• Housing: Metal

Recommendations

For optimal performance, use a PoE switch or injector compliant with IEEE 802.3af. Ensure the microSD card is high endurance for continuous recording. The camera is compatible with most ONVIF-compliant NVRs and VMS.
