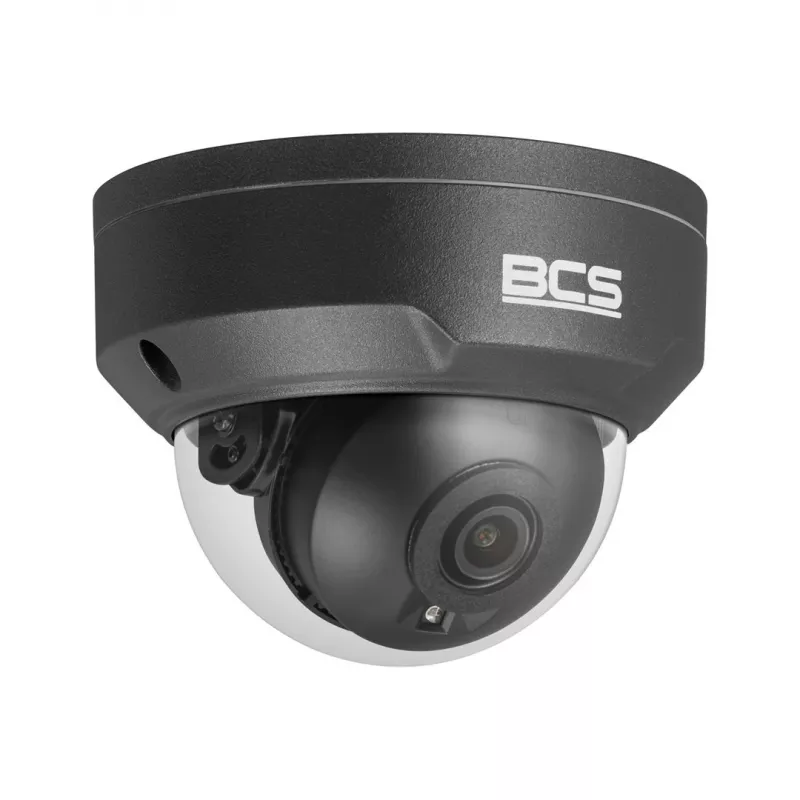

BCS 4MP IP Dome Camera BCS-P-DIP24FSR3-Ai2-G, 2.8mm, IR 30m, PoE, IP67, IK10, AI

The BCS-P-DIP24FSR3-Ai2-G is a high-performance 4MP IP dome camera designed for professional surveillance. Featuring a 1/2.9" Progressive Scan CMOS sensor, it delivers crisp 2560x1440 resolution at 25/30 fps. With a 2.8mm fixed lens providing a 95° horizontal field of view, this camera is ideal for indoor and outdoor monitoring. Equipped with Smart IR technology, it offers up to 30 meters of infrared illumination for clear night vision. The camera supports H.265+ compression for efficient bandwidth and storage usage. Built-in AI capabilities include perimeter protection (intrusion and tripwire), SMD Plus, and face detection. The metal housing is rated IP67 for dust and water resistance and IK10 for vandal resistance, ensuring durability in harsh environments. Power can be supplied via DC 12V or PoE (802.3af), with a maximum consumption of 5.5W. A built-in microphone enables audio recording, and a MicroSD card slot supports local storage up to 256GB. The camera also features 120dB True WDR and 3D DNR for superior image quality in challenging lighting conditions.

Advantages

This dome camera combines high-resolution imaging with advanced AI analytics, making it a versatile choice for security applications. Its robust IP67 and IK10 ratings ensure reliable operation in outdoor and high-risk areas. The Smart IR and True WDR technologies guarantee clear footage day and night, while H.265+ compression reduces storage costs. Easy installation is supported by PoE connectivity, and the built-in microphone adds audio surveillance capability.

Suitable for

• Perimeter monitoring of commercial and industrial sites
• Retail stores, warehouses, and parking lots
• Residential outdoor surveillance
• Areas requiring vandal-resistant cameras

Key specifications

• Sensor: 1/2.9" Progressive Scan CMOS
• Resolution: 4MP (2560x1440)
• Lens: 2.8mm fixed, FOV 95°
• IR Range: Up to 30m (Smart IR)
• Video Compression: H.265+, H.265, H.264+, H.264, MJPEG
• Frame Rate: 25/30 fps @ 4MP
• Audio: Built-in microphone
• Network: 1x RJ-45 10/100 Mbps Ethernet
• Power: DC 12V, PoE (802.3af), max 5.5W
• Storage: MicroSD slot up to 256GB
• WDR: 120dB True WDR
• DNR: 3D DNR
• AI: Perimeter protection, SMD Plus, face detection
• Ingress Protection: IP67
• Vandal Resistance: IK10
• Operating Temperature: -30°C to +60°C
• Housing Material: Metal

Recommendations

For optimal performance, use a PoE switch or injector compliant with IEEE 802.3af. Ensure the MicroSD card is rated for continuous recording. The camera is compatible with BCS NVRs and third-party systems supporting ONVIF.
