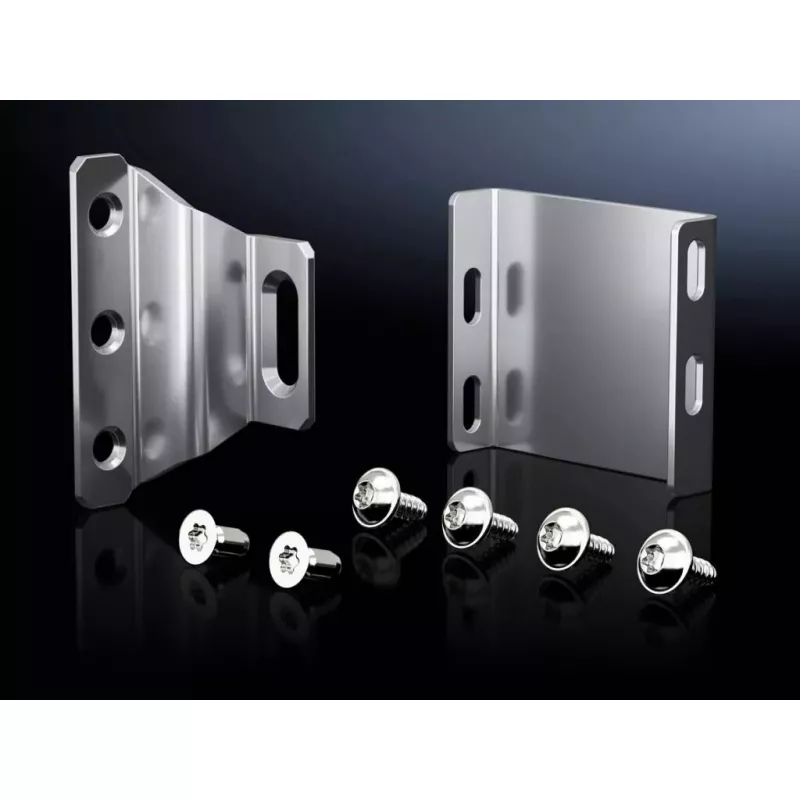

Baying connector Rittal 5301.312 for VX IT and TS IT racks, stainless steel, 1 pc

The Rittal baying connector 5301.312 is a stainless-steel accessory engineered to join VX IT and TS IT rack enclosures into a mechanically secure row. Supplied as a single piece, this connector provides corrosion-resistant metal coupling between adjacent racks, reducing misalignment and maintaining a continuous rack front and rear. It is intended for data centers, server rooms and other IT environments where durable, stable baying is required to support mounted equipment and cable management.

Advantages

Made of stainless steel for enhanced corrosion resistance and long-term durability, the baying connector offers a rigid mechanical joint that maintains rack alignment and stability. Its single-piece design simplifies installation and reduces the number of separate fasteners. The connector is compatible with VX IT and TS IT rack profiles, allowing seamless integration into existing Rittal rack systems and helping to preserve enclosure dimensions and clearances.

Suitable for

Key specifications

How to use

Position the connector between adjacent rack enclosures so that the mounting points on both racks align with the connector flanges. Secure the connector using the appropriate fasteners supplied with or recommended for the rack system, ensuring even torque to preserve alignment. After fastening, verify that the racks are flush and that doors, panels and cable passes operate without obstruction. Installation should follow the rack manufacturer’s assembly instructions and any site-specific safety procedures.

Recommendations

Use stainless-steel connectors in environments where moisture or aggressive cleaning agents may be present to minimize corrosion. Check compatibility with VX IT and TS IT mounting profiles before installation and inspect connections periodically to confirm fastener tightness and structural integrity.
