Barrow G1/4 inch Extension Offset MF 14 – angled fitting for liquid cooling, black, model TX360PZ b

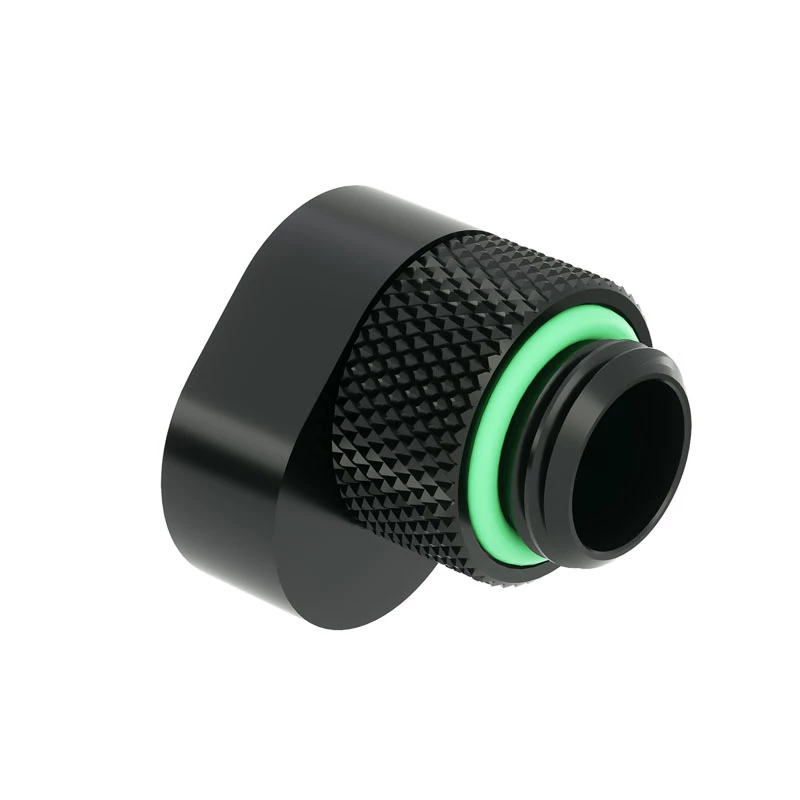

Barrow G1/4" Extension Offset MF 14 (model TX360PZ b) is a black angled fitting for PC liquid cooling systems that provides an offset connection between components. It uses standard G1/4" threads and MF 14 dimensions to redirect tubing and create clearance in tight layouts. The compact angled design helps route coolant between radiators, water blocks and pumps while maintaining a sealed, threaded connection compatible with common fittings and adapters.

Advantages

The angled extension delivers a reliable threaded connection with precise MF 14 sizing for consistent alignment and reduced stress on tubing and blocks. Its black finish provides a discreet appearance that integrates with most system builds. The offset geometry enables cleaner cable- and tube-routing, improving airflow and simplifying installation in constrained cases or dense component clusters.

Suitable for

• Redirecting tubing between radiators and water blocks in compact PC cases
• Creating clearance where straight fittings would interfere with components
• Custom liquid cooling loops requiring precise tube routing or offsets
• Connecting pumps, reservoirs and distribution plates with angled approaches

Key specifications

• Thread standard: G1/4"
• Connection type: male-female offset extension
• Dimension standard: MF 14 sizing for compatibility with MF 14 fittings
• Angle: angled/offset configuration for directional change
• Finish: black surface treatment
• Material: metal alloy suitable for liquid cooling (metal construction)

How to use

Install the fitting by threading the male end into the corresponding G1/4" female port and securing the female end to the mating male fitting or port. Hand-tighten initially, then use appropriate tools to make a firm, leak-free connection without over-torquing. Position the angled extension so the offset redirects tubing as required, and verify clearance with surrounding components before completing the loop. Use compatible sealing methods such as PTFE tape or factory O-rings where applicable.

Recommendations

For reliable operation, check compatibility with existing MF 14 fittings and ensure threaded connections are clean and free of debris. Tighten fittings progressively and inspect the loop under low pressure before normal operation to confirm there are no leaks. Consider the offset when planning tube lengths to avoid unnecessary bends or kinks.
