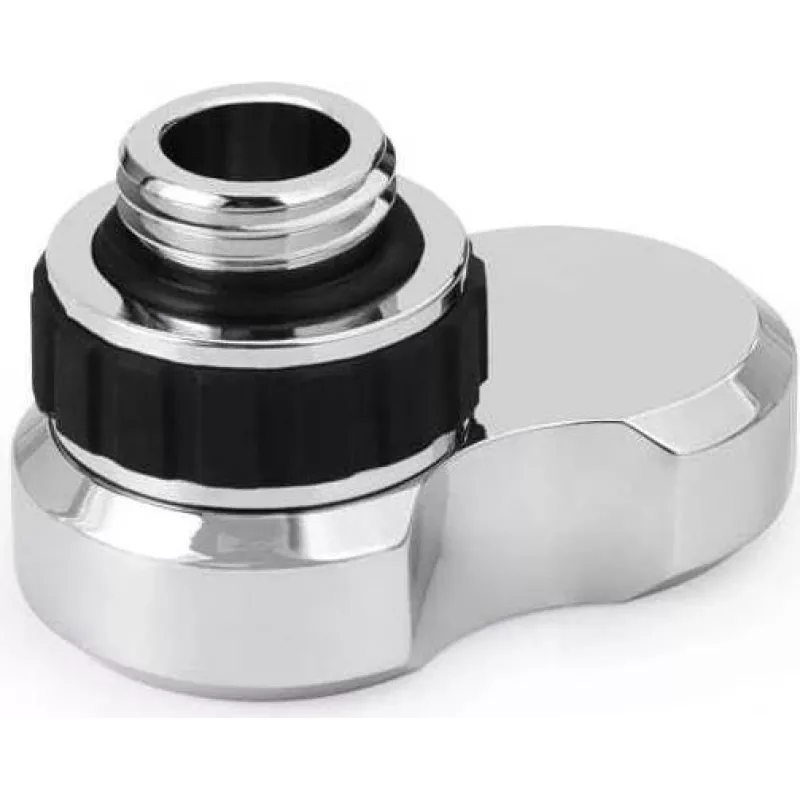

Alphacool Apex Grip Offset Adapter 16mm Male/Female G1/4 Swivel Chrome 14892

In tight water cooling loops, even a few millimetres of misalignment can stress tubing, strain fittings, and compromise the seal. The Alphacool Apex Grip Offset Adapter solves this by shifting the connection point 16 mm sideways, letting you line up ports perfectly without bending or kinking hoses. Its 360° swivel on the male thread means you can position the female port at any angle, simplifying complex routing in compact cases.

Who is it for

This adapter is built for PC enthusiasts and system integrators who demand clean, reliable loops. If you are working with rigid tubing, tight spaces, or multi-component layouts, this fitting gives you the flexibility to correct alignment errors and achieve a professional finish.

Main features

• 16 mm offset distance for precise spacing adjustment
• G1/4" male to G1/4" female BSPP threads
• 360° swivel on the male end for flexible orientation
• Solid brass construction with chrome plating
• NBR O-rings for long-lasting, leak-free seals
• Compatible with all standard PC water cooling components

Specifications

• Type: Offset adapter (male to female)
• Offset distance: 16 mm
• Thread standard: BSPP (G-thread)
• Male thread: G1/4"
• Female thread: G1/4"
• Rotatability: 360° swivel
• Material: Brass
• Finish: Chrome plated
• Colour: Silver
• Seal material: NBR O-rings
• Overall length: 30 mm
• Outer diameter: 23 mm
• Max operating temperature: 60 °C
• Max operating pressure: 1.5 bar
• Series: Alphacool Apex Grip

Tips

When installing, hand-tighten the male thread first, then adjust the swivel to your desired angle before securing the female connection. Avoid over-tightening to prevent stress on the O-rings. For best results, use with Alphacool Apex Grip fittings and compatible G1/4" components.
