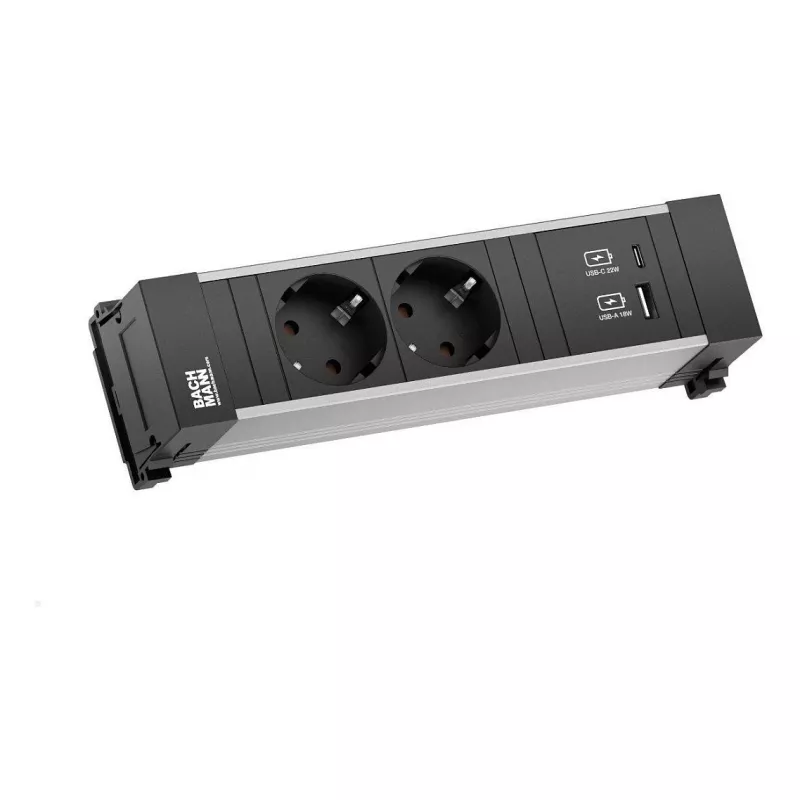

Bachmann Power Frame Desk Power Module 2x Schuko USB-A USB-C 22W 0.2m GST18 Silver

The Bachmann Power Frame is a premium desk power module designed for modern workplaces, offering a sleek and functional solution for integrating power and USB charging directly into your desk surface. This flush-mount module features two Schuko outlets (Type F) and a powerful 22W USB charger with both USB-A and USB-C ports, ensuring compatibility with a wide range of devices. The included 0.2m GST18i3 input cable allows for easy connection to a power source, making it ideal for office desks, conference tables, and workstations.

Advantages

Space-saving design with flush-mount installation for a clean, professional look. High-speed USB-C charging up to 20W for fast device charging. Integrated child protection for enhanced safety. Durable aluminum profile and plastic housing ensure long-lasting performance.

Suitable for

• Office desks and workstations
• Conference rooms and meeting tables
• Home office setups
• Educational and institutional environments

Key specifications

• Product Type: Desk Power Module
• Number of Power Outlets: 2 x Schuko (Type F, CEE 7/3)
• USB Charging Ports: 1x USB-A, 1x USB-C
• Total USB Output Power: 22 W
• USB-A Output: 5V / 2.4A (12W)
• USB-C Output: 5V / 3A, 9V / 2.22A, 12V / 1.67A (max 20W)
• Input Connector: GST18i3 plug (Wieland compatible)
• Input Cable Length: 0.2 m
• Rated Voltage: 250 V AC
• Rated Current: 16 A
• Frequency: 50/60 Hz
• Mounting Type: Flush mount, Desk integration
• Housing Material: Aluminum profile, Plastic
• Color: Silver (profile), Black (sockets/modules)
• Protection Class: IP20
• Safety Features: Integrated child protection
• Cut-out Dimensions (L x W): 195 x 46 mm

Recommendations

For optimal performance, ensure the cut-out dimensions match your desk surface. Compatible with standard GST18 power distribution systems. Ideal for use with laptops, tablets, smartphones, and other USB-charged devices.
