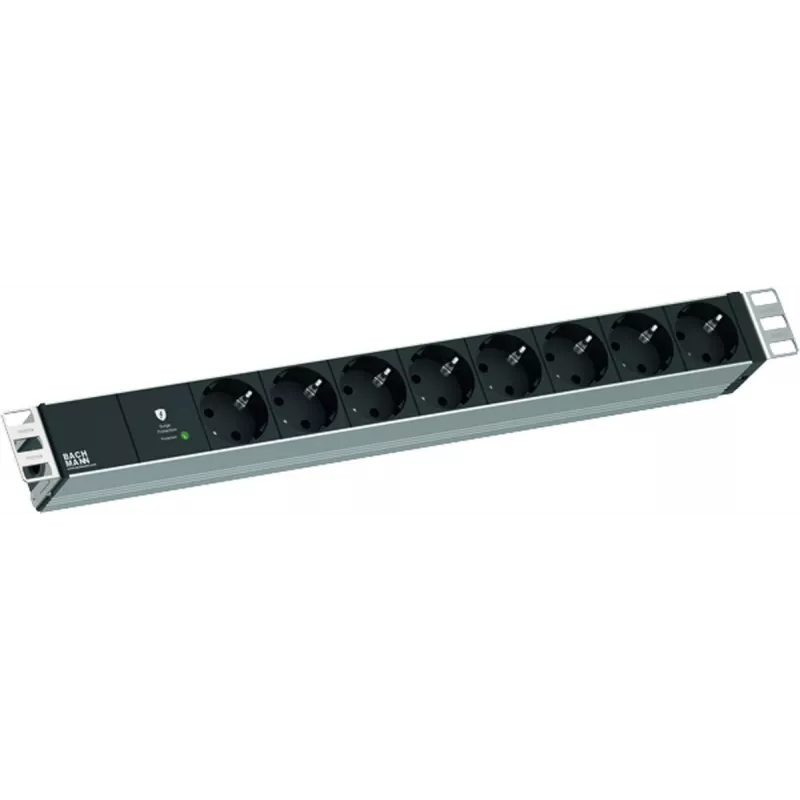

Bachmann 19 inch 1U 8x CEE7/3 PDU with Surge Protection, 2.0m Cable, Light Grey (RAL 7035) 800.3932

The Bachmann 800.3932 is a professional 19-inch rackmount power distribution unit (PDU) designed for data centers, server rooms, and industrial applications. With 8 Schuko (CEE7/3) outlets and integrated surge protection (SPD-Plus), it ensures reliable power distribution and equipment safety. The 2.0-meter input cable with CEE7/7 plug offers flexible installation, while the robust anodized aluminum housing in light grey (RAL 7035) guarantees durability and a clean appearance.

Advantages

• Integrated surge protection (SPD-Plus) safeguards connected devices from voltage spikes.
• 8 Schuko outlets provide ample connectivity for servers, network equipment, and peripherals.
• 1U horizontal rackmount design saves valuable rack space.
• Thermal circuit breaker for overload protection ensures operational safety.
• High-quality anodized aluminum housing ensures long service life and heat dissipation.

Suitable for

• 19-inch racks in data centers and server rooms
• IT and network infrastructure power distribution
• Industrial control cabinets and test benches
• Audio/video and broadcast equipment racks

Key specifications

• Form Factor: 19-inch Rackmount, 1U (1HE)
• Number of Outlets: 8 x CEE 7/3 (Schuko)
• Input Plug: CEE 7/7 (Schuko)
• Input Cable Length: 2.0 m
• Surge Protection: Yes (SPD-Plus)
• Nominal Voltage: 230V AC
• Nominal Current: 16A
• Max Power Rating: 3680W
• Housing Material: Anodized Aluminum
• Color: Light Grey (RAL 7035)
• Mounting Orientation: Horizontal
• Overload Protection: Yes (Thermal Circuit Breaker)
• Cable Entry: Rear
• Protection Class: IP20
• Operating Temperature: 0 - 45 °C
• Certifications: CE, RoHS

Recommendations

For optimal performance, ensure the total connected load does not exceed 3680W (16A at 230V). Use with a compatible UPS or power conditioner for enhanced protection. The PDU is ideal for environments requiring reliable power distribution with surge protection.
