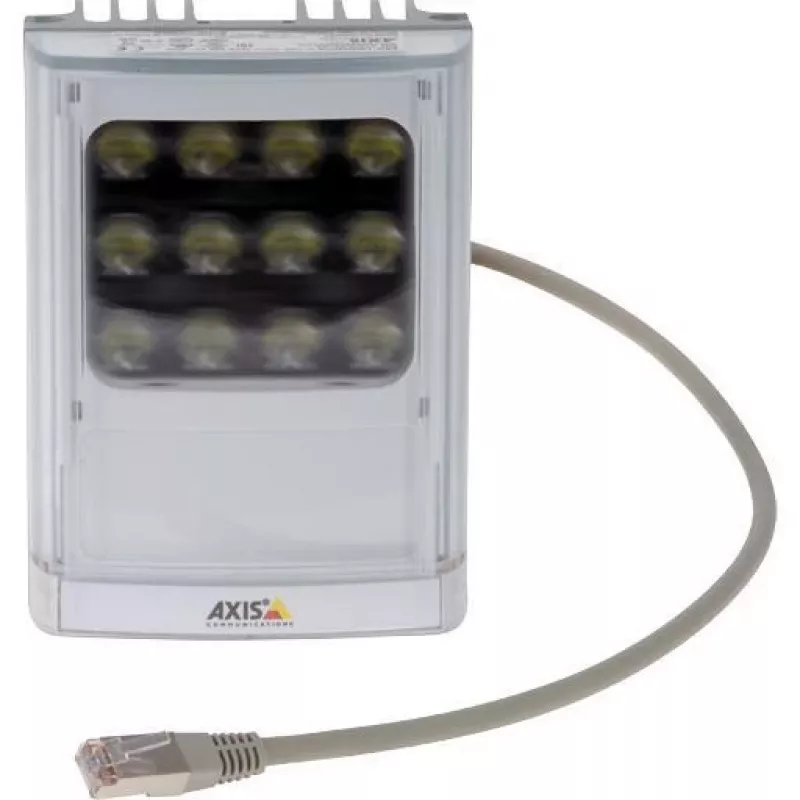

AXIS T90D25 White LED Illuminator for Network Cameras, 1000 lm, PoE, IP66/IP67, IK10, Wall/Ceiling/Pole Mountable

The AXIS T90D25 is a professional-grade white LED illuminator engineered to enhance the imaging capabilities of Axis network cameras in low-light or completely dark environments. Delivering up to 1000 lumens of daylight-white light, this compact and rugged lighting solution ensures crisp, color-accurate video surveillance around the clock. Its versatile mounting options and Power over Ethernet (PoE) connectivity simplify installation, making it an ideal choice for both indoor and outdoor security applications.

Advantages

With its high-intensity LED output and selectable beam angles, the T90D25 provides uniform illumination tailored to your specific surveillance area. The robust IP66/IP67 and IK10-rated housing withstands harsh weather and vandalism, ensuring reliable operation in demanding conditions. PoE support eliminates the need for separate power cabling, reducing installation costs and complexity. The long 50,000-hour LED lifespan minimizes maintenance, offering a cost-effective lighting solution over the long term.

Suitable for

• Perimeter security at industrial sites, warehouses, and parking facilities
• Outdoor surveillance in residential and commercial properties
• Indoor monitoring in large halls, retail spaces, and logistics centers
• Critical infrastructure protection where reliable night-time imaging is essential

Key specifications

• Illumination: White LED, up to 1000 lumens, 5000K daylight white
• Beam angles: 10°, 30°, 60°, 80°, 120° (interchangeable diffusers)
• Power: Power over Ethernet (PoE) IEEE 802.3af/at, max 12.95W
• Durability: IP66/IP67, IK10, aluminum housing with polycarbonate window
• Operating temperature: -40°C to 50°C (-40°F to 122°F)
• Mounting: Wall, ceiling, or pole (mounting bracket included)
• LED lifetime: 50,000 hours (L70 at 25°C)
• Connectivity: RJ45 Ethernet port
• Color rendering index (CRI): >70

Recommendations

For optimal performance, position the illuminator to avoid direct glare into the camera lens and adjust the beam angle to match the field of view. Ensure the PoE switch provides sufficient power budget and use outdoor-rated cabling for exterior installations. Regular cleaning of the front window will maintain light output and image quality.
