R270

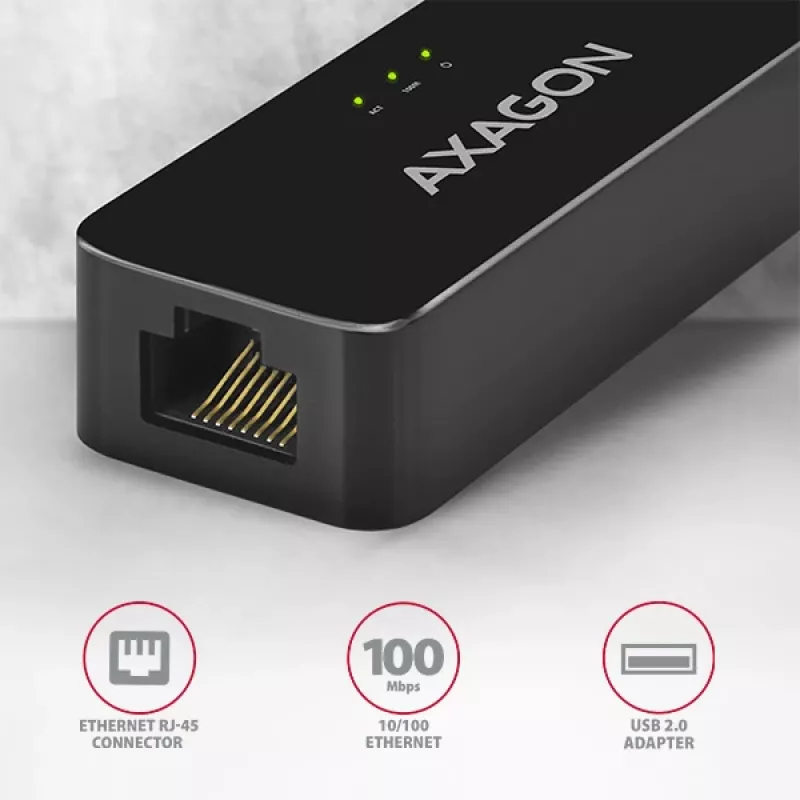

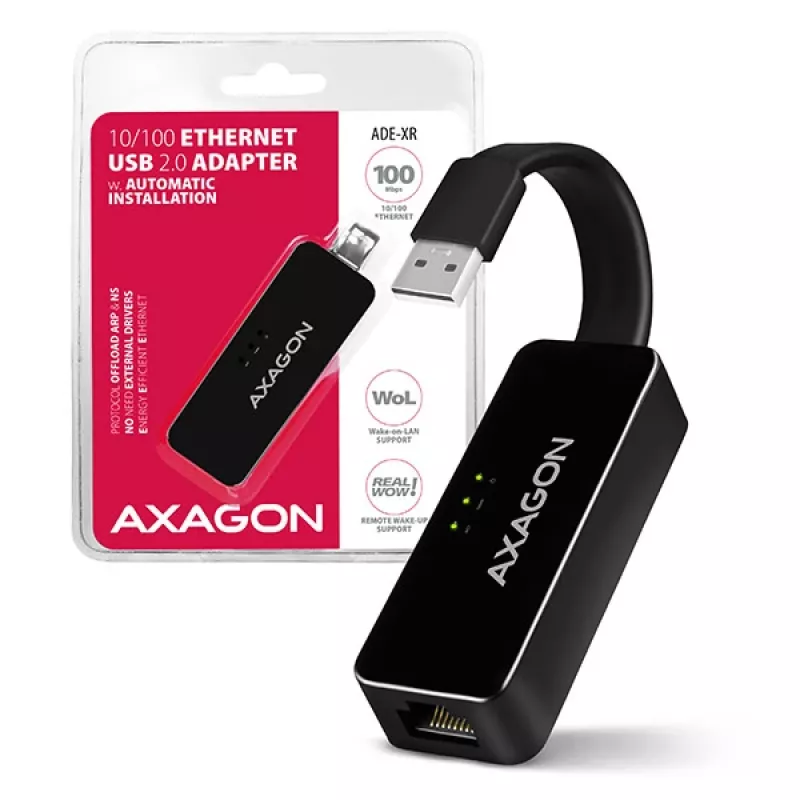

The compact AXAGON ADE-XR adapter converts a USB 2.0 port into a Fast Ethernet 10/100 Mbit RJ-45 port. It is powered from the USB bus, installs automatically in modern operating systems and works with Windows, Mac OS X and Linux.Key featuresRealtek RTL8152 chipsetAuto MDI/MDIX and 10/100 auto-detect... Read More
Stock 13 Code 99942 Brand AXAGON Model ADE-XR Warranty 3 Years

Shipping & Returns

Estimated delivery Wednesday, October 21
You will be kept updated through our detailed tracking system
Payment options
EFTPayFastBank CardSnapScanZapperGoogle PayApple PayMobicredMoreTymePay on Arrival

The compact AXAGON ADE-XR adapter converts a USB 2.0 port into a Fast Ethernet 10/100 Mbit RJ-45 port. It is powered from the USB bus, installs automatically in modern operating systems and works with Windows, Mac OS X and Linux.

Key features

  • Realtek RTL8152 chipset
  • Auto MDI/MDIX and 10/100 auto-detection

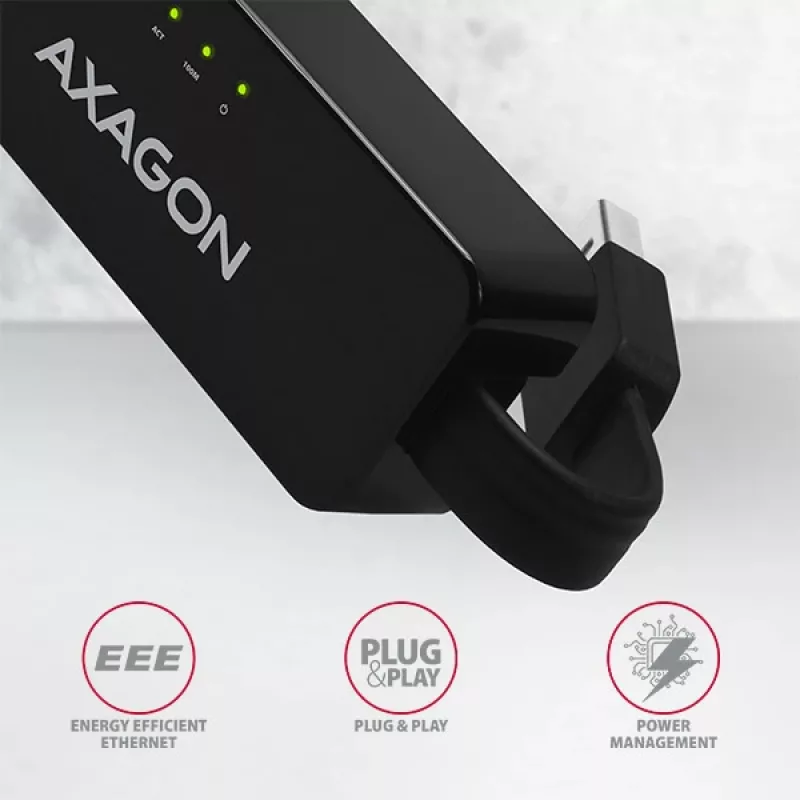

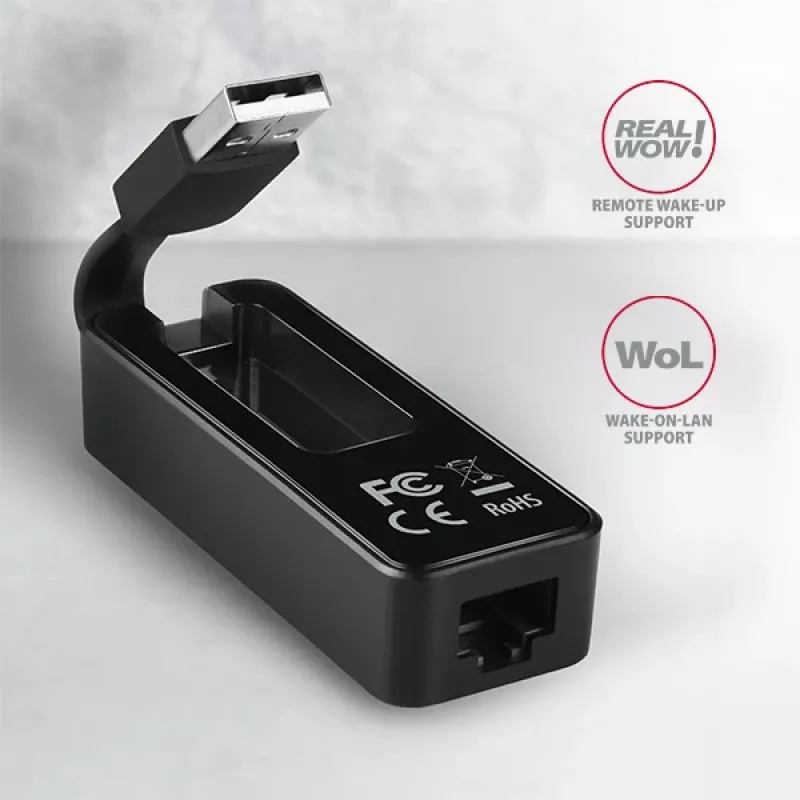

  • Wake-on-LAN and energy-efficient Ethernet (IEEE 802.3az)
  • 3 LEDs for network activity and link status

Specifications

  • Brand: AXAGON
  • Model: ADE-XR

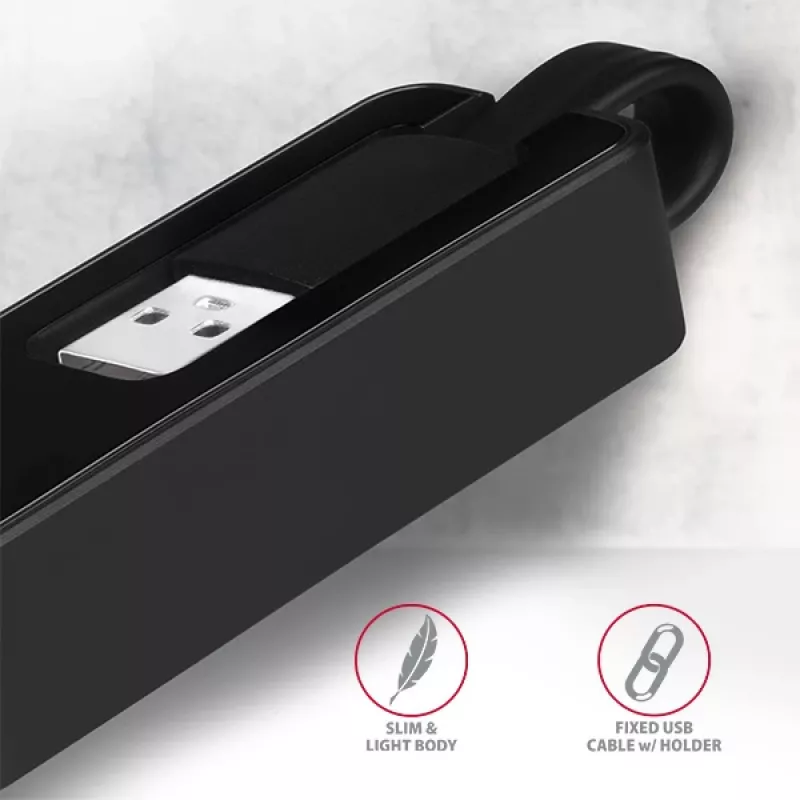

  • Input: USB 2.0 Type-A male on a 5 cm fixed cable
  • Output: Ethernet RJ-45, 10/100 Mbit/s
  • Dimensions: 72 x 27 x 16.5 mm
  • Weight: 23 g
  • Colour: black
  • Warranty: 24 months
Key Highlights
  • Input: USB 2.0 interface, backward compatible with USB 1.1; supports 480 / 12 / 1.5 Mbit/s. USB Type-A male on 5 cm permanently attached cable.
  • Output: Ethernet RJ-45 for UTP/STP; 10/100 Mb/s auto-detection; compliant with IEEE 802.3 10Base-T and IEEE 802.3u 100Base-TX.
  • Offload features: NDIS5/NDIS6 checksum offload (IPv4, IPv6, TCP, UDP), segmentation offload (Large send v1/v2).
  • Flow control and priorities: full-duplex with IEEE 802.3x flow control, IEEE 802.1P priority, IEEE 802.1Q VLAN tagging.
  • Energy and link features: IEEE 802.3az-2010 (EEE), Auto MDI/MDIX, hardware CRC, pair swap/polarity/skew correction.

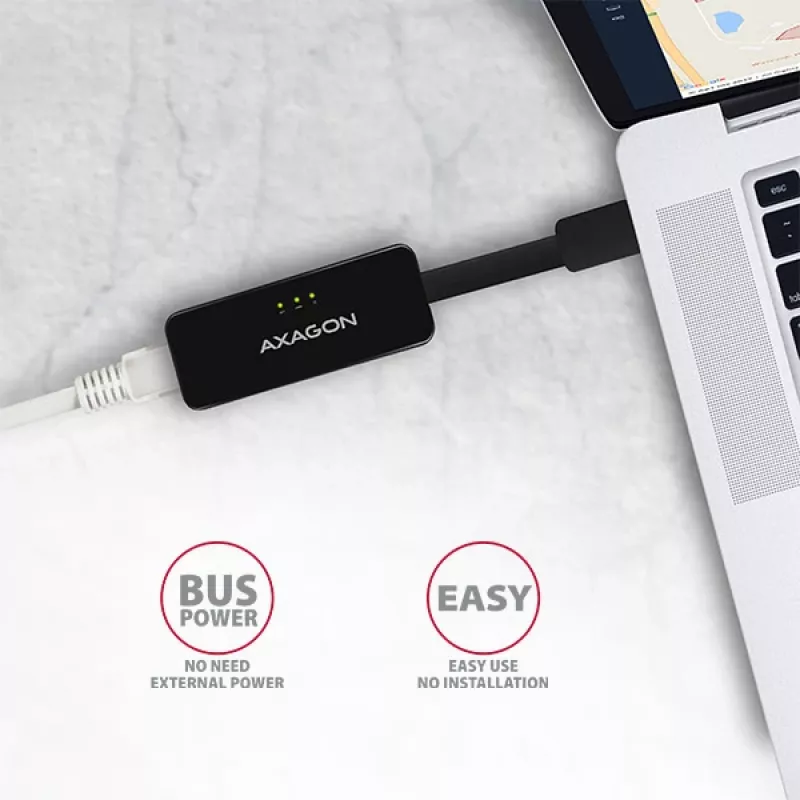

  • Other: Plug and Play, Hot Plug, CDC-ECM support, USB bus-powered, 3 LEDs indicating network activity, 100 Mbit link and USB connection.
  • Physical: dimensions 72 × 27 × 16.5 mm, USB cable length 5 cm, weight 23 g (including cable).
  • Chipset: Realtek RTL8152.
Specifications
Cable length
0.05 m
Cables included
USB
Cabling technology
10/100BaseT(X)
Certification
CE, RoHS
Chipset
Realtek RTL8152
Compatible operating systems
MS Windows XP / Vista / 7 / 8 / 8.1 / 10 and later, Windows Server 2003 / 2008 / 2012 / 2016 and later (supported are all 32- and 64-bit versions of OS Windows), Mac OS X 10.6 and higher, Linux kernel 2.6.x and above, Android most versions.
Compliance certificates
RoHS, CE
Component for
PC/Laptop
Connectivity technology
Wired
Country of origin
China
Data transfer rate
0.1 Gbit/s
Depth
16.5 mm
Ethernet interface type
Fast Ethernet
Ethernet LAN
Yes
Ethernet LAN (RJ-45) ports
1
Ethernet LAN data rates
10,100 Mbit/s
Full duplex
Yes
Height
27 mm
Host interface
USB
Housing material
Plastic
Interface
Ethernet
Internal
No
LED indicators
Yes
Linux operating systems supported
Yes
Mac operating systems supported
Yes
Manual
Yes
Maximum data transfer rate
100 Mbit/s
Networking standards
IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Package depth
72 mm
Package height
24 mm
Package weight
44 g
Package width
120 mm
Plug and Play
Yes
Product colour
Black
Server operating systems supported
Yes
USB powered
Yes
USB version
2.0
VLAN support
Yes
Wake-on-LAN ready
Yes
Warranty period
2 year(s)
Weight
23 g
Width
72 mm
Windows operating systems supported
Yes

Manual

Open Manual

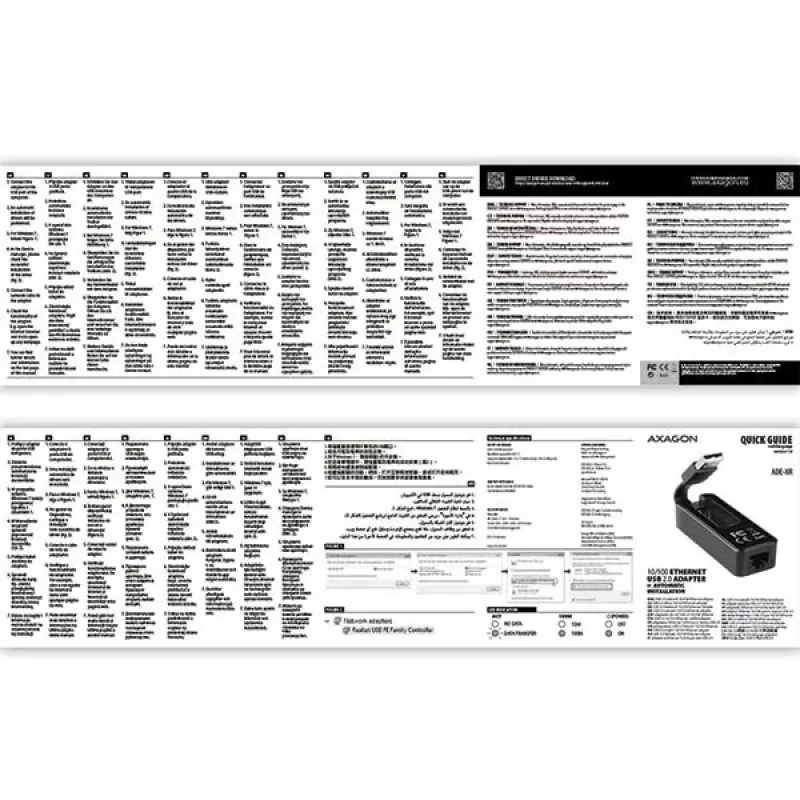

Leaflet

Open Leaflet
