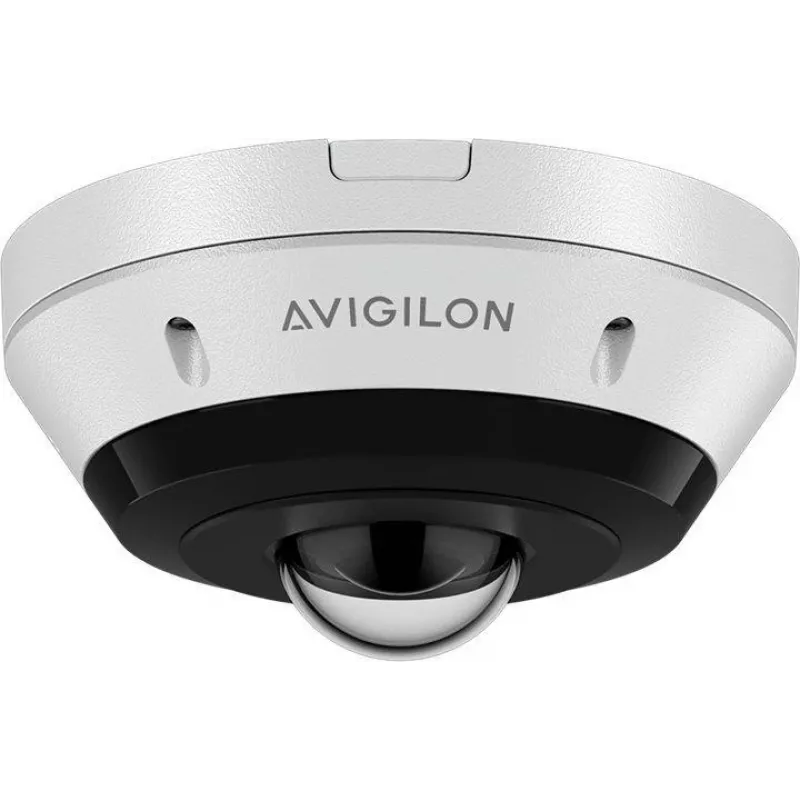

Avigilon H6A Fisheye Camera, 360° View, Up to 12MP, Flush Mount (8.0C-H6A-FE-DC1)

The Avigilon H6A Fisheye Camera (8.0C-H6A-FE-DC1) delivers 360° omnidirectional surveillance with up to 12MP resolution, ideal for open areas such as lobbies, warehouses, and retail spaces. Its flush mount design ensures discreet installation while providing comprehensive coverage without blind spots.

Advantages

With a 1.2 mm fisheye lens and 8MP sensor (3264 x 2448), this camera captures every detail in a full 360° field of view. True day/night functionality with IR cut filter ensures clear images 24/7, even in low light (0.05 lux color, 0.01 lux B/W). Built-in analytics including Avigilon Appearance Search and Unusual Motion Detection enhance security intelligence.

Suitable for

• Large indoor spaces requiring complete area coverage
• Retail stores, warehouses, and open office environments
• Applications needing high-resolution 360° monitoring

Key specifications

• Sensor Resolution: 8 Megapixel (3264 x 2448)
• Lens: Fisheye, Fixed, 1.2 mm, F2.0
• Field of View: 360° Omnidirectional
• Video Compression: H.264, H.265, MJPEG
• Max Frame Rate: 30 fps
• Day/Night: True Day/Night with IR Cut Filter
• Minimum Illumination: 0.05 lux (Color), 0.01 lux (B/W)
• Audio: Built-in Microphone, Audio Input/Output
• Network: 100BASE-TX Ethernet (RJ-45)
• Power: PoE (IEEE 802.3af Class 3) / 12 VDC
• Local Storage: MicroSD/SDHC/SDXC slot (up to 256 GB)
• Environmental Protection: IP66
• Vandal Resistance: IK10
• Operating Temperature: -10°C to +50°C (14°F to 122°F)
• Analytics: Avigilon Appearance Search, Unusual Motion Detection, Object Detection
• De-warping: On-camera and Client-side
• ONVIF Support: Profile S, G, T

Recommendations

For optimal performance, pair with Avigilon Control Center (ACC) software and use a PoE switch. Ensure the mounting surface is flat and sturdy for flush installation. The camera supports up to 256 GB microSD card for edge storage.
