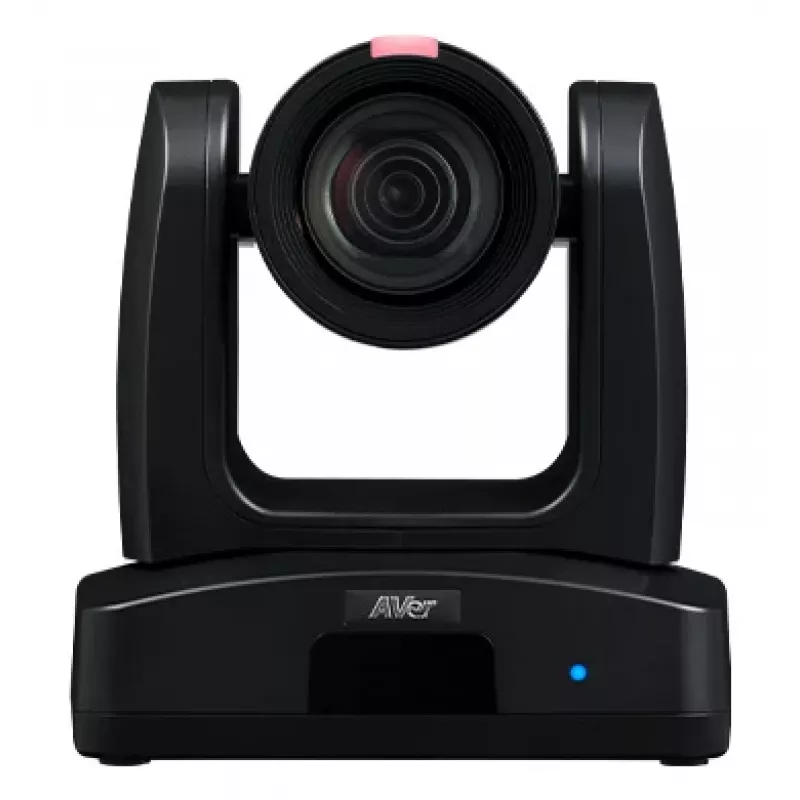

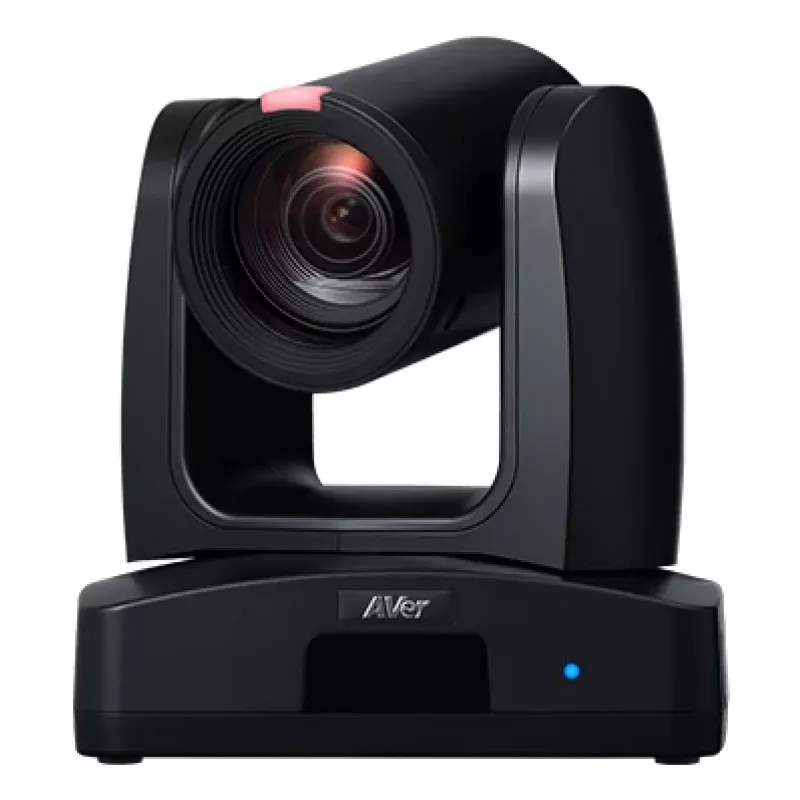

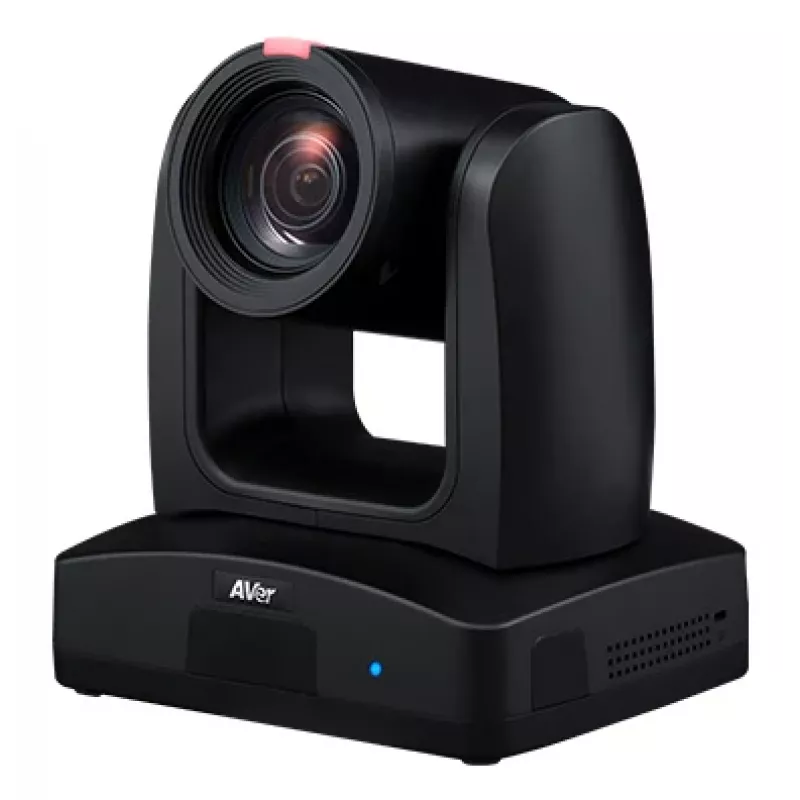

AVer PTZ310UV2B Professional PTZ Camera 4Kp60 12x Zoom

The AVer PTZ310UV2B is a professional PTZ camera designed for high-quality video capture in education, corporate, and broadcast environments. With 4Kp60 resolution and 12x optical zoom, it delivers crisp, detailed images. The camera supports multiple video outputs including HDMI, USB 3.1 Type-B, and IP (RJ45), making it versatile for various setups. It features a wide pan range of ±170° and tilt range of +90°/-30°, ensuring comprehensive coverage. Control is flexible via RS-232, RS-422, IP, or USB, with support for VISCA, PELCO-D/P, ONVIF, and CGI protocols. Power options include DC 12V and PoE+ for simplified installation. The built-in tally light provides visual status indication.

Advantages

Exceptional 4Kp60 video quality with 12x optical zoom for detailed close-ups. Multiple connectivity options (HDMI, USB, IP) ensure compatibility with a wide range of systems. Flexible control protocols allow integration with existing control systems. PoE+ support reduces cabling and simplifies installation. The built-in tally light enhances studio workflows.

Suitable for

• Lecture capture in educational institutions
• Video conferencing in corporate boardrooms
• Live event production and broadcasting
• House of worship streaming
• Medical and training environments

Key specifications

• Sensor: 1/2.8" 2MP CMOS
• Max Resolution: 1080p/60fps
• Optical Zoom: 12x
• Digital Zoom: 12x
• Pan Range: ±170°
• Tilt Range: +90°/-30°
• Video Outputs: HDMI, USB 3.1 Type-B, IP (RJ45)
• Audio Input: 3.5mm Line-in
• Control Interfaces: RS-232 (In/Out), RS-422, IP (RJ45), USB
• Control Protocols: VISCA, PELCO-D/P, ONVIF, CGI
• Power: DC 12V, PoE+ (IEEE 802.3at)
• Minimum Illumination: 0.5 Lux
• Horizontal Field of View: 78° (Wide) - 7.4° (Tele)
• Video Compression: H.264, H.265, MJPEG
• Preset Positions: 256
• Built-in Tally Light: Yes

Recommendations

For optimal performance, use a PoE+ switch or injector to power the camera and transmit data over a single cable. Pair with a compatible PTZ controller or software for seamless operation.
