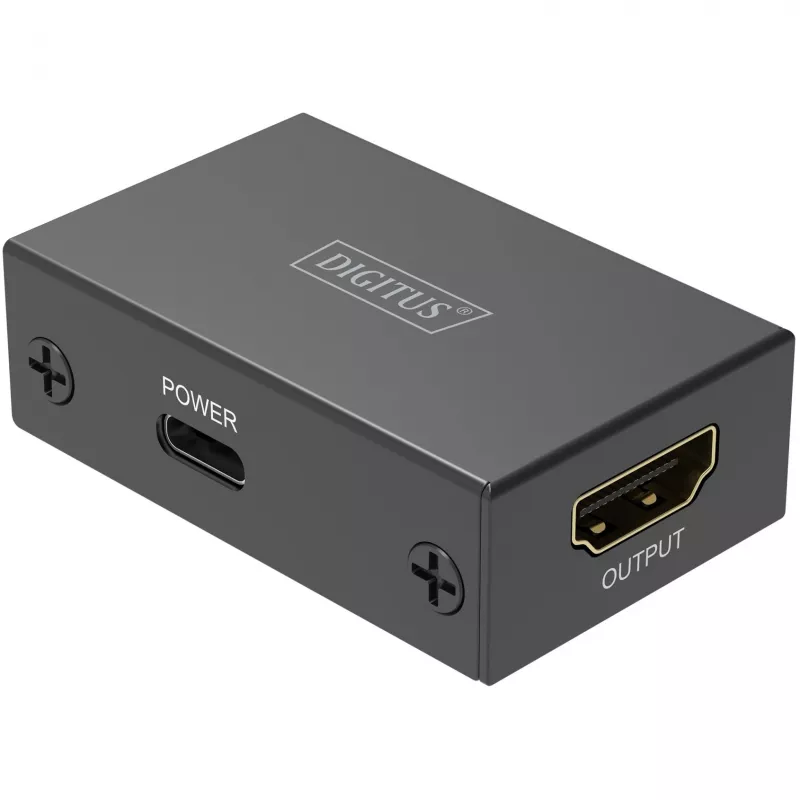

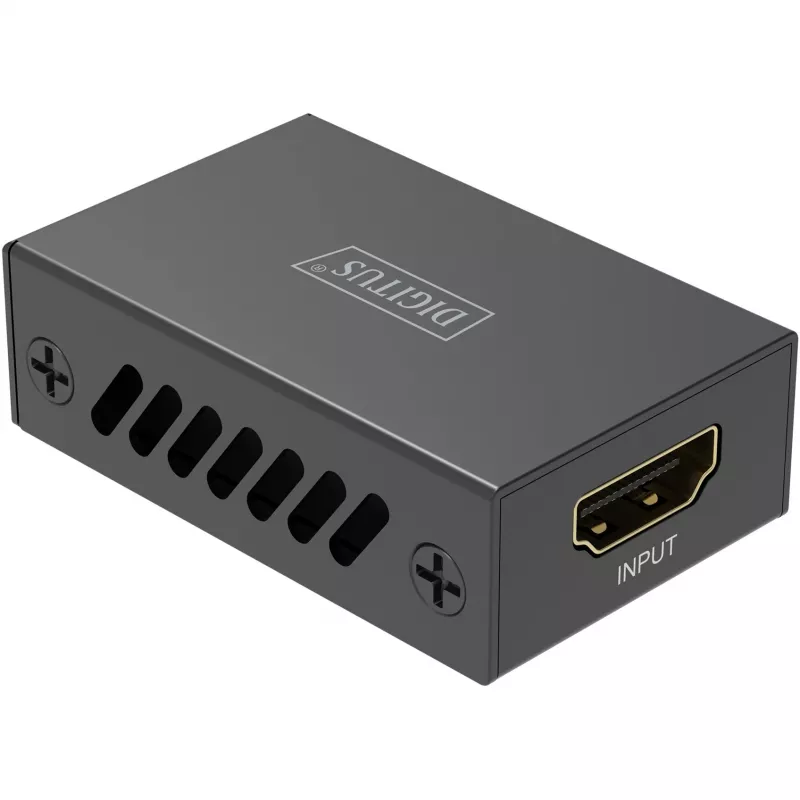

AV Repeater Digitus HDMI Repeater 8K/60Hz Maximum Resolution 7680 x 4320

The DIGITUS 8K HDMI Repeater extends HDMI signals, allowing connection chains of two HDMI cables to reach up to 10 m at 8K/60Hz (4:4:4) or up to 13 m at 4K/60Hz (4:4:4). The device supports HDMI 2.1 with a maximum bandwidth of 48 Gbps and HDCP 2.3 compatibility. Its ultra-slim housing is designed for in-line placement between source and display, and it can accept power delivered over the HDMI cable from the signal source.

Advantages

The repeater enables longer HDMI runs without degrading 8K and 4K signal quality and preserves deep color (36-bit) support. Built-in power-over-HDMI allows operation without an external power adapter in many setups, while an included USB-C cable provides an optional power input when the source does not supply sufficient power. Compact, ultra-slim design simplifies installation and minimizes visible cabling.

Key specifications

• Max. resolution: 8K/60Hz (4:4:4)
• Video bandwidth: 48 Gbps
• Standard: HDMI 2.1
• HDCP support: HDCP 2.3
• Color depth: Deep Color 36-bit
• Extension lengths: up to 10 m for 8K/60Hz (5 m input + 5 m output); up to 13 m for 4K/60Hz (8 m input + 5 m output)
• Power: primary supply via HDMI cable (signal source); optional USB-C power input (USB-C cable included)
• Design: ultra-slim, in-line repeater

How to use

Connect the repeater inline between the source and the display using two HDMI cables according to the required extension length (for 8K/60Hz use up to 5 m input + 5 m output; for 4K/60Hz use up to 8 m input + 5 m output). If the signal source provides 5V over HDMI, the repeater will draw power directly from the HDMI connection. If additional power is needed, connect the supplied USB-C cable to a suitable 5V USB-C power source. Verify that connected cables and devices support HDMI 2.1 and HDCP 2.3 to achieve the listed resolutions and color depth.
