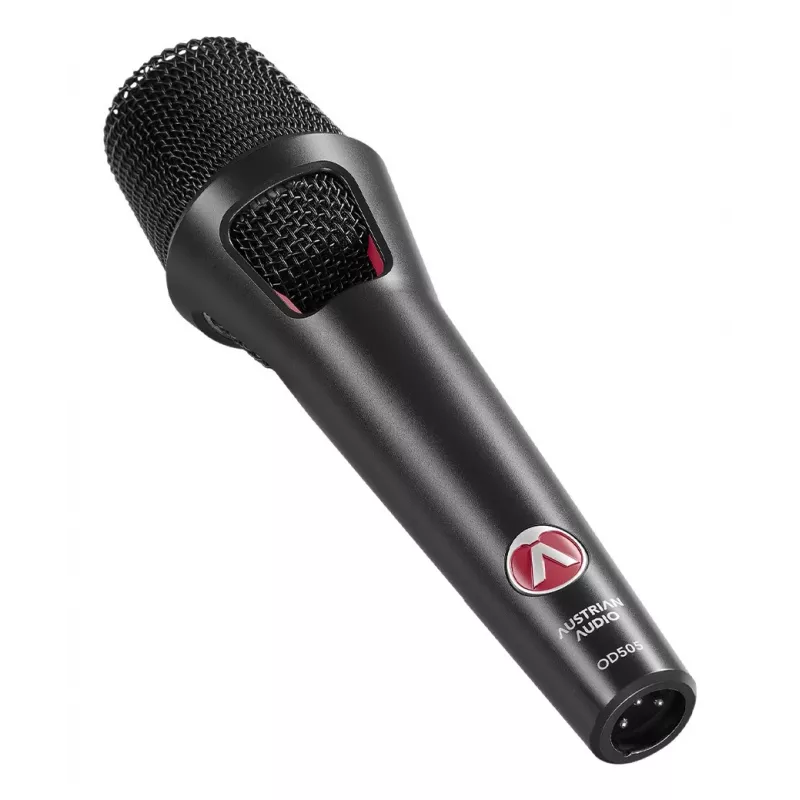

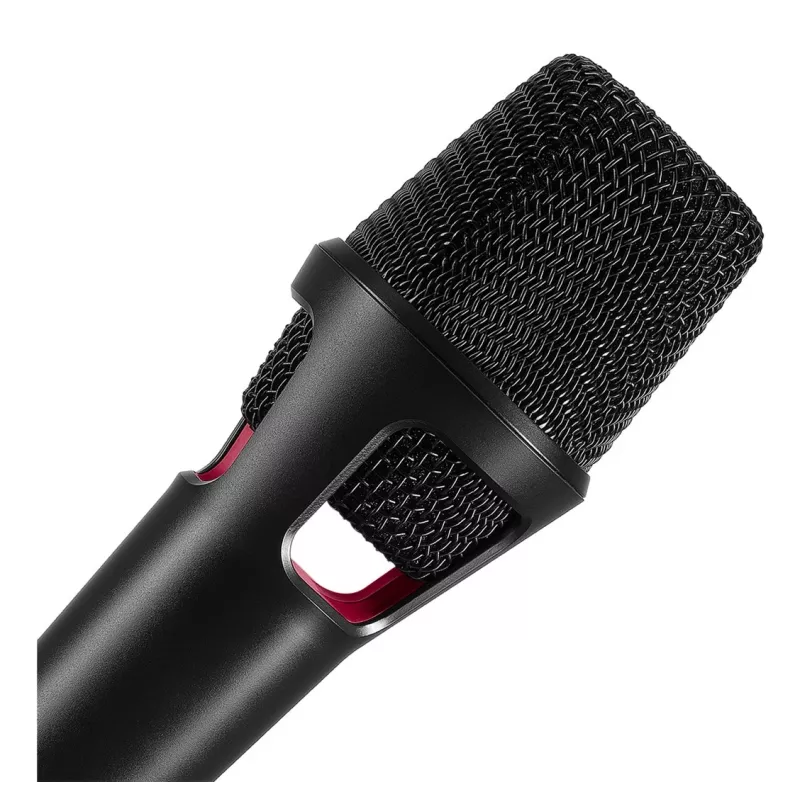

Austrian Audio OD505 Active Dynamic Microphone

The Austrian Audio OD505 is a professional active dynamic microphone designed for live vocal performances and studio recording. Featuring innovative Open Acoustic Technology (OAC) dual capsule design, it delivers exceptional sound clarity and feedback rejection. The active circuitry ensures consistent performance even over long cable runs, making it a reliable choice for demanding stage and studio environments.

Advantages

Active dynamic design provides high output and consistent sound quality without the need for phantom power? Actually, it requires 48V phantom power. The supercardioid polar pattern offers excellent off-axis rejection, minimizing background noise and feedback. The die-cast zinc housing ensures durability for touring and daily use.

Suitable for

• Live vocal performances on stage
• Studio recording of vocals and instruments
• Broadcast and podcast applications
• Any professional audio environment requiring high-quality dynamic microphone

Key specifications

• Microphone type: Active Dynamic
• Polar pattern: Supercardioid
• Frequency response: 35 Hz - 16 kHz
• Sensitivity: 4.4 mV/Pa
• Equivalent noise level: 16 dB SPL (A-weighted)
• Max SPL: 154 dB SPL
• Impedance: 275 Ohms
• Recommended load impedance: >1 kOhm
• Phantom power requirement: 48V DC
• Connector: XLR 3-pin
• Housing material: Die-cast Zinc
• Included accessories: OCL008 Microphone Clip, MSC001 Carry Bag

Recommendations

The Austrian Audio OD505 is an excellent choice for vocalists and sound engineers seeking a robust, high-performance microphone that excels in live and studio settings. Its active circuitry and supercardioid pattern provide superior sound quality and feedback control.
