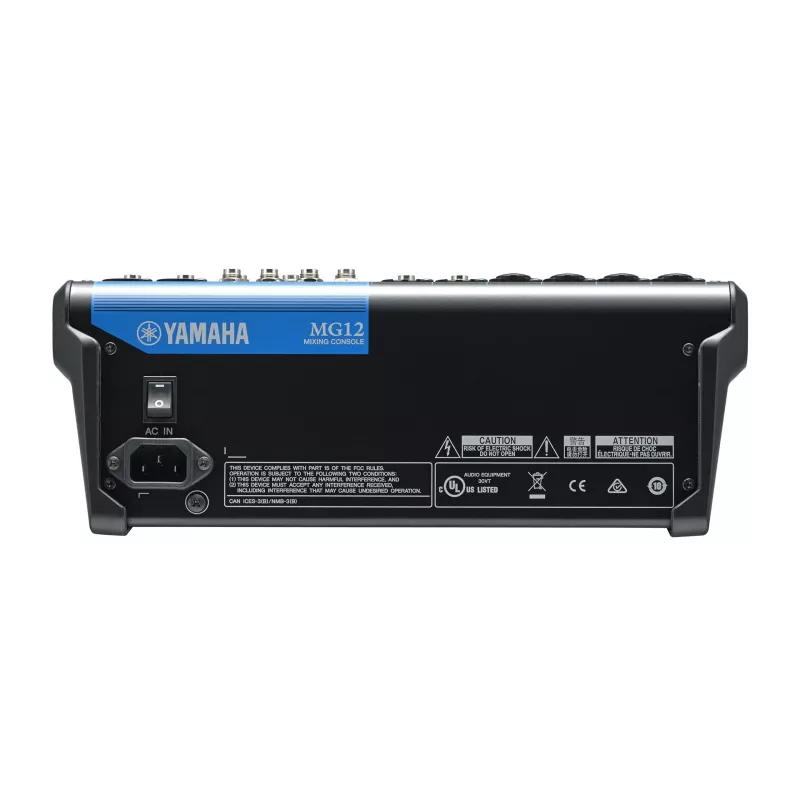

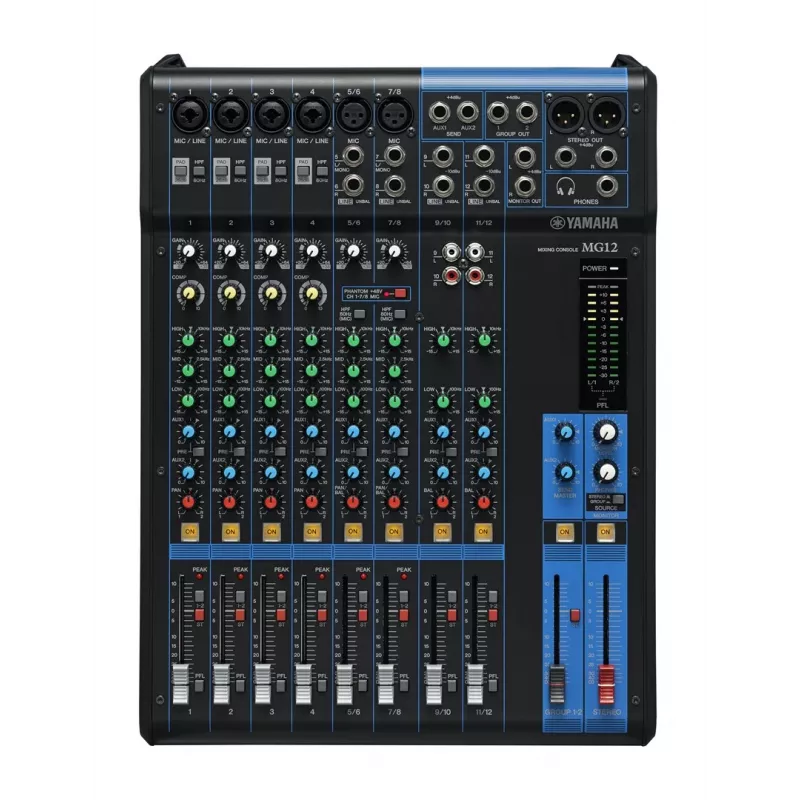

Audio mixer YAMAHA MG12 12-channel, 24-bit DSP, 192 kHz sample rate, 48V phantom power

The YAMAHA MG12 is a 12-channel audio mixer designed for live sound, studio recording and broadcast applications. It combines 24-bit digital signal processing with a 192 kHz sample rate to maintain audio clarity, and features low distortion (THD 0.03%), +48V phantom power for condenser microphones, and a 6.3 mm headphone output. The compact metal chassis and desktop dimensions make it suitable for small control rooms, stage setups and mobile rigs. The console includes D-PRE mic preamps, 1-knob compressors on selected channels, PAD switches on mono inputs, stereo and group buses, AUX returns including FX, and balanced XLR outputs for reliable routing and monitoring.

Advantages

The MG12 offers precise sound quality through 24-bit DSP and a high 192 kHz sample rate while keeping overall distortion very low. D-PRE inverted Darlington mic preamps deliver clean, natural microphone gain and the built-in 1-knob compressors simplify dynamics control without complex parameter editing. A universal internal power supply supports global use and the metal chassis provides durable, rack-compatible construction when used with an optional rack kit. Physical controls and clear routing options allow quick setup and operation in live and studio environments.

Suitable for

Key specifications

How to use

Place the mixer on a stable surface or mount it in a rack using the optional RK-MG12 kit. Connect microphones to the mono XLR inputs and line sources to the appropriate line jacks. Engage +48V phantom power when using condenser microphones, and use the PAD switches to avoid clipping on hot sources. Adjust gain with the D-PRE preamp controls, apply the 1-knob compressor to control dynamics where needed, and route signals to the main stereo bus or group buses as required. Use AUX sends for foldback or external effects and monitor through the balanced XLR outputs or the 6.3 mm headphone output. Power the unit via the internal universal supply and confirm levels on meters before a performance or recording.

Recommendations

For best results, set input gains so meters peak below clipping, enable phantom power only for condenser microphones, and use the 1-knob compressors sparingly to preserve natural transients. Regularly check connectors and cable integrity, and consider the optional rack kit for secure installation in touring or fixed-installation environments.
