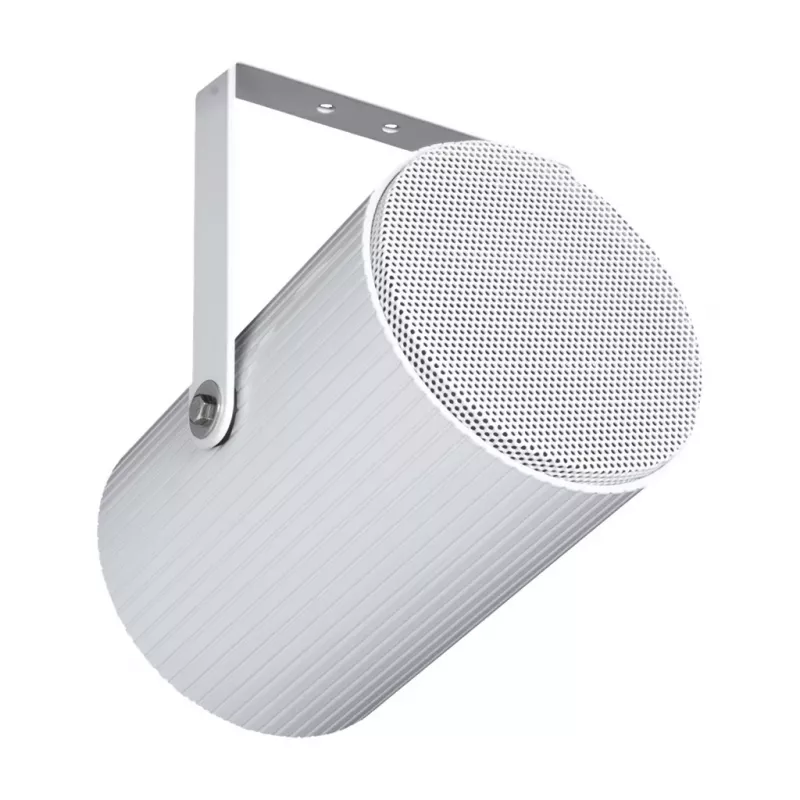

Audac SP22 Sound Projector 20W 100V White

The Audac SP22 is a high-performance sound projector designed for professional audio installations requiring clear and intelligible speech reproduction. With a robust 20W RMS power handling and versatile 100V line transformer, this speaker is ideal for public address systems in commercial environments such as retail stores, offices, schools, and hospitality venues. Its compact yet powerful design ensures excellent sound coverage with a wide dispersion pattern, making it a reliable choice for both indoor and outdoor applications.

Advantages

The SP22 offers exceptional durability with an IP56 rating, protecting against dust and water jets. The ABS housing and aluminum grille provide long-lasting performance in demanding conditions. The adjustable U-bracket allows flexible mounting, while the screw terminal block ensures secure and easy installation. With a sensitivity of 92 dB and a maximum SPL of 105 dB, this sound projector delivers clear audio even in noisy environments.

Suitable for

• Public address systems in retail stores, supermarkets, and shopping malls
• Background music and announcements in offices, schools, and hospitals
• Outdoor areas such as terraces, courtyards, and covered walkways
• Industrial facilities requiring robust and weather-resistant speakers

Key specifications

• RMS Power: 20 W
• Max Power: 40 W
• Impedance: 8 Ω (Low-Z) / 100V (High-Z)
• 100V Transformer Taps: 20W, 10W, 5W, 2.5W
• Frequency Response (±3dB): 100 Hz - 15 kHz
• Sensitivity (1W/1m): 92 dB
• Max SPL: 105 dB
• Driver Size: 5.25" Full-range
• Dispersion (H x V @ 1kHz): 150° x 130°
• IP Rating: IP56
• Construction Material: ABS Housing, Aluminum Grille
• Mounting Type: U-bracket (adjustable)
• Input Connection: Screw Terminal Block
• Colour: White
• Transformer Type: Line Transformer (100V)
• Product Type: Sound Projector

Recommendations

The Audac SP22 is a versatile and reliable sound projector that combines high-quality audio performance with robust construction. Its 100V line transformer makes it compatible with standard PA systems, and the IP56 rating ensures long-term reliability in challenging environments. Ideal for installers seeking a cost-effective solution for clear speech and background music.
