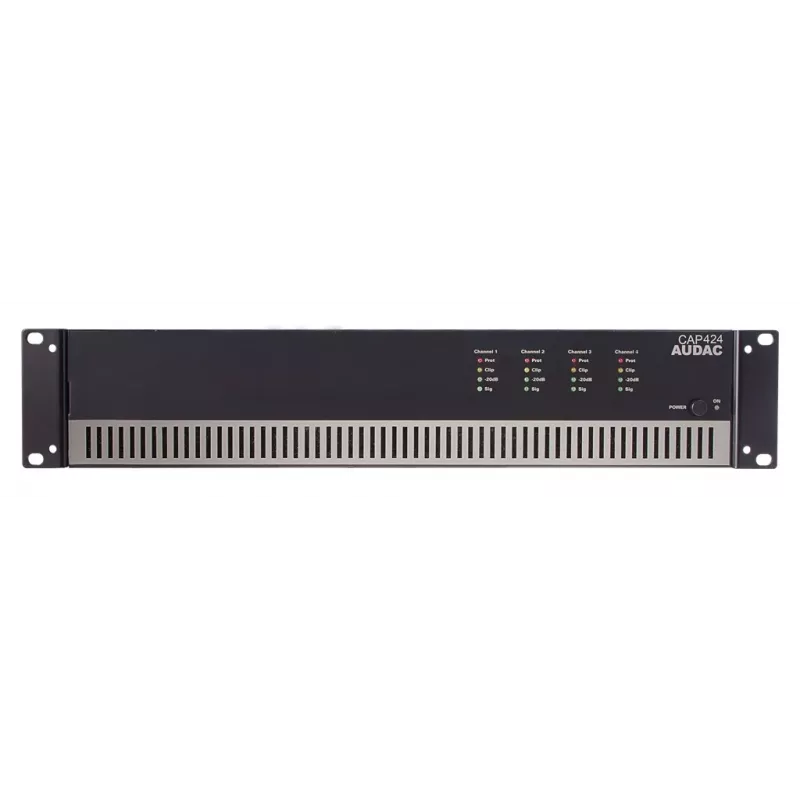

Audac CAP424 4-Channel Power Amplifier 4x240W 100V

Audac CAP424 4-Channel Power Amplifier 4x240W 100V
Audac CAP424 4-Channel Power Amplifier 4x240W 100V
R27,125
The Audac CAP424 is a professional 4-channel power amplifier delivering 4 x 240W RMS output, designed for 100V, 70V, or 4 Ohm systems. Ideal for commercial and public address installations, this Class D amplifier offers high efficiency and reliability in a compact 2U rack-mountable chassis.Advantage... Read More
Stock Out Of StockNo Stock Code 3100762 Brand AUDAC Model CAP424 Warranty 2 Years

Shipping & Returns

The Audac CAP424 is a professional 4-channel power amplifier delivering 4 x 240W RMS output, designed for 100V, 70V, or 4 Ohm systems. Ideal for commercial and public address installations, this Class D amplifier offers high efficiency and reliability in a compact 2U rack-mountable chassis.

Advantages

High power output with low distortion, selectable output modes per channel, and comprehensive protection circuits ensure safe and stable operation. The forced convection cooling system maintains performance even under heavy load.

Suitable for

  • Commercial sound systems (retail, hospitality)
  • Public address installations
  • Background music and paging systems
  • Multi-zone audio distribution

Key specifications

  • Output Power (RMS): 4 x 240 W
  • Output Channels: 4
  • Output Type: 100V / 70V / 4 Ohm (selectable per channel)
  • Amplifier Class: Class D
  • Frequency Response: 50 Hz - 20 kHz
  • Signal to Noise Ratio: > 95 dB
  • Total Harmonic Distortion + Noise (THD+N): < 0.3%
  • Input Sensitivity: 0 dBV (1V RMS)
  • Input Impedance: 10 kΩ (balanced)
  • Cooling System: Forced convection (fan)
  • Protection Circuits: Overload, Short circuit, Overheating, DC protection
  • Power Supply: 230-240 VAC / 50-60 Hz
  • Power Consumption (Max): 1200 W
  • Rack Space: 2U
  • Input Connectors: 4 x XLR (balanced)
  • Output Connectors: 4 x Terminal block (Euroblock)
  • Indicators: Power, Signal, Clip, Protect

Recommendations

For optimal performance, use with 100V speakers and ensure proper ventilation. The amplifier is suitable for both fixed installations and portable rack systems.

Specifications
AC input voltage
230-240 VAC
Amplifier class
Class D
Audio output channels
4 channels
Brand
Audac
Category
Power Amplifiers
Connectivity technology
Wired
EAN
5414795031166
Frequency range
50 Hz - 20 kHz
LED indicators
Power, Signal, Clip, Protect
Model
CAP424
MPN
CAP424
Purpose
Public Address (PA) System
RMS power output per channel (4 Ohm)
240 W
Signal-to-Noise Ratio (SNR)
> 95 dB
Speakers connectivity type
Terminal block (Euroblock)
Total Harmonic Distortion (THD)
< 0.3%
Weight
5 kg
