ATEN 8-Port 17 inch LCD KVM Switch (USB - PS/2 VGA) with USB Peripheral port

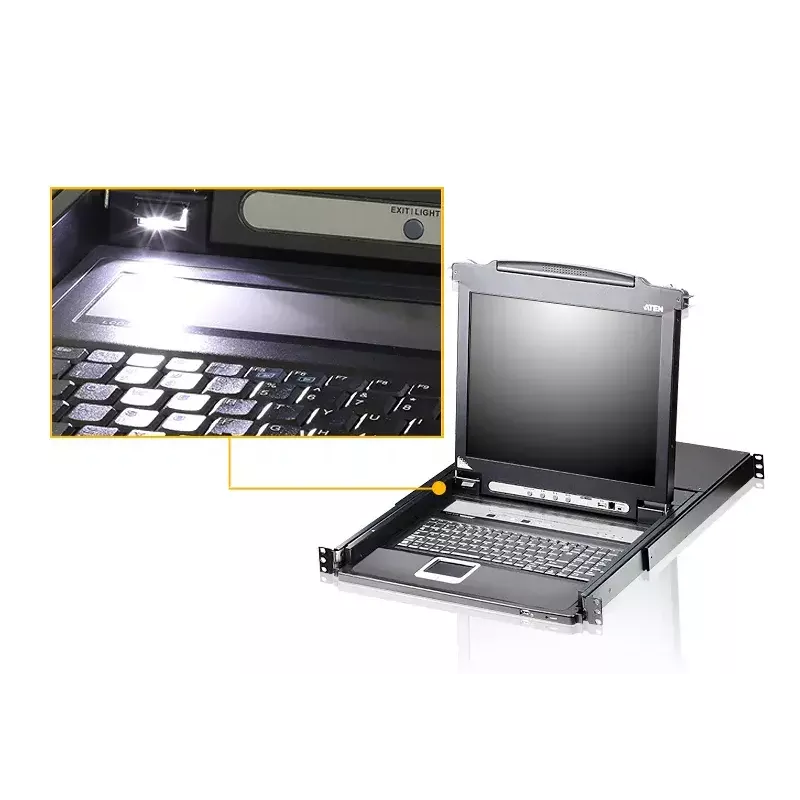

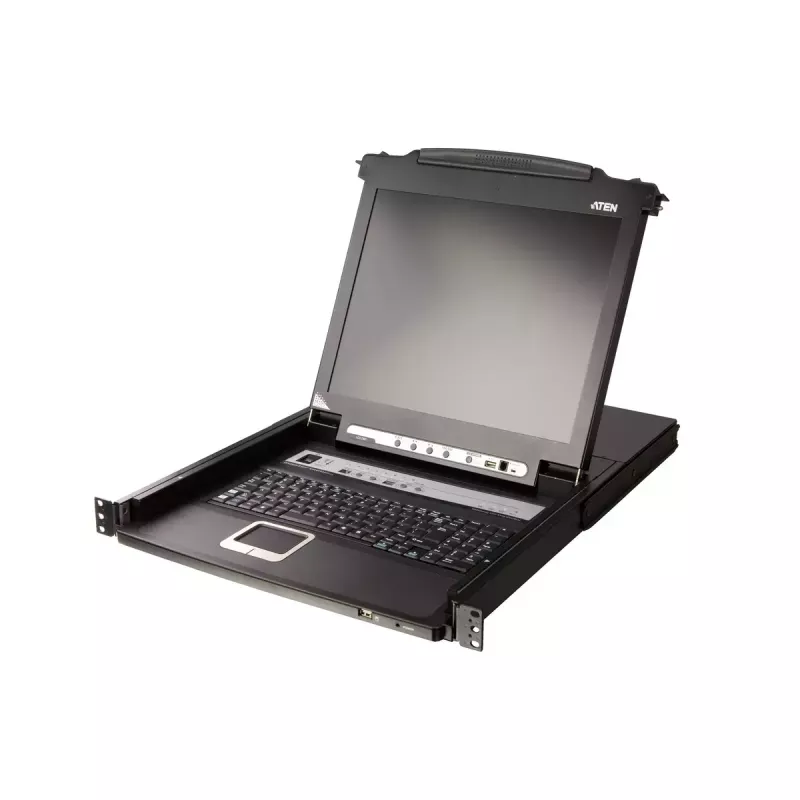

The ATEN CL5708M Rack mounting Black 1U 17" LCD is a slideaway KVM switch that consolidates keyboard, video and mouse control for multiple servers into a single 1U rack-mounted unit. Featuring a 17" LED-backlit LCD display and an integrated touchpad and keyboard, this model supports resolutions up to 1920 x 1200 and is constructed from metal and plastic for rack use. It operates on AC power (100–240 V, 50/60 Hz) and follows a modular design that allows the KVM console section to be detached from the switch section for maintenance.

Advantages

The CL5708M saves rack space by integrating a 17" LCD, keyboard and touchpad into a single 1U slideaway housing while providing support for both PS/2 and USB console connections. It can control up to 8 computers directly and can be expanded via daisy-chaining to manage up to 256 systems from one console. The metal and plastic construction provides durable mounting in standard server racks, and optional fingerprint identification enhances access control when required.

Suitable for

• Data centers requiring consolidated local server access in limited rack space
• Server rooms where quick local maintenance and monitoring of multiple machines is needed
• Network closets and enterprise racks that require a built-in console with a 17" display

Key specifications

• Display size: 17" LED-backlit LCD
• Maximum supported resolution: 1920 x 1200 pixels
• Rack height: 1U
• Console interfaces: PS/2 and USB (keyboard/mouse)
• Expandable via daisy-chaining to support up to 256 computers
• Construction materials: metal and plastic
• Power: AC 100–240 V, 50/60 Hz
• Modular design with detachable KVM console section

How to use

Install the CL5708M into a standard 19" rack using the appropriate 1U mounting hardware. Connect the console keyboard/mouse and monitor as required, then attach server KVM cables to the switch ports using PS/2 or USB connections depending on server interfaces. Power the unit from a compatible AC source within the specified voltage and frequency range. For larger deployments, daisy-chain additional compatible KVM switches to expand control to more hosts. If fingerprint access is desired, install and configure the optional fingerprint module following the manufacturer's instructions.

Recommendations

Place the unit at an accessible rack height to simplify local server management. Use high-quality KVM cabling and follow ESD precautions when connecting or servicing servers. Regularly verify firmware and accessory compatibility, and keep the detachable console section secure during maintenance to prevent accidental disconnection.
