ATEN 4Port USB 2.0 Cat 5 Extender(UP TO 100M)

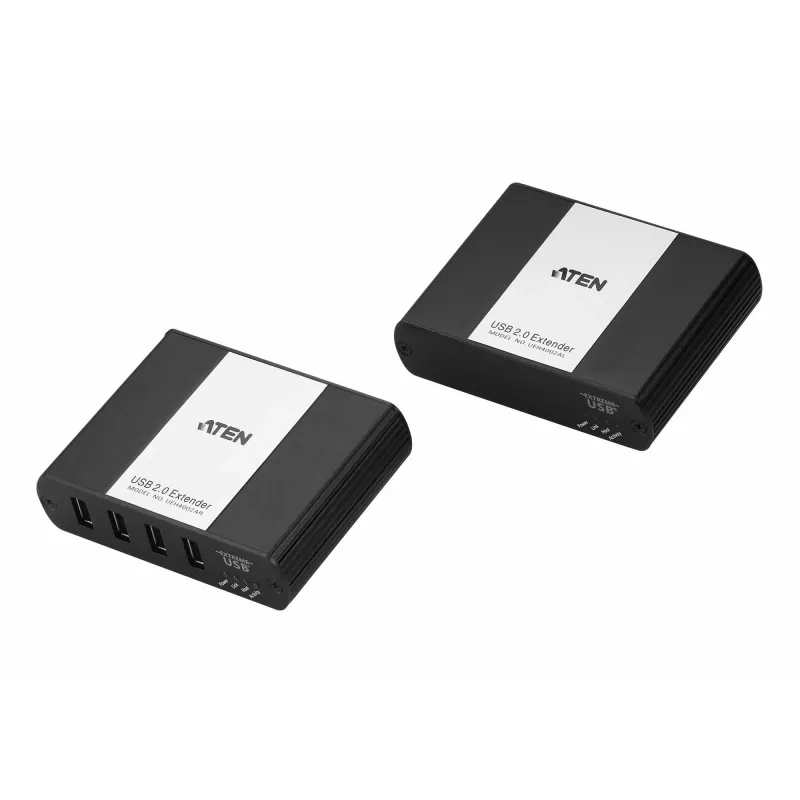

The ATEN UEH4002A 4-port USB 2.0 CAT 5 Extender uses patented ExtremeUSB® technology to extend USB peripheral connections beyond the standard 5 m cable limit. The kit includes a transmitter and receiver that work over Cat5e cable and support distances up to 100 meters while preserving full USB 2.0 functionality. Both units are compact (100 x 76 x 26 mm) and provide a stable connection for USB devices such as flash drives, keyboards, mice, webcams and interactive whiteboards.

Advantages

The UEH4002A delivers plug-and-play operation with wide operating system compatibility and an integrated four-port USB hub on the remote end, allowing up to four USB peripherals to be extended without adding another hub. It maintains the full data transfer capability of USB 2.0 over a single dedicated Cat5e link, offering a durable and high-quality connection for remote USB devices.

Suitable for

• Extending USB peripherals (keyboard, mouse, webcam) up to 100 m over Cat5e
• Connecting flash drives and interactive whiteboards at a distance from the host
• AV and KVM installations requiring remote USB device access
• Workstations, classrooms, meeting rooms and digital signage setups

Key specifications

• Model: ATEN UEH4002A
• USB standard: USB 2.0 (backward compatible)
• Ports: 4 USB ports (integrated hub)
• Cable type: Cat5e (single dedicated link)
• Maximum extension: up to 100 meters
• Dimensions (each unit): 100 x 76 x 26 mm
• Weight (each unit): 190 g
• Colours: White, Black
• MPN: UEH4002A, EAN: 4719264645938

How to use

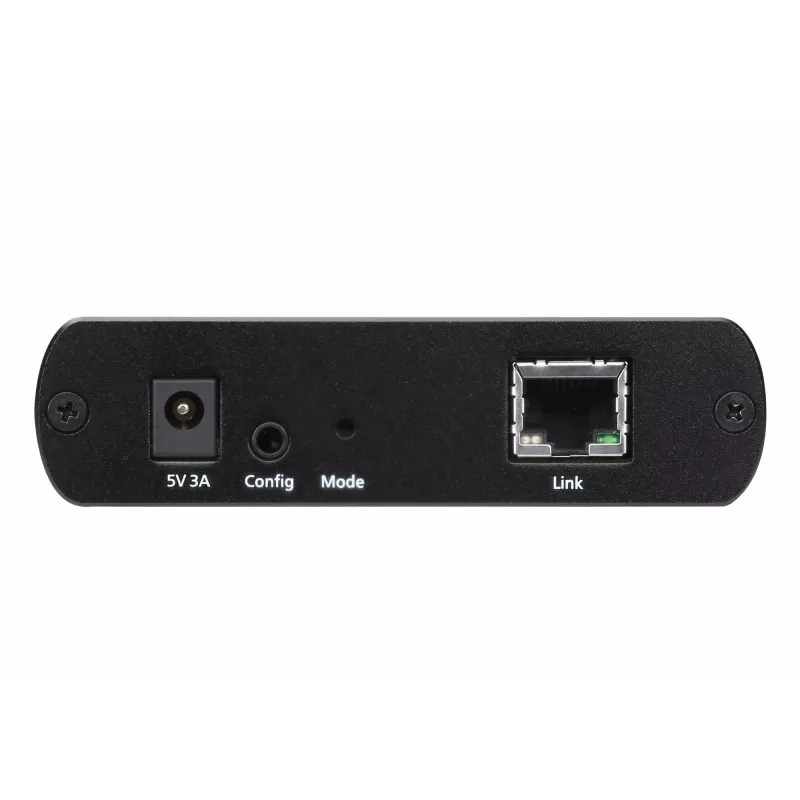

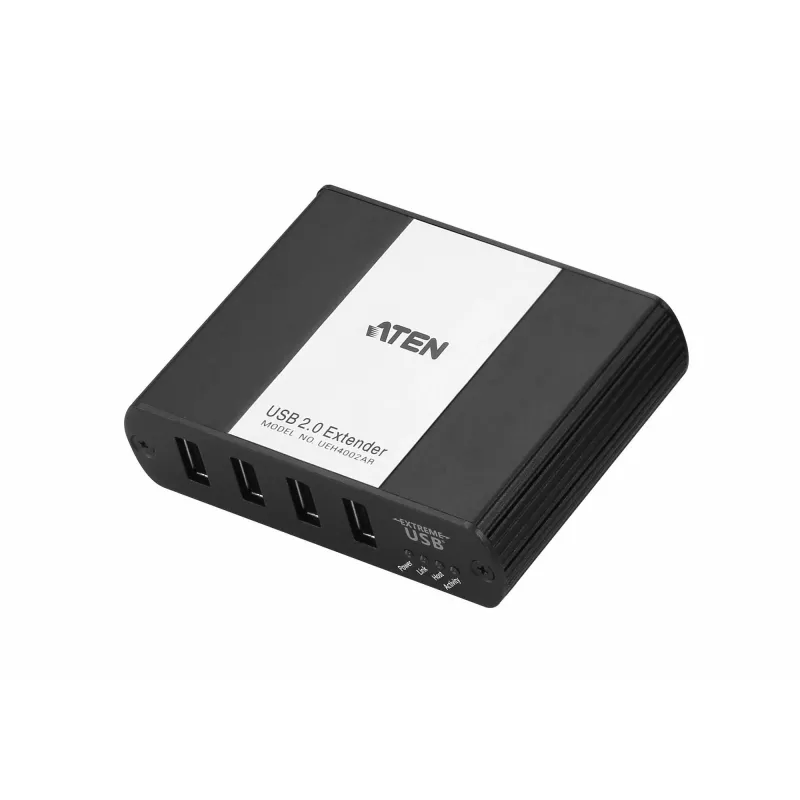

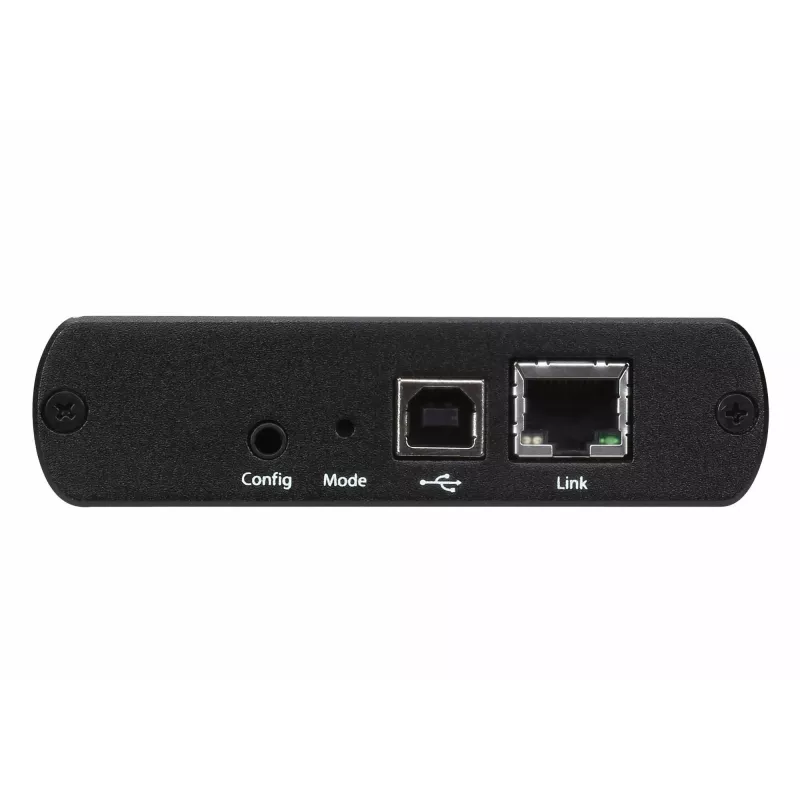

Connect the transmitter to the host computer’s USB port and plug the receiver into the remote USB devices. Link the transmitter and receiver with a single Cat5e cable up to 100 m. Power the units if required by the installation (use supplied power or as specified in the product manual). The integrated hub on the receiver supports up to four USB peripherals simultaneously and requires no additional drivers for standard operating systems.

Recommendations

Use good-quality Cat5e cable and keep cable runs away from strong electromagnetic interference sources. For optimal USB 2.0 performance, avoid excessive cable splices and follow ATEN’s installation guidelines for grounding and power where applicable.
