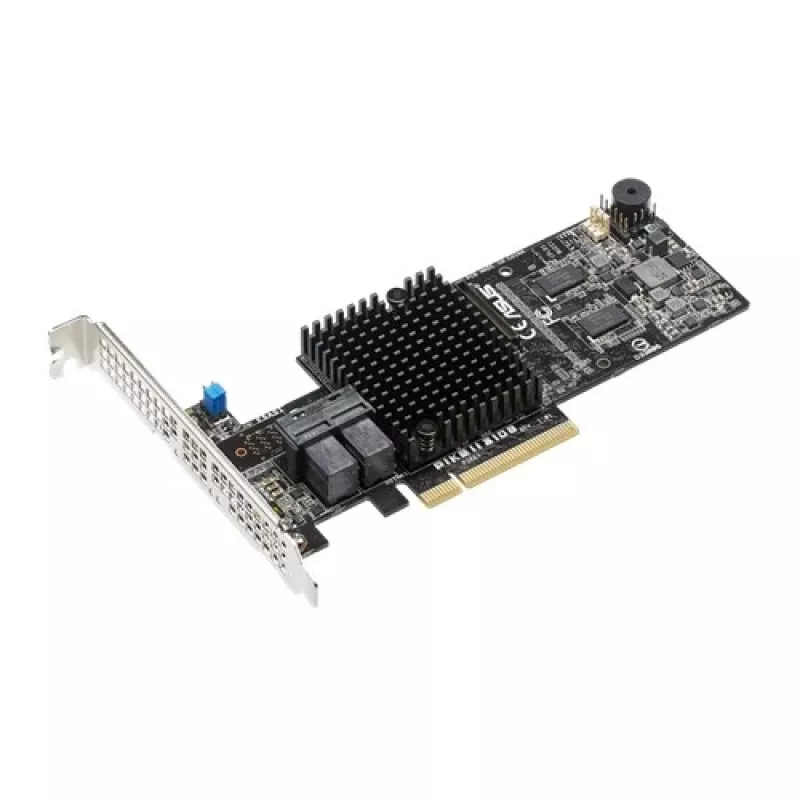

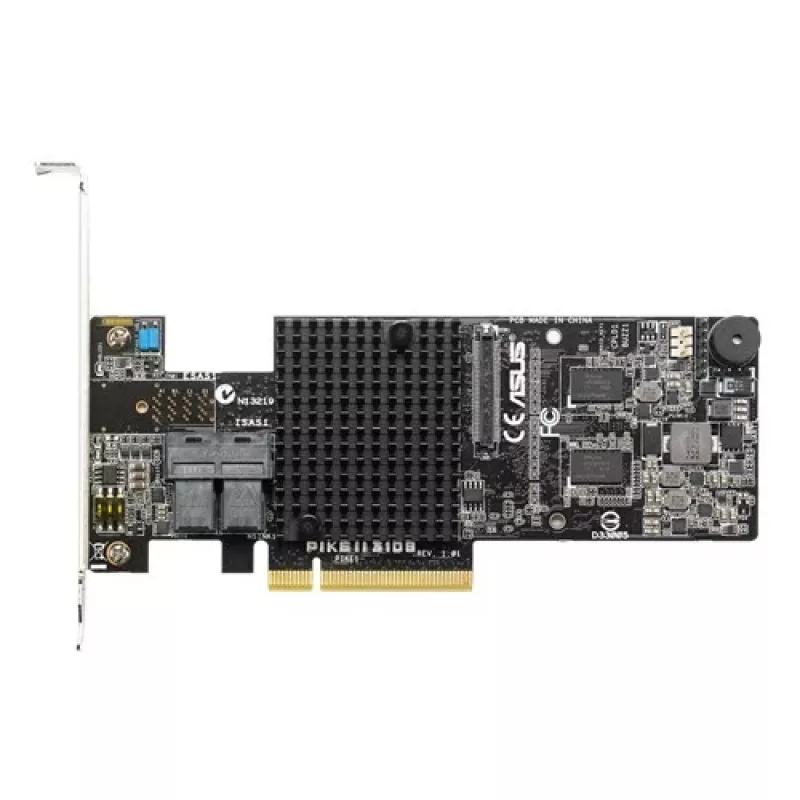

ASUS PIKE II 3108-8I/240PD/2G RAID controller PCI Express 3.0 12 Gbit/s

ASUS PIKE II 3108-8I/240PD/2G RAID controller PCI Express 3.0 12 Gbit/s
ASUS PIKE II 3108-8I/240PD/2G RAID controller PCI Express 3.0 12 Gbit/s
36 mo.
ASUS PIKE II 3108-8I/240PD/2G RAID controller PCI Express 3.0 12 Gbit/s
ASUS PIKE II 3108-8I/240PD/2G RAID controller PCI Express 3.0 12 Gbit/s
R9,289
SAS 12Gb/s Storage Solution with 8 Internal PortsASUS PIKE II 3108-8i/240PD/2G (Max. Physical Disk Qty for RAID: 240) is the latest 12Gb/s SAS and PCI-E 3.0 high reliability enterprise storage solution. It meets user needs with support for 6Gb/s SATA and 12Gb/s SAS storage and integrated RAID 0, RAI... Read More
Stock 11 Code 321123 Brand ASUS Model 90SC07P0-M0UAY0 Warranty 3 Years

Shipping & Returns

Estimated delivery Friday, October 2
You will be kept updated through our detailed tracking system
Payment options
EFTPayFastBank CardSnapScanZapperGoogle PayApple PayMobicredMoreTymePay on Arrival
SAS 12Gb/s Storage Solution with 8 Internal Ports
ASUS PIKE II 3108-8i/240PD/2G (Max. Physical Disk Qty for RAID: 240) is the latest 12Gb/s SAS and PCI-E 3.0 high reliability enterprise storage solution. It meets user needs with support for 6Gb/s SATA and 12Gb/s SAS storage and integrated RAID 0, RAID 1, RAID 10, RAID 5, RAID 50, RAID 6 and RAID 60 data protection. Just placing the PIKE card can immediately enlarge the capacity and improve the performance, making it the great upgrade option.

Storage solution with eight ports of internal 12Gb/s SAS connectivity

- PCI-E x8 interface
- Internal mini-SAS HD connectors
- Switch (for more than one card)
- HBLED1(HEARTBEAT LED): The LED shows the firmware heartbeat information.(blinking)
- DRLED1(Dirty cache LED): Write Pending(light)
- FAILLED1(Global Drive Fault LED): Drive Fault Detected(light)
- CacheVault connector

Package Content
- ASUS PIKE II 3108-8i/240PD/2G SAS RAID card
- Support DVD

System Requirement
- ASUS Server motherboard
- PCI-E Gen3 slot
- SAS or SATA hard disk drives
- Mini-SAS HD cable
- Supporting Windows® and Linux Operating systems
- Appropriate thermal solution
- Certified power supply module
- Ensure to update BIOS to the latest version before using PIKE II 3108 series on ASUS Z9 or P9 series platform

ASUS PIKE II 3108-8I/240PD/2G. Supported storage drive interfaces: SAS, Serial ATA II, Serial ATA III, Host interface: PCI Express. RAID levels: 0, 1, 5, 10, 50, 60, Data transfer rate: 12 Gbit/s, Internal memory: 2000 MB. Width: 167.6 mm, Height: 68.8 mm

Key Highlights
  • Supported storage drive interfaces: SAS, Serial ATA II, Serial ATA III
  • Host interface: PCI Express
  • RAID levels: 0, 1, 5, 10, 50, 60
  • 12 Gbit/s
Specifications
Chipset
LSI SAS 3108
Data transfer rate
12 Gbit/s
Harmonized System (HS) code
84733080
Height
68.8 mm
Host interface
PCI Express
Internal memory
2000 MB
Internal mini-SAS ports
2
PCI Express slots version
3.0
RAID levels
0, 1, 5, 10, 50, 60
Supported storage drive interfaces
SAS, Serial ATA II, Serial ATA III
Width
167.6 mm

Manual

Open Manual

Leaflet

Open Leaflet
