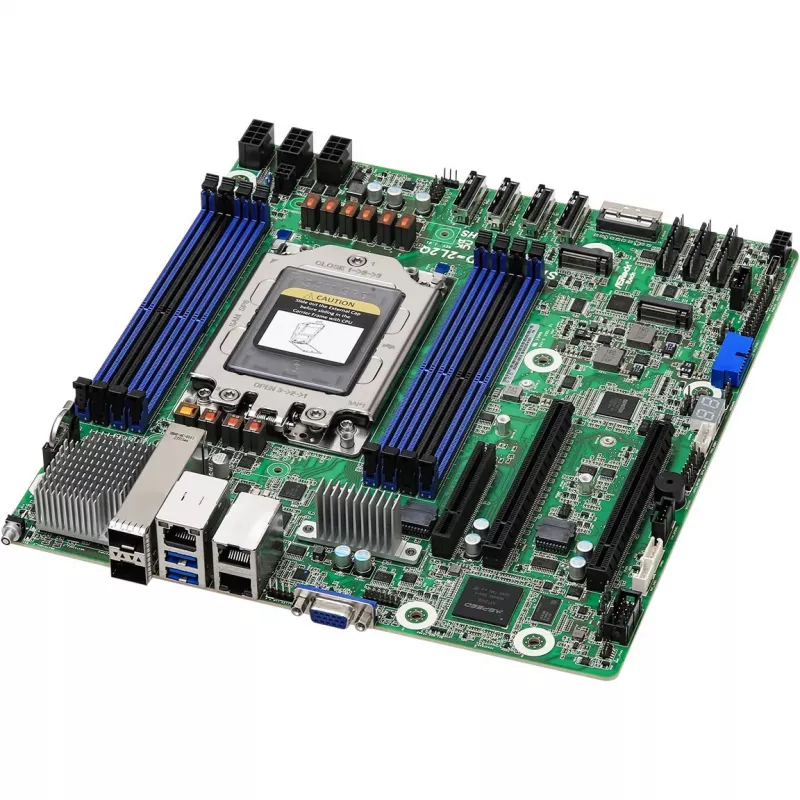

ASRock SIENAD8UD-2L2Q Motherboard Socket SP6 Micro ATX

ASRock SIENAD8UD-2L2Q Motherboard Socket SP6 Micro ATX
ASRock SIENAD8UD-2L2Q Motherboard Socket SP6 Micro ATX
ASRock SIENAD8UD-2L2Q Motherboard Socket SP6 Micro ATX
ASRock SIENAD8UD-2L2Q Motherboard Socket SP6 Micro ATX
ASRock SIENAD8UD-2L2Q Motherboard Socket SP6 Micro ATX
ASRock SIENAD8UD-2L2Q Motherboard Socket SP6 Micro ATX
ASRock SIENAD8UD-2L2Q Motherboard Socket SP6 Micro ATX
ASRock SIENAD8UD-2L2Q Motherboard Socket SP6 Micro ATX
R15,029
The ASRock SIENAD8UD-2L2Q is a Micro ATX motherboard built for the AMD Socket SP6 platform, designed to support AMD EPYC processors. It delivers robust performance for server and workstation environments with advanced memory and storage capabilities.Key features Supports AMD EPYC processors via Sock... Read More
Stock 8 Code 1396028 Brand ASROCK Model SIENAD8UD-2L2Q Warranty 2 Years

Shipping & Returns

Estimated delivery Thursday, October 1
You will be kept updated through our detailed tracking system
Payment options
EFTPayFastBank CardSnapScanZapperGoogle PayApple PayMobicredMoreTymePay on Arrival

The ASRock SIENAD8UD-2L2Q is a Micro ATX motherboard built for the AMD Socket SP6 platform, designed to support AMD EPYC processors. It delivers robust performance for server and workstation environments with advanced memory and storage capabilities.

Key features

  • Supports AMD EPYC processors via Socket SP6
  • DDR5-SDRAM memory support with DIMM slots, operating at 1.1V
  • Storage interfaces include M.2, PCI Express 5.0, and SATA III, compatible with HDDs and SSDs
  • Integrated ASPEED AST2600 graphics controller
  • Dual Ethernet connectivity with 25 Gigabit Ethernet (Broadcom BCM57414) and Gigabit Ethernet (Intel I210)
  • Micro ATX form factor for compact builds
Key Highlights
  • Small to medium rack servers and tower systems requiring a compact motherboard
  • Database servers and in-memory applications needing large DDR5 capacity
  • Network appliances and edge servers that benefit from 25 Gb Ethernet
  • Storage servers using M.2 NVMe and SATA III SSD/HDD combinations
  • Systems requiring remote management via integrated ASPEED graphics
  • Form factor: Micro ATX
  • Processor socket: Socket SP6 (for AMD EPYC processors)
  • Memory support: DDR5-SDRAM, 8 DIMM slots
  • Expansion: PCI Express 5.0 lanes for add-in cards and NVMe devices
  • Storage interfaces: M.2 slots and SATA III ports
  • Integrated management GPU: ASPEED AST2600
  • Networking: 25 Gigabit Ethernet connectivity
Specifications
12V power connector
Yes
ATX Power connector (24-pin)
Yes
Audio connector
Yes
BIOS memory size
256 Mbit
BIOS type
UEFI AMI
Chassis intrusion connector
Yes
Compatible processor series
AMD EPYC
Component for
Server
Depth
266.7 mm
Ethernet interface type
Gigabit Ethernet, 2.5 Gigabit Ethernet
Ethernet LAN
Yes
Ethernet LAN (RJ-45) ports
2
Graphics card
AST2600
Graphics card family
Aspeed
IPMI LAN (RJ-45) port
Yes
LAN controller
Intel I210
Memory slots type
DIMM
Memory voltage
1.1
Motherboard chipset family
AMD
Motherboard form factor
Micro ATX
Number of COM connectors
1
Number of M.2 (M) slots
2
Number of memory slots
8
Number of SATA III connectors
16
Operating temperature (T-T)
10 - 35
PCI Express x16 (Gen 5.x) slots
2
PCI Express x8 (Gen 5.x) slots
1
Processor manufacturer
AMD
Processor socket
Socket SP6
Storage relative humidity (H-H)
20 - 90
Storage temperature (T-T)
-40 - 70
Supported memory clock speed (max)
4800 MHz
Supported memory clock speeds
4800
Supported memory types
DDR5-SDRAM
Supported storage drive interfaces
SATA III, PCI Express 5.0, M.2
Supported storage drive types
HDD & SSD
TPM connector
Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors
2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
VGA (D-Sub) ports quantity
1
Width
243.84 mm
