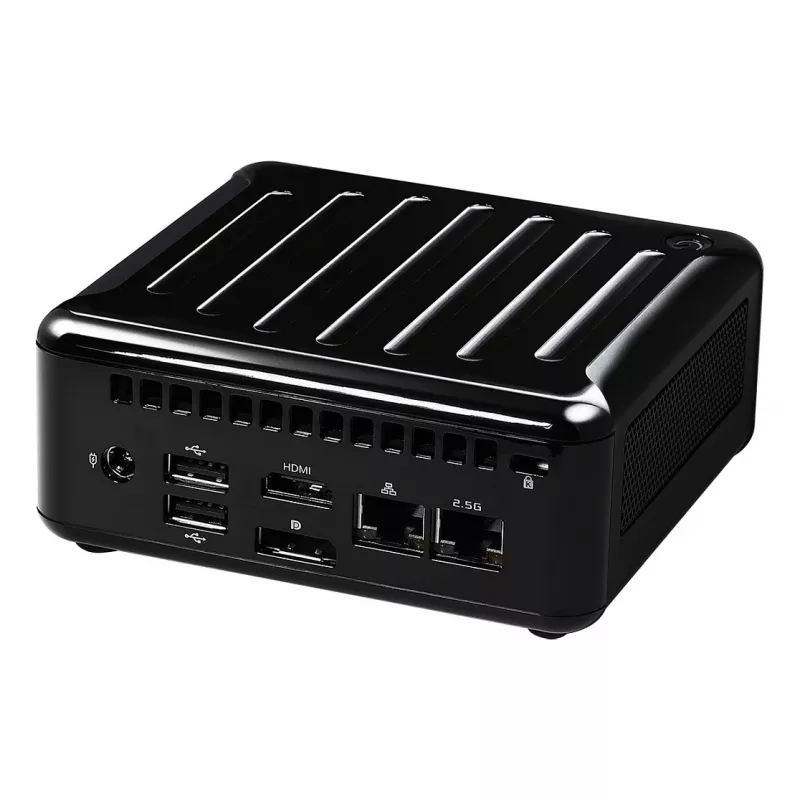

ASRock 4x4 BOX-4800U Barebone Mini PC, AMD Ryzen 7 4800U, 2x DDR4 SO-DIMM, 2x 2.5GbE, Wi-Fi 6, Black

The ASRock 4x4 BOX-4800U is a compact and powerful barebone mini PC designed for industrial and commercial applications. Powered by the AMD Ryzen 7 4800U processor with 8 cores and 16 threads, it delivers exceptional performance for multitasking, edge computing, and digital signage. Its small form factor (4x4 inch footprint) makes it ideal for space-constrained environments.

Advantages

This barebone system offers flexibility to customize memory and storage according to your needs. With dual DDR4 SO-DIMM slots supporting up to 64 GB of 3200 MHz RAM, and multiple storage options including an M.2 Key M slot and a 2.5-inch SATA bay, you can configure it for high-speed data access or large capacity. The integrated AMD Radeon Graphics (Vega 8) provides smooth 4K video output via HDMI, DisplayPort, and USB-C with DisplayPort Alt Mode. Dual 2.5 Gigabit Ethernet ports ensure fast and reliable network connectivity, while Wi-Fi 6 and Bluetooth 5.1 offer wireless flexibility.

Suitable for

• Industrial automation and control systems
• Digital signage and kiosks
• Edge computing and IoT gateways
• Thin client and virtual desktop infrastructure
• Home server or media center

Key specifications

• Processor: AMD Ryzen 7 4800U (8 cores, 16 threads, 1.8 GHz base, 4.2 GHz boost)
• Graphics: AMD Radeon Graphics (Vega 8)
• Memory: 2x DDR4 SO-DIMM slots, up to 64 GB, 3200 MHz
• Storage: 1x M.2 Key M (PCIe Gen3 x4 / SATA3), 1x 2.5-inch SATA3 bay
• Networking: 2x 2.5 Gigabit Ethernet, Wi-Fi 6 (802.11ax), Bluetooth 5.1

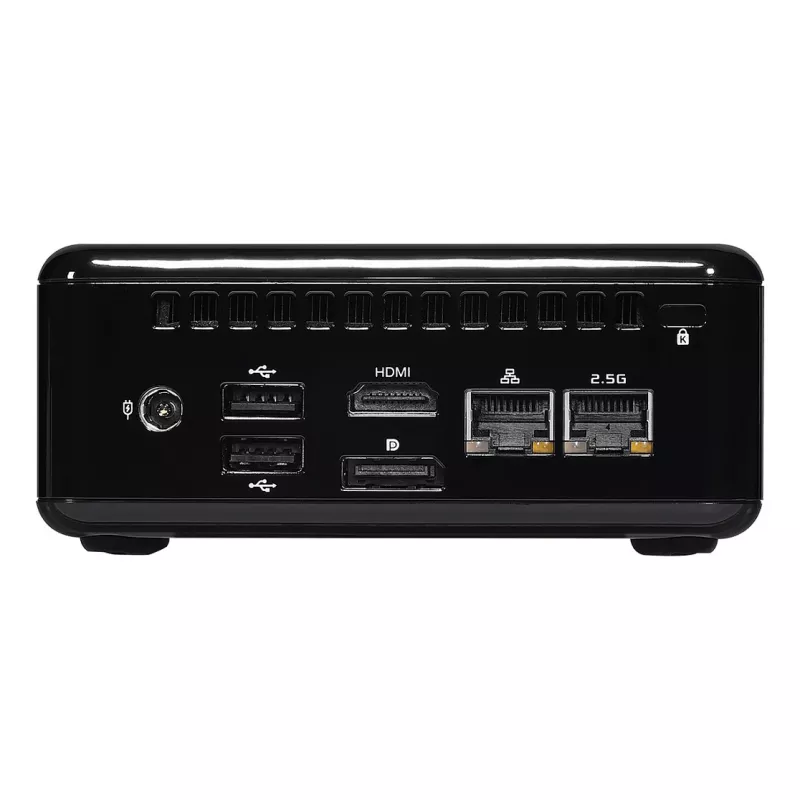

• Video Output: 1x HDMI 2.0a, 1x DisplayPort 1.2a, 2x USB-C (DP Alt Mode)

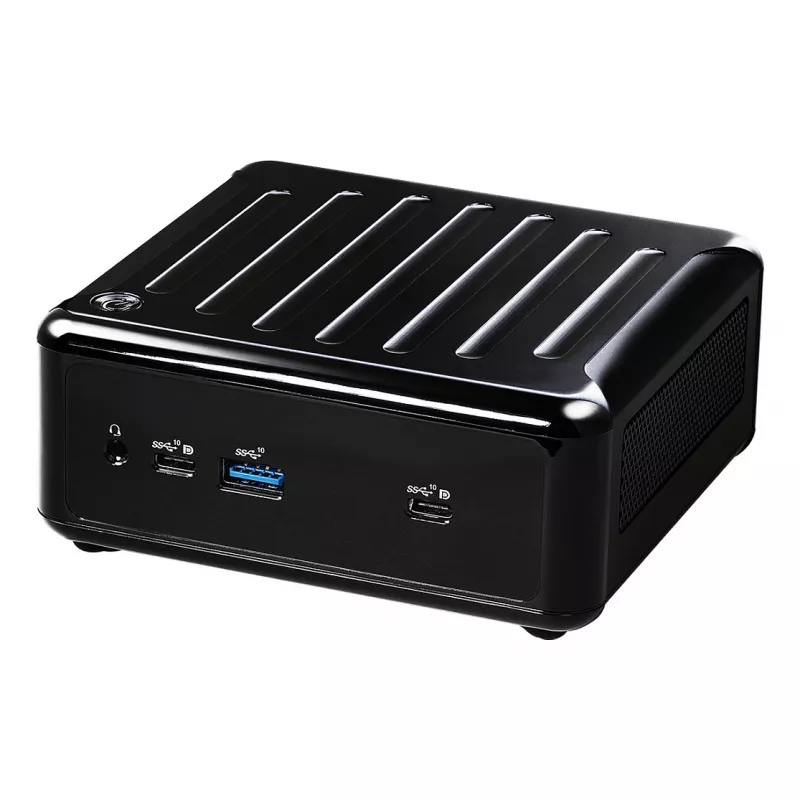

• USB Ports: 2x USB 3.2 Gen2 Type-C, 3x USB 3.2 Gen2 Type-A
• Audio: 1x 3.5mm combo jack
• Power: DC 19V input
• VESA Mount: 75x75mm, 100x100mm
• Operating System: Not included (Barebone)

Recommendations

This barebone system requires DDR4 SO-DIMM memory and an M.2 or 2.5-inch drive (not included). For optimal performance, use dual-channel memory and an NVMe SSD. Ideal for users who need a compact, reliable, and customizable computing platform.
