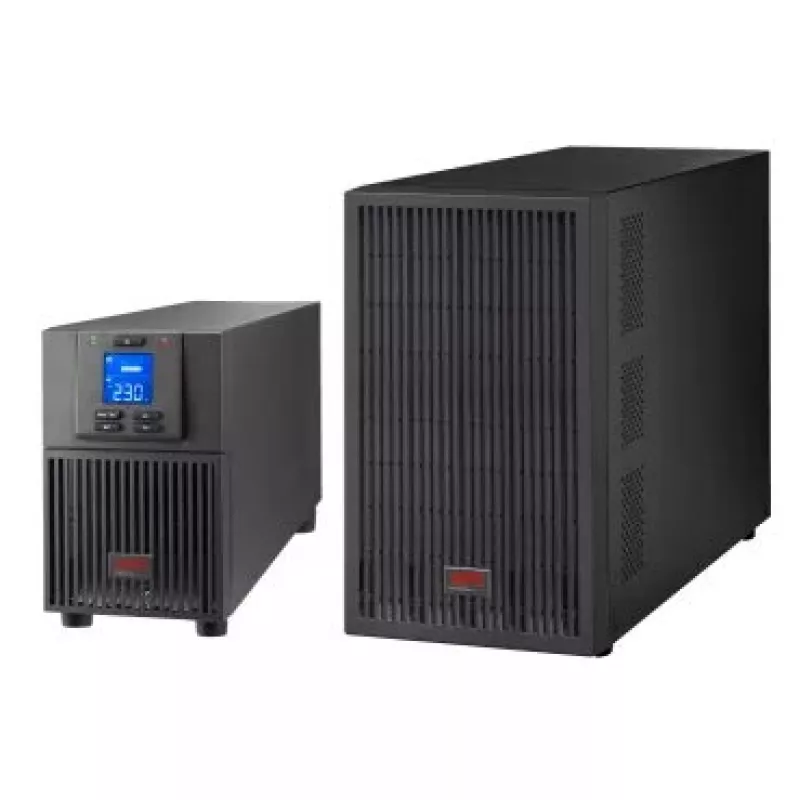

APC SRV3KIL-E UPS 3 kVA 2700 W Sine Wave Black

The APC SRV3KIL-E UPS 3 kVA 2700 W Sine Wave Black is a rack/tower compatible uninterruptible power supply designed to provide reliable backup power for critical equipment. It delivers a 2700 W continuous output with a true sine wave form, suitable for sensitive electronics and servers. The unit uses sealed lead acid batteries with a total battery voltage of 72 V, offers a recharge time of approximately 5.5 hours, and is finished in a black enclosure. With an IP20 rating and compact footprint, it is intended for indoor installation in controlled environments.

Advantages

The UPS supplies a stable sine wave output which reduces the risk of equipment malfunction compared with simulated wave outputs. Its 3 kVA output capacity and 2700 W rating support a range of mid-density server racks, network equipment and telecom devices. Sealed lead acid battery technology provides proven, maintenance-limited energy storage and a relatively short recharge interval. The IP20 enclosure and the product dimensions make the unit suitable for standard data centre or equipment room installations where space and airflow are managed.

Suitable for

• Small to medium server racks and network switches
• Telecom and VoIP systems requiring clean sine wave power
• Storage arrays and SAN controllers in office or data-room environments
• Workstations and critical office equipment that need uninterrupted power

Key specifications

• Output power: 2700 W
• Output power capacity: 3 kVA
• Output waveform: True sine wave
• Battery type: Sealed lead acid
• Battery voltage: 72 V
• Recharge time: 5.5 hours (typical)
• Colour: Black
• Dimensions (W x D x H): 425 mm x 425 mm x 336 mm
• Weight: 46.2 kg
• Enclosure protection rating: IP20

How to use

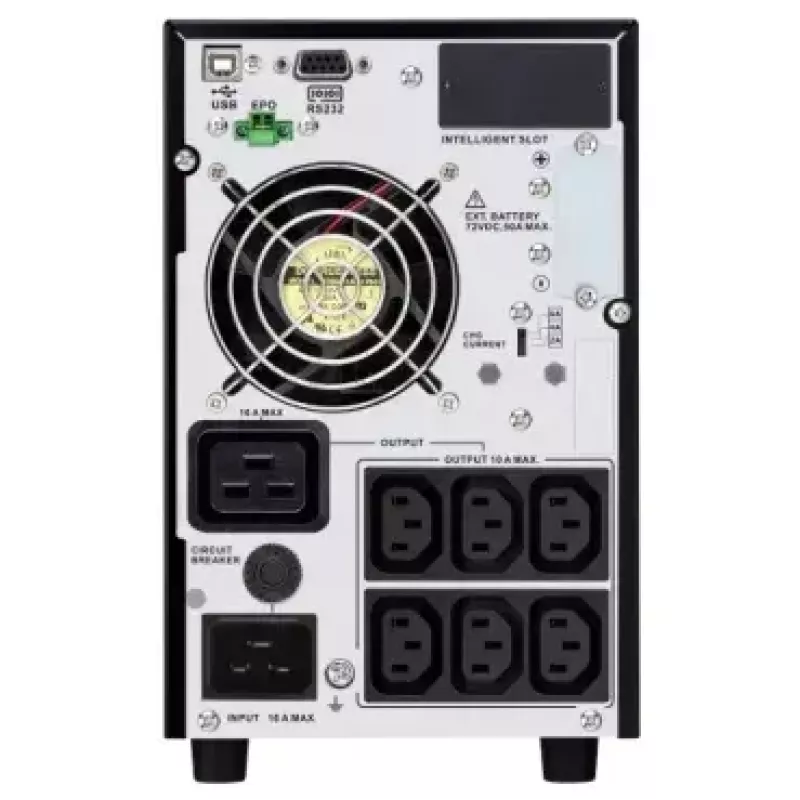

Install the APC SRV3KIL-E in a suitable indoor location with adequate ventilation and controlled ambient conditions. Connect the input to a compatible mains supply using the specified C20 power connection and verify grounding. Plug critical loads into the UPS output outlets and power on the unit following the manufacturer’s start-up procedure. Monitor battery status and load indicators on the unit or via compatible management software. Replace batteries according to the battery health indicators or maintenance schedule to ensure continued backup capability.

Recommendations

Place the UPS on a stable surface or mount in a rack designed for equipment of its weight; ensure at least the manufacturer-recommended clearance for airflow. Regularly check the battery recharge time and condition, and perform periodic tests under load to confirm the UPS will support required equipment during power interruptions.
